MODEL TCM-X200 0203-002 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 229 MC-3 20 1 630 098 2046 ME C H P AR TS( FR AME) 3 20 2 630 098 2053 ME C H P AR TS( FR AME) 1 20 3 630 098 2060 ME C H P AR TS( FR AME) 1 20 4 …
MODEL TCM-X200
0103-001
228
ࡈࠖ࠳ࠠࡖ࠶ࠫࠞࡃ Feeder Carriage Cover

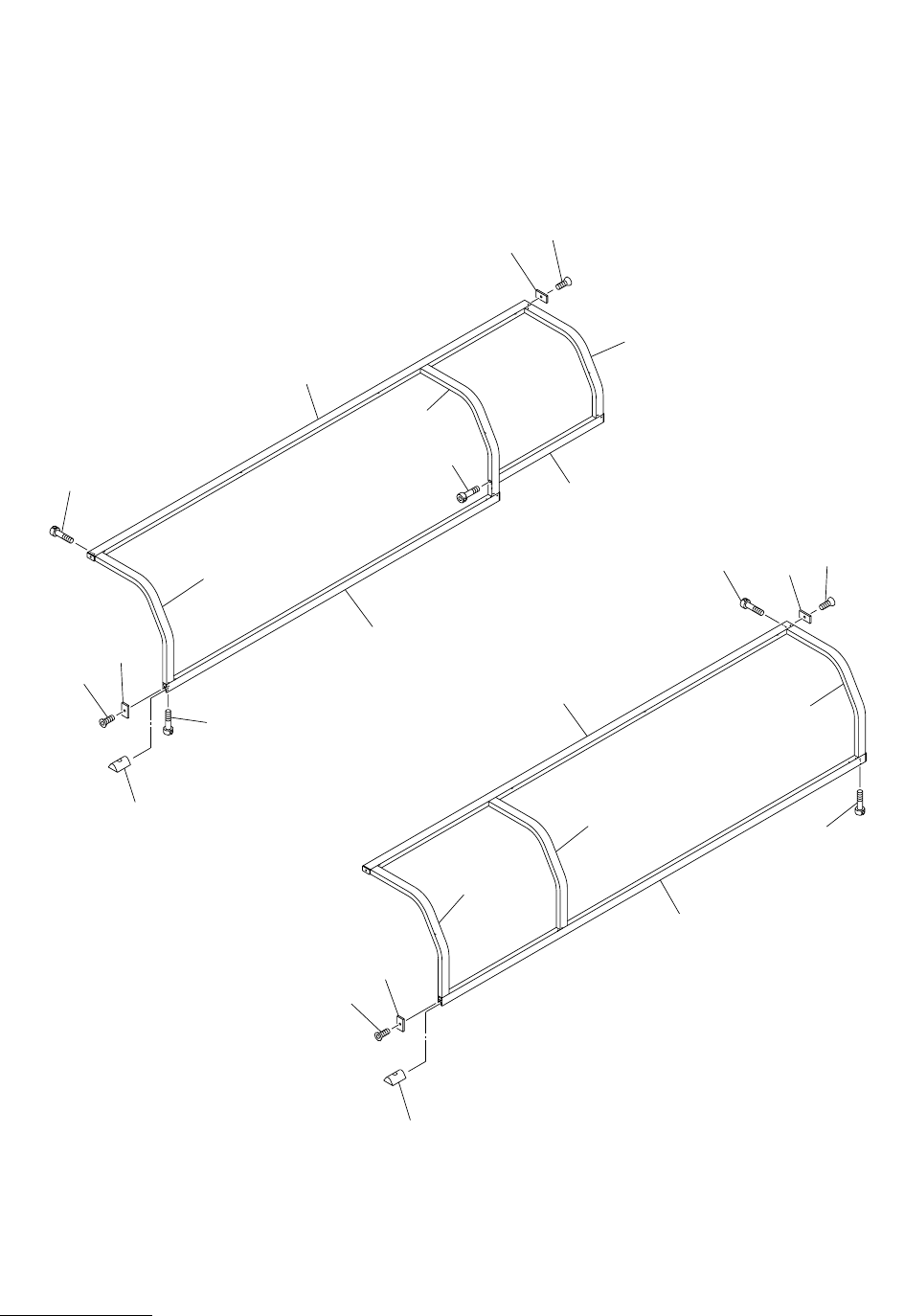

Fig. MC-3 ೨ࠞࡃࡈࡓ Front Side Cover Frame
Fig.MC-3
201
285
205
206
266
291
266
291
285
207
201
202
266
291
281
203
284
208
201
285
266
291
285
281
204
209
TCM-X200
TCM-X300
4797A
4797L
MODEL TCM-X200
0203-002
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
229
MC-3
201 630 098 2046 MECH PARTS(FRAME) 3
202 630 098 2053 MECH PARTS(FRAME) 1
203 630 098 2060 MECH PARTS(FRAME) 1
204 630 098 2077 MECH PARTS(FRAME) 1
205 630 098 2084 MECH PARTS(FRAME) 1
206 630 098 2091 MECH PARTS(FRAME) 1
207 630 098 2107 MECH PARTS(FRAME) 1
208 630 098 2114 MECH PARTS(FRAME) 1
209 630 098 2121 MECH PARTS(FRAME) 1
266 630 098 1926 MECH PARTS(CAP) 9
281 630 103 4256 NUT 14
284 630 000 7787 BOLT,HEX-SCT 1
285 630 000 7794 BOLT,HEX-SCT 12
291 630 109 4298 BOLT 9
MODEL TCM-X200
0203-002
230
ࡈࠖ࠳ࠠࡖ࠶ࠫࠞࡃ Feeder Carriage Cover
Fig. MC-4 ࠟࠬ࠳ࡦࡄ Gas Spring
Fig.MC-4
A
B
C
B
C
B
E
C
B
C
B
C
F
DETAIL "C"
DETAIL "B"
DETAIL "A"
DETAIL "F"
G
D
TCM-X200-002
4797A-002
326
394
304
324
392
302
303
301
305
381
396
399
381
302
303
301
305
304
330
392
381
332
394
396
399
381
DETAIL "E"
DETAIL "G"
303
302
305
301
304
323
392
381
381
399
396
394
325
302
303
304
322
392
396
381
381
394
399
301
305
326
321
325
305
302
301
304
303
396
394
381
392
399
381
333
303
394
396
399
301
304
392
302
381
381
335
329
303
394
394
396
396
399
399
301
304
392
302
381
See Fig.MC-2
Key No.104
381
381
331
DETAIL "D"
381
336
302
393
366
339
390
303
392
304
334
301
