2 9 Main Box (YTF A TS) Control KV7-080306 1 2 1 3 YTF A T S No. Part No. Part Name Q'ty Remarks Date of change Compati. Rank Level 1-1 KM5-M5840-04X SER V O BOARD ASSY 1 (2001/11/5) OK / 1-2 KM5-M5840-05X SER V O B…
1
9

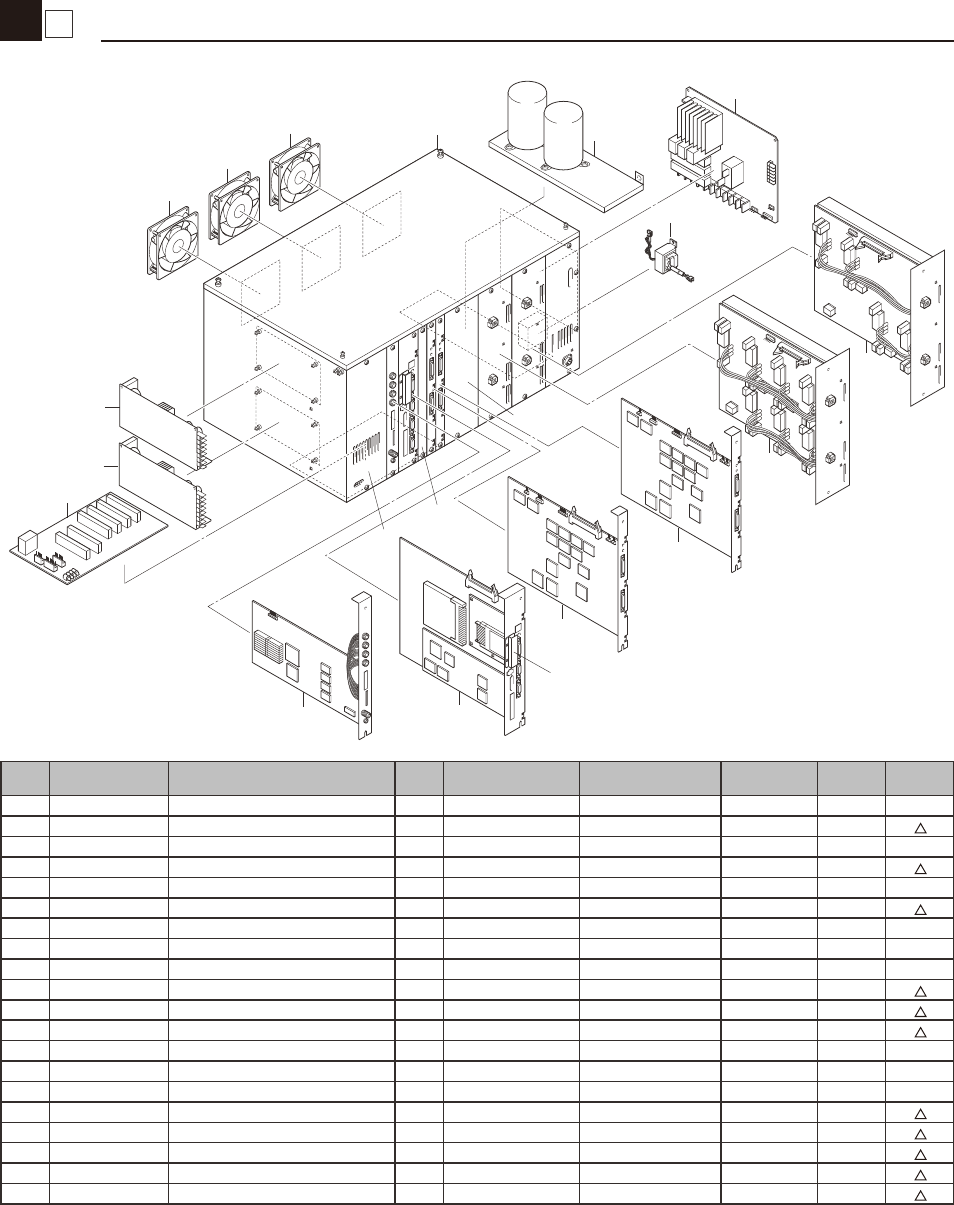

Main Box
9 Control
KV7-080306
7
3
3
12
8
8
15
12
12
1
2
14
13
4
6
5
11
9
10
16
No. Part No. Part Name Q'ty Remarks Date of change Compati.
Rank Level
1 KV1-M4110-10X BOX ASSY.C/R 1 (2001/1/15) OK /
2 KM5-M4510-20X MOTHER BOARD ASSY. 1 B
3-1 KM5-M5840-04X SERVO BOARD ASSY 1 (2001/11/5) OK /
3-2 KM5-M5840-05X SERVO BOARD ASSY 1 (2007/1/12) NG B
4-1 KM5-M4200-03X SYSTEM UNIT ASSY 1 (2000/3/28) OK /
4-2 KM5-M4200-10X SYSTEM UNIT ASSY 1 Without Disk (2000/12/29) NG B
5-1 KJ0-M5810-L4X DRIVER BOARD ASSY 1 (2001/2/8) OK /
5-2 KJ0-M5810-L5X DRIVER BOARD ASSY 1 (2007/1/12) NG /
6-1 KJ0-M5810-K4X DRIVER BOARD ASSY 1 (2001/2/8) OK /
6-2 KJ0-M5810-K5X DRIVER BOARD ASSY 1 (2007/1/12) NG B
7 KM5-M441H-03X VISION BOARD ASSY 1 (2000/3/2) OK B
8 KM5-M5880-11X D.POWER ASSY. 1 B
9 KJ0-M4134-10X PANEL NO SERVO 1 /
10 KJ0-M4132-10X PANEL ,NO DRIVER 1 /
11 KM5-M4138-10X PANEL LEFT 2 1 /
12 KJ1-M4185-10X FAN MOTOR ASSY 3 B
13 KV1-M5303-01X SW POWER DC5 1 (2000/9/4) OK B
14 KV1-M5303-11X SW POWER DC12 1 (2000/9/4) OK B
15 KL0-M53E2-00X TRANS 1 ASSY KL0 1 B
16 KGN-M4255-105 FLASH DISK+ADAPTER 1 (2012/1/10) OK B
2
9
Main Box (YTF ATS)
Control
KV7-080306
1
2
1
3
YTF
ATS
No. Part No. Part Name Q'ty Remarks Date of change Compati. Rank Level
1-1 KM5-M5840-04X SERVO BOARD ASSY 1 (2001/11/5) OK /
1-2 KM5-M5840-05X SERVO BOARD ASSY 1 (2007/1/12) NG B
2-1 KJ0-M5810-H4X DRIVER BOARD ASSY 1 for YTF only (2001/2/8) OK /
2-2 KJ0-M5810-H5X DRIVER BOARD ASSY 1 for YTF only (2007/1/12) NG B
3-1 KJ0-M5810-G4X DRIVER BOARD ASSY 1 for ATS only (2001/2/8) OK /
3-2 KJ0-M5810-G5X DRIVER BOARD ASSY 1 for ATS only (2007/1/12) NG B
1
10
Moniter,etc.
10 Exterior,etc
KV7-1103
1
4
3.10
5
2
6
7
8
9
12
17
13
14
15
16
11
No. Part No. Part Name Q'ty Remarks Date of change Compati. Rank Level
4 KH1-M5180-20X PROG.UNIT ASSY 1 YPU B
5 KH4-M668R-00X HNS,COVER SW 2 Name change (2004/2/13) OK B
6
KV7-M4899-10X LIGHT 1 ASSY (L=300) 1 STD /
KV7-M4899-20X LIGHT 1 ASSY (L=350) 1 /
KV7-M4899-30X LIGHT 1 ASSY (L=450) 1 /
KV7-M4899-40X LIGHT 1 ASSY (L=550) 1 /
KV7-M4899-50X LIGHT 1 ASSY (L=650) 1 /
KV7-M4899-60X LIGHT 1 ASSY (L=750) 1 /
7 KV7-M4887-00X LED UNIT R-R 1 A
8 KV7-M4887-10X LED UNIT Y-Y 1 A
9 KV7-M4887-20X LED UNIT G-G 1 A
11-1 KV8-M4570-01X I/O HEAD UNIT ASSY. 1 Service information No.230 reference /
11-2 KV8-M4570-02X I/O HEAD UNIT ASSY. 1 new & old machine all ok (2010/2/1) OK B
12 KM5-M4580-03X I/O CONV UNIT ASSY 2 (2009/10/8) OK B
13 KGA-M4500-10X CONNECTION BOARD KIT 1 (2001/3/13) OK B
14 KH4-M6441-02X SPEED CONTROLLER,2 3 200V25W (2002/4/11) OK /
16 KV8-M6474-00X LED DRIVER BOARD ASSY1 1 B
17 KK6-M9802-10X SENSOR. A. 1 Floodlight and receve B
