- 125 -

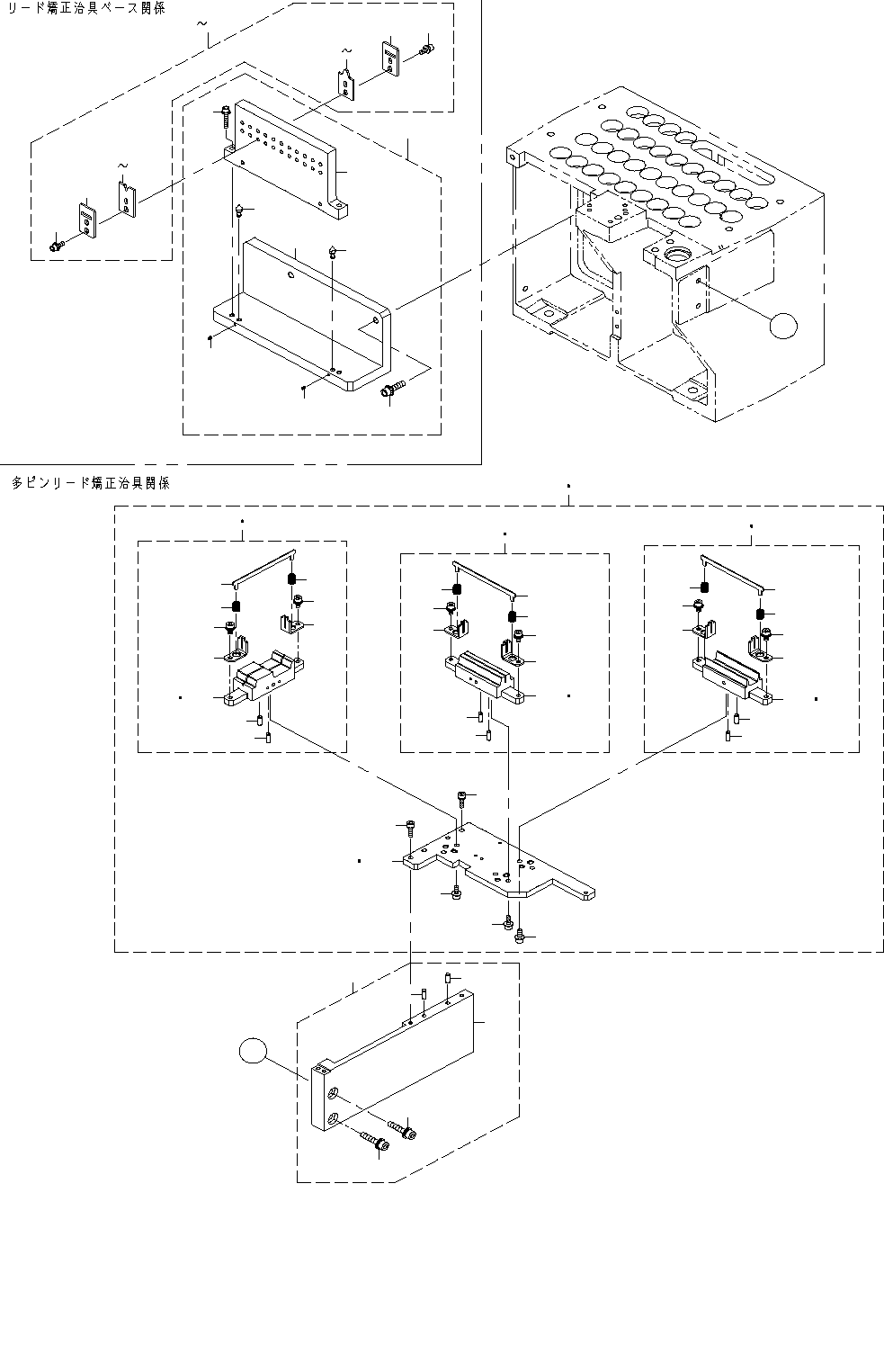

63.LEAD CORRECT JIG BASE COMPONENTS & MOST LED COR JIG BASE ASM COMPONENTS
リード矯正治具ベース・多ピンリード矯正治具ベース関係
２
３
８
５
４
６
７
８
１
３３
２５
３２
３４
９ １６
１７ ２４
３３
３４
３６
３６
３７
３７
３８
３５
４１ ４２
４４
４４
４３
４７ ４８
４９
５０
５１
５２
５３
５０
５２
５１
５３
４５ ４６
５６ ５７
５８
５９
６０
６１
６２
６２
６０
６１
５９
５４ ５５
６５ ６６
６７
６８
６９
７０
７１
７１
６９
７０
６８
６３ ６４
４３
４３
３９ ４０
Ａ
Ａ
- 126 -
NOTE( 注記 ) #01....FOR MOST LEAD COR JIG 001 ASM 多ピンリード矯正治具 ００１組用
#02....FOR MOST LEAD COR JIG_002 ASM 多ピンリード矯正治具 ００２組用
#03....COMMON PARTS 共通部品
REF.NO NOTE PART NO D E S C R I P T I O N
品 名
Qty
1 401-76228 JM20_LEAD_CORRECT_JIG_BASE_ASSY
ＪＭ２０＿リード矯正冶具ベース組（メカ）
1
2 401-66650 JIG_FIX_BASE
矯正治具固定ベース
(1)
3 SL-6041692-TN SCREW
座金付き六角穴ボルト Ｍ４ Ｌ＝１６
(2)
4 401-65098 LEAD_CORRECT_JIG_ATTACH_BLOCK
リード矯正冶具取付ベース
(1)
5 SL-6031692-TN SCREW
座金付き六角穴ボルト
(2)
6 401-56189 LOCATE_PIN_B
位置決めピンＢ
(1)
7 401-56188 LOCATE_PIN_A
位置決めピンＡ
(1)
8 SM-8020302-TP SCREW M2X0.4 L=3
止めねじ Ｍ２Ｘ０．４ Ｌ＝３
(2)
9 401-76201 LEAD_CORRECT_JIG_001_ASSY
リード矯正冶具＿００１組＿ＬＰ２．５ φ０．５
1
10 401-76202 LEAD_CORRECT_JIG_002_ASSY
リード矯正冶具＿００２組＿ＬＰ３．５ φ０．５
1
11 401-76203 LEAD_CORRECT_JIG_003_ASSY
リード矯正冶具＿００３組＿ＬＰ５．０ φ０．５５
1
12 401-76204 LEAD_CORRECT_JIG_004_ASSY
リード矯正冶具＿００４組＿ＬＰ５．０ φ０．８
1
13 401-76205 LEAD_CORRECT_JIG_005_ASSY
リード矯正冶具＿００５組＿ＬＰ７．５ φ０．６
1
14 401-76206 LEAD_CORRECT_JIG_006_ASSY
リード矯正冶具＿００６組＿ＬＰ７．５ φ０．8
1
15 401-76207 LEAD_CORRECT_JIG_007_ASSY
リード矯正冶具＿００７組＿ＬＰ１０．０ φ０．6
1
16 401-76208 LEAD_CORRECT_JIG_008_ASSY
リード矯正冶具＿００８組＿ＬＰ１０．０ φ０．8
1
17 401-76209 EXTENED_LEAD_CORRECT_JIG_001_T15
リード拡大矯正治具＿００１＿ｔ１５＿ＬＰ２．５ φ０．５
(1)
18 401-76211 EXTENED_LEAD_CORRECT_JIG_002_T15
リード拡大矯正治具＿００２＿ｔ１５＿ＬＰ３．５ φ０．５
(1)
19 401-76213 EXTENED_LEAD_CORRECT_JIG_003_T15
リード拡大矯正治具＿００３＿ｔ１５＿ＬＰ５．０ φ０．５５
(1)
20 401-76215 EXTENED_LEAD_CORRECT_JIG_004_T15
リード拡大矯正治具＿００４＿ｔ１５＿ＬＰ５．０ φ０．8
(1)
21 401-76217 EXTENED_LEAD_CORRECT_JIG_005_T15
リード拡大矯正治具＿００５＿ｔ１５＿ＬＰ７．５ φ０．6
(1)
22 401-76219 EXTENED_LEAD_CORRECT_JIG_006_T15
リード拡大矯正治具＿００６＿ｔ１５＿ＬＰ７．５ φ０．8
(1)
23 401-76221 EXTENED_LEAD_CORRECT_JIG_007_T15
リード拡大矯正治具＿００７＿ｔ１５＿ＬＰ１０．０ φ０．6
(1)
24 401-76223 EXTENED_LEAD_CORRECT_JIG_008_T15
リード拡大矯正治具＿００８＿ｔ１５＿ＬＰ１０．０ φ０．8
(1)
25 401-76210 SHRINK_LEAD_CORRECT_JIG_001_T15
リード縮小矯正治具＿００１＿ｔ１５＿ＬＰ２．５ φ０．５
(1)
26 401-76212 SHRINK_LEAD_CORRECT_JIG_002_T15
リード縮小矯正治具＿００２＿ｔ１５＿ＬＰ３．５ φ０．５
(1)
27 401-76214 SHRINK_LEAD_CORRECT_JIG_003_T15
リード縮小矯正治具＿００３＿ｔ１５＿ＬＰ５．０ φ０．５５
(1)
28 401-76216 SHRINK_LEAD_CORRECT_JIG_004_T15
リード縮小矯正治具＿００４＿ｔ１５＿ＬＰ５．０ φ０．8
(1)
29 401-76218 SHRINK_LEAD_CORRECT_JIG_005_T15
リード縮小矯正治具＿００５＿ｔ１５＿ＬＰ７．５ φ０．6
(1)
30 401-76220 SHRINK_LEAD_CORRECT_JIG_006_T15
リード縮小矯正治具＿００６＿ｔ１５＿ＬＰ７．５ φ０．８
(1)
31 401-76222 SHRINK_LEAD_CORRECT_JIG_007_T15
リード縮小矯正治具＿００７＿ｔ１５＿ＬＰ１０．０ φ０．６
(1)
32 401-76224 SHRINK_LEAD_CORRECT_JIG_008_T15
リード縮小矯正治具＿００８＿ｔ１５＿ＬＰ１０．０ φ０．８
(1)
33 401-65107 LEAD_CORRECT_JIG_CLAMP_PLATE
リード矯正治具クランププレート
(2)
34 SL-6030892-TN SCREW M3 L=8
座金付き六角穴ボルト Ｍ３ Ｌ＝８
(4)
35 402-55028 JM20_MOST_LEAD_COR_JIG_BASE_ASM
ＪＭ２０多ピンリード矯正治具ベース組
1
36 PH-0300082-C0 PARALLEL PIN TYPE B 3X8
平行ピン Ｂ種 ３Ｘ８
(2)
37 SL-6042092-TN SCREW M4 L=20
座金付き六角穴ボルト Ｍ４ Ｌ＝２０
(2)
38 402-54975 ATC_BASE_BLOCK
ＡＴＣベースブロック
(1)
39
#01
402-55029 JM20_MOST_LEAD_COR_JIG_001_ASM
ＪＭ２０多ピンリード矯正治具＿００１組
1
40
#02
402-55030 JM20_MOST_LEAD_COR_JIG_002_ASM
ＪＭ２０多ピンリード矯正治具＿００２組
1
41
#01
402-55049 ATC_BASE_BRKT_001
ＡＴＣベースブラケット＿００１
(1)
42
#02
402-54976 ATC_BASE_BRKT
ＡＴＣベースブラケット
(1)
43 SL-6030892-TN SCREW M3 L=8
座金付き六角穴ボルト Ｍ３ Ｌ＝８
(6)
44 SL-6031042-TN SCREW M3 L=10
座金付き六角穴ボルト Ｍ３ Ｌ＝１０
(2)
45
#01
402-55064 MOST_LEAD_COR_JIG_001_P18.5
多ピンリード矯正治具＿００１＿Ｐ１８．５
(1)
46
#02
402-55067 MOST_LEAD_COR_JIG_002_P2.5
多ピンリード矯正治具＿００２＿Ｐ２．５
(1)
47
#01
402-54988 JIG_X_18.5
治具Ｘ１８．５
(1)
48
#02
402-54983 JIG_X_2_5MM
治具Ｘ＿２．５ｍｍ
(1)
49
#03
402-54982 SPRING_PLATE
ばねプレート
(1)
50
#03
402-54981 JIG_SUPPORT_SPRING
治具サポートばね
(2)
51
#03
402-54980 SPRING_BRKT
ばねブラケット
(2)
52
#03
SL-6030692-TN SCREW M3 L=6
座金付き六角穴ボルト Ｍ３ Ｌ＝６
(2)
53
#03
PH-0300082-C0 PARALLEL PIN TYPE B 3X8
平行ピン Ｂ種 ３Ｘ８
(2)
54
#01
402-55062 MOST_LEAD_COR_JIG_WIDE_001_P10
多ピンリード矯正治具＿広＿００１＿Ｐ１０
(1)
55
#02
402-55065 MOST_LEAD_COR_JIG_WID_002_P2.5
多ピンリード矯正治具＿００２＿Ｐ２．５＿広
(1)
56
#01
402-54986 JIG_Y_10MM_WIDE
治具Ｙ１０ＭＭ＿広
(1)
57
#02
402-54984 JIG_Y_2.5MM_WIDE
治具Ｙ＿２．５ｍｍ＿広
(1)
58
#03
402-54982 SPRING_PLATE
ばねプレート
(1)
59
#03
402-54980 SPRING_BRKT
ばねブラケット
(2)
60
#03
402-54981 JIG_SUPPORT_SPRING
治具サポートばね
(2)
61
#03
SL-6030692-TN SCREW M3 L=6
座金付き六角穴ボルト Ｍ３ Ｌ＝６
(2)
62
#03
PH-0300082-C0 PARALLEL PIN TYPE B 3X8
平行ピン Ｂ種 ３Ｘ８
(2)
63
#01
402-55063 MOST_LEAD_COR_JIG_NAR_001_P10
多ピンリード矯正治具＿狭＿００１＿Ｐ１０
(1)
64
#02
402-55066 MOST_LEAD_COR_JIG_NOR_002_P2.5
多ピンリード矯正治具＿００２＿Ｐ２．５＿狭
(1)
65
#01
402-54987 JIG_Y_10MM_NARROW
治具Ｙ１０ｍｍ＿狭
(1)
66
#02
402-54985 JIG_Y_2.5MM_NARROW
治具Ｙ＿２．５ｍｍ＿狭
(1)
67
#03
402-54982 SPRING_PLATE
ばねプレート
(1)
68
#03
402-54980 SPRING_BRKT
ばねブラケット
(2)
69
#03
402-54981 JIG_SUPPORT_SPRING
治具サポートばね
(2)
70
#03
SL-6030692-TN SCREW M3 L=6
座金付き六角穴ボルト Ｍ３ Ｌ＝６
(2)
71
#03
PH-0300082-C0 PARALLEL PIN TYPE B 3X8
平行ピン Ｂ種 ３Ｘ８
(2)
- 127 -
64.SYSTEM DIAGRAM(1)
ＳＹＳＴＥＭ ＤＩＡＧＲＡＭ（１）
1-4C
6-4B
1-1A
1-4C
2-4B
2-5B
CN013
CN037
CN014
CNP1
CN37
ZTP02
ZTB SERVO
AMP(1/3)
MR-MD200-KW013
ZTACNP1
ZTA SERVO
AMP(1/3)
MR-MD200-KW013
CN14
XY BEAR CABLE
(1/3)
ZTP01
CN13
ZTACNP1
CNP1
CN017CN017
FAN7
[BASE2]
FAN6
FANFAN
FAN2FAN1
FAN
FAN
FAN5FAN4FAN3
[BASE1]
FAN
FAN
FAN
CN064CN064
PUMP
PUMP
R6E
FG
VACUUM PUMP
PWR PUMP
CN31CN531
2-2A
BASE PCB(1/5)
CN068PWR068
CN13
XYD13
O
W
O
V
O
R5E
R4E
TF1
1.
200V Y 400V Y
1
0
0
0
U
W
V
TF1
0
0
0
U
W
V
COM-A
MI FEEDER
4-1C
F16E
F3E
F2E
F1E
R3E
R1E
R2E
IN
IN
5-1A
RS232C BOARD
(2/4)
COM1
SIO1
3-3B
1-2C
CHECK
BATTERY OPTION
RS-232C
IP-X5
POSITION
CPU
IO-20
BATTERY
ATX-POWER(1/3)
8
7
6
5
4
3
2
2-1D
2-3A
1-1C
1
CONTROL UNIT
CPCI BACK BOARD
AC IN
MAIN SW
PS-ON
6-1C
CN251
PWR063CN063
ATX-13
TF1
200V
(6A)
100V
(14A)
CN04A
CN04A
2-4B
2-4A
2-4A
MTS PWR(L)
POWER ON LIGHT
CN001
CN06
CN04B
CN04B
34V
(6
8A)
CN03
CN03
CN01
CN01
CN11
XYD11
YL SERVO
AMP(1/2)
MR-J4-200B-KM012
E
CNP2
CNP1
YR SERVO
AMP(1/2)
MR-J4-200B-KM012
E
CNP2
CNP1
X SERVO
AMP(1/2)
MR-J4-70B-KM012
E
CNP2
CNP1
CN12
XYD12
NFB
200V
(12A)
U
FG
POWER UNIT(1/8)
INPUT
PE
FG
2-1D
MAIN SW
W
V
U
1-4C
CN031 CN031
2-1C
IO-20 PCB(2/6)
CN4 IO-CN4
380V/400V/415V200V/220V/240V
AC08
NF3030C-SVA
AC07
AC06
AC05
AC04
AC03
AC02
AC01
LF1
(5-1C)
CN473ATX-8
1 2
3
4
5 7
10
12
11
13 20
21 22
23
9
25
26 30
31
27 29
32
33 35 38
36
34
37
39
40
41
45
46
42
43
24
8
62 62
44
47
48
49
49
51
50
54
53
52
55
56
57 57
57 57
57
57
57
[CTRL UNIT]
59
58
60
61
9
9
CPU BOARD
COM1:HOD(By way of BASE PCB)
COM2:TOUCH PANEL
RS232C BOARD
COM3(SIO1):ATX BATTERY
COM4(SIO2):2D CodeReader of Head
COM5(SIO3):
COM6(SIO4):UPS of HEAD BACKUP
COM7(SIO5):BarCodeReader of Conveyor surface
COM8(SIO6):2D CodeReader of Conveyor back side
COM9(SIO7):
COM10(SIO8):
