High Speed Multi T ray Feeder STF-100N User ’ s Guide 1 1-54 No. Part No Part Name Model ea Price Picture 28 J47131003A Tower Lamp -STF100N Tow er Lamp Prepb 302 RYG 1 29 J66191003A Tubular Solenoid-STF100N Tubular Solen…
Information on A/S Tool & Materials
11-53
No. Part No Part Name Model ea Price Picture
19 J32121009A Photo Sensor BYD30-DDT-STF100N Photo Sensor BYD30-DDT-STF100N 2
20 J34031002A Push Button Switch G-STF100N Push Button Switch G 61-1100(G) 1
21 J34031003A Push Button Switch Y-STF100N Push Button Switch Y 61-1100(Y) 1
22 J34031004A Push Button Switch WH-STF100N Push Button Switch WH 61-1100(WH) 1
23 J34031005A Emergency Switch-STF100N Emergency Switch AH165-VR01 1
24 J36031001A Circuit Breaker-STF100N Circuit Breaker GV2-ME20 1
25 J35011002A Circuit Relay-STF100N Circuit Relay GMC-9 AC24V 1
26 J29021001A Noise Filter-STF100N Noise filter SN-E10H-CM 1
27 J34061001A Switch Disconnector-STF100N Switch Disconnect or P1-25 1
High Speed Multi Tray Feeder STF-100N User’s Guide
11-54
No. Part No Part Name Model ea Price Picture
28 J47131003A Tower Lamp -STF100N Tower Lamp Prepb 302 RYG 1
29 J66191003A Tubular Solenoid-STF100N Tubular Solenoid Size130A PULL 4
30 J66191004A Door Solenoid-STF100N Door Solenoid 06ASL DC24V 2
31 J66011004A Ball Bearing 605ZZ-STF100N 605ZZ(1450ZZ) 2
32 J66011005A Ball Bearing LF1050ZZ-STF100N LF-1050ZZ 8
33 J66011014A Ball Bearing F605ZZ-STF100N F-605(RF-1450ZZ) 4
34 J66011003A Ball Bearing 694-STF100N 694 2
35 J66011015A Ball Bearing 623ZZ-STF100N 623ZZ 1
36 J66011013A Ball Bearing 696ZZ-STF100N 696ZZ 2
Information on A/S Tool & Materials
11-55

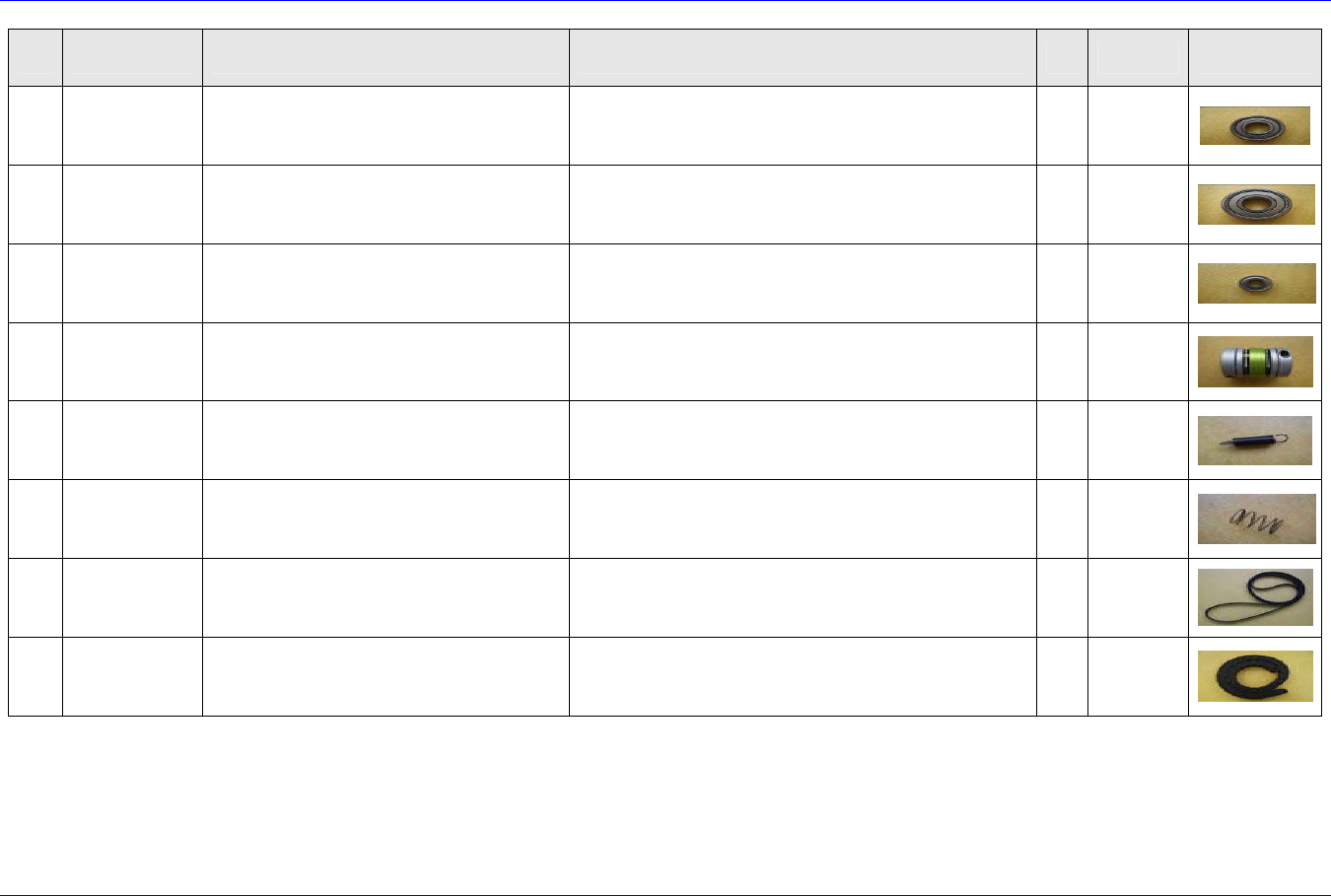

No. Part No Part Name Model ea Price Picture
37 J66011008A Ball Bearing 698ZZ-STF100N 698ZZ(R-1980) 4
38 J66011001A Ball Bearing 6000ZZ-STF100N 6000ZZ 5
39 J66011010A Ball Bearing 685ZZ-STF100N 685ZZ 2
40 J66121003A Coupling-STF100N Coupling SDWB31C-10*12KEY 1
41 J61071001A Hook Arm Spring-STF100N Hook Arm Spring STF-20-500-132A 2
42 J61071003A Solenoid Spring-STF100N Solenoid Spring STF-20-500-131A 4
43 J66021003A Timing Belt-STF100N Timing Belt 2100-3GT-11 1
44 J65041001A Cableveyor-STF100N Cableveyor HSP0130-1BN-37R-1000L 1
