6 2. Cover Section 2-3. Operation Panel No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati. 1 LE3-M130A-00 CLAMP,MONITOR ASSY. 1 2 LE3-M130B-01 BASE,CLAMP-A 1 3 LE3-M130C-02 BASE,CLAMP-B 1 4 LE3-…
5
2. Cover Section
2-3. Operation Panel
27
23
29
30
28
28
21
31
34
33
18
17
13
14
14
11
11
10
10
9
12
1
16
4
3
7
5
8
32
22
19
20
36
35
24
26
25
22
22
11
9
10
10
9
12
17
18
2
6
27
23
29
30
28
28
21
31
34
33
18
17
13
14
14
11
11
10
10
9
1
2
1
16
4
3
7
5
8
32
22
19
20
36
35
24
26
25
22
22
11
9
10
10
9
12
17
18
2
6
6
2. Cover Section
2-3. Operation Panel
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 LE3-M130A-00 CLAMP,MONITOR ASSY. 1
2 LE3-M130B-01 BASE,CLAMP-A 1
3 LE3-M130C-02 BASE,CLAMP-B 1
4 LE3-M130D-02 BASE,CLAMP-C 1
5 LE3-M130E-01 BAR,CLAMP 1
6 97002-06060 BOLT,HEXAGON 1
7 95302-06600 NUT HEXAGON 1
8 92902-06200 WASHER PLAIN 1
9 LE3-M130H-00 ROLLER,CLAMP 4
10 90933-03J126 BEARING 8
11 90990-37J006 WASHER,BELLEVILLE 8
12 90990-18J018 PIN PARALLEL 4
13 LE3-M130M-00 PIN,HINGE 1
14 90990-50J004 PLATE,MC 2
15 LE2-M1351-00 BRKT,DUCT 1
16 LE2-M1352-00 BAR,MONITOR 1
17 LE2-M1353-00 BRKT,BAR 2
18 LE3-M130S-01 PLATE,NUT 2
19 LE3-M130U-01 BASE,MONITOR 1
20 LE2-M1355-01 BASE,KEYBOARD 1
21 LE3-M13F1-00 SCREW,ALL 1
22 99712-16700 NUT,HEXAGON 5
23 LE3-M130X-01 COLLAR 1
24 LE2-M1357-01 BRKT,KEY BOARD 1
25 LE3-M131T-00 CUSION,KB 1
26 LE3-M131U-00 TAPE,DOUBLE COATED 1
27 LE3-M131J-00 BRACKET,MONITOR 1
28 90990-28J121 WASHER,PLAIN 2
29 90990-16J004 NUT,U 1
30 92907-16800 WASHER,BELLEVILLE 1
31 LE3-M130T-03 DUCT,MONITOR 1
32 LE3-M131L-00 CONNECTOR,DUCT 1
33 90990-47J014 SADDLE,DUCT 1
34 LE3-M131N-00 BRKT,DUCT 1
35 LG0-M110P-01 PAD,MOUSE 1
36 90990-47J004 GRIP, MONITOR 1
7

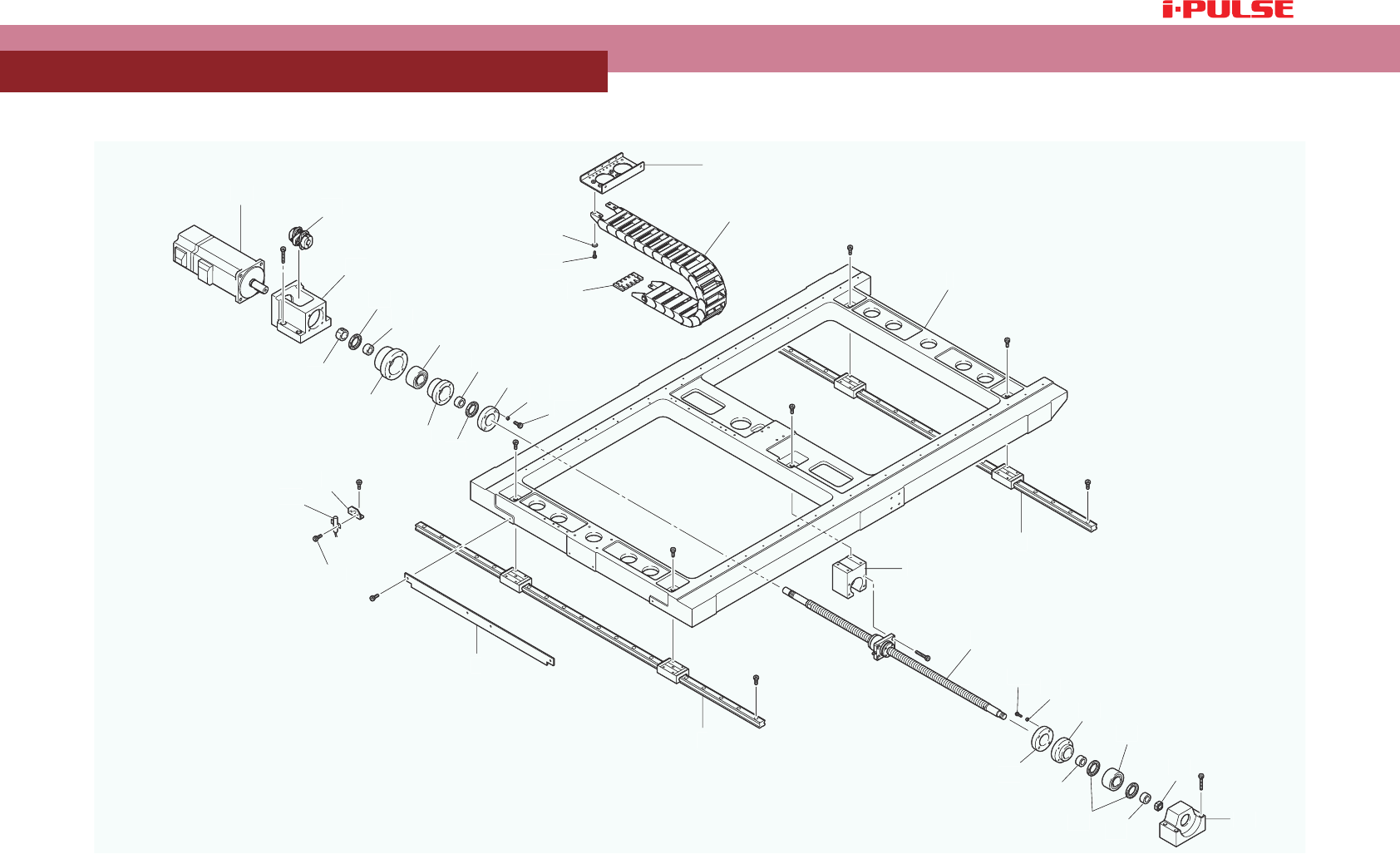

3. Moving-axis Section
