User Manual SIPLACE CA 6 Component and Die Handling
Edition 08/2011 EN 6.1 X Feeder Modules for the Component Trolley from the SIPLACE X Series
387
6.1.2.4 24 mm X Tape Feeder Module
6

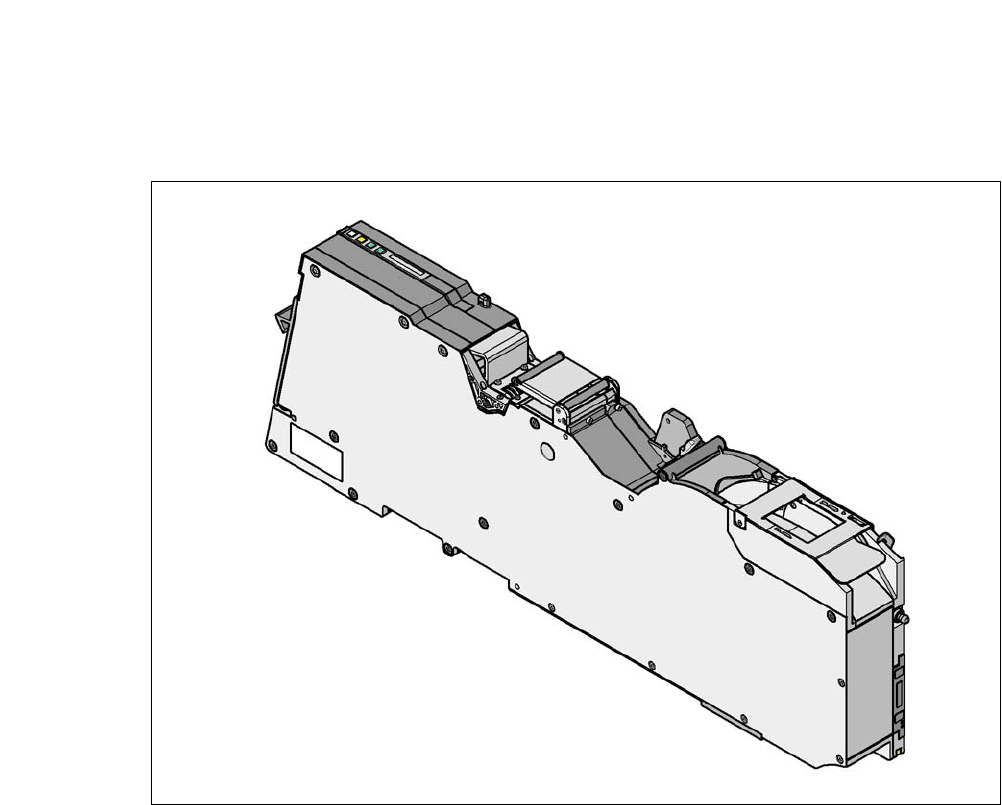

Fig. 6.1 - 8 24 mm X tape feeder module
6
6
6
24 mm X tape feeder module [00141273-xx]
24 mm X tape feeder module with splice sensor [00141293-xx]
Width 34.4 mm
Feeder module locations filled 3
Conveyor increment From 4 mm to 32 mm in 4 mm increments
Changeover time for the component tape < 45 s
Changeover time for the pre-set feeder module
on the machine
< 15 s
6 Component and Die Handling User Manual SIPLACE CA
6.1 X Feeder Modules for the Component Trolley from the SIPLACE X Series Edition 08/2011 EN
388
6.1.2.5 32 mm X Tape Feeder Module
6
Fig. 6.1 - 9 32 mm X tape feeder module
6
6
32 mm X tape feeder module [00141274-xx]
32 mm X tape feeder module with splice sensor [00141294-xx]
Width 46.2 mm
Feeder module locations filled 4
Conveyor increment From 4 mm to 40 mm in 4 mm increments
Changeover time for the component tape < 45 s
Changeover time for the pre-set feeder module
on the machine
< 15 s
User Manual SIPLACE CA 6 Component and Die Handling
Edition 08/2011 EN 6.1 X Feeder Modules for the Component Trolley from the SIPLACE X Series
389
6.1.2.6 44 mm X Tape Feeder Module
6
Fig. 6.1 - 10 44 mm X tape feeder module
6
6
6
6
44 mm X tape feeder module [00141275-xx]
44 mm X tape feeder module with splice sensor [00141295-xx]
Width 58,0
Feeder module locations filled 5
Conveyor increment From 4 mm to 52 mm in 4 mm increments
Changeover time for the component tape < 45 s
Changeover time for the pre-set feeder module
on the machine
< 15 s
