Equipment required for Workflow 4 Maintenance TX V2

Tools Wear parts

T01 none Vacuum cleaner W02 Nozzle magazine with ceramic nozzles 2xxx/28xx

T02 none Waste bin for nozzles W58 Nozzle magazine with nozzles 4xxx/6xxx

T03 00377393-xx Anti-static tweezers, Bernstein 5-192

T05 03010565-xx Calibration part version 3 Consumables

T07 03078400-xx Torque Screwdriver ESD 1,0-5,0 Nm C01 none Sheet of Paper 420x300

T08 03078706-xx Bitholder f. Screwdriver TorqueVario C03 03082092-xx Cleaning Wipe, KM-Wipe

T09 03073256-xx Extension/ straight TX20 C04 00315253-xx SIPLACE cleaning-tissue

T18 00378524-xx Scissors C05 none Isopropanol

T20 none Flashlight C31 00372972-xx Protective gloves latex

T31 00376492-xx Hexagon ball-point screwdriver set C33 00328575-xx Oilspray Surface Shield 400ml

T87 03081255-xx Transport box TH C49 03121952-xx Lubrication grease BEM 34-132. 400g cart.

T89 03123777-xx Grease gun

T90 none Spanner size 15

www.asm-smt.com

1 WF 4 TX-Series V2 Maintenance Test the tape cutter 2 min 1 / 3

CAUTION! Refer to safety instructions in user manual before commencing Maintenance

Machine Status ON Conveyor Empty

NOTICE! ESD guidelines are to be followed Tool: Wear Part: Consumables:

www.asm-smt.com

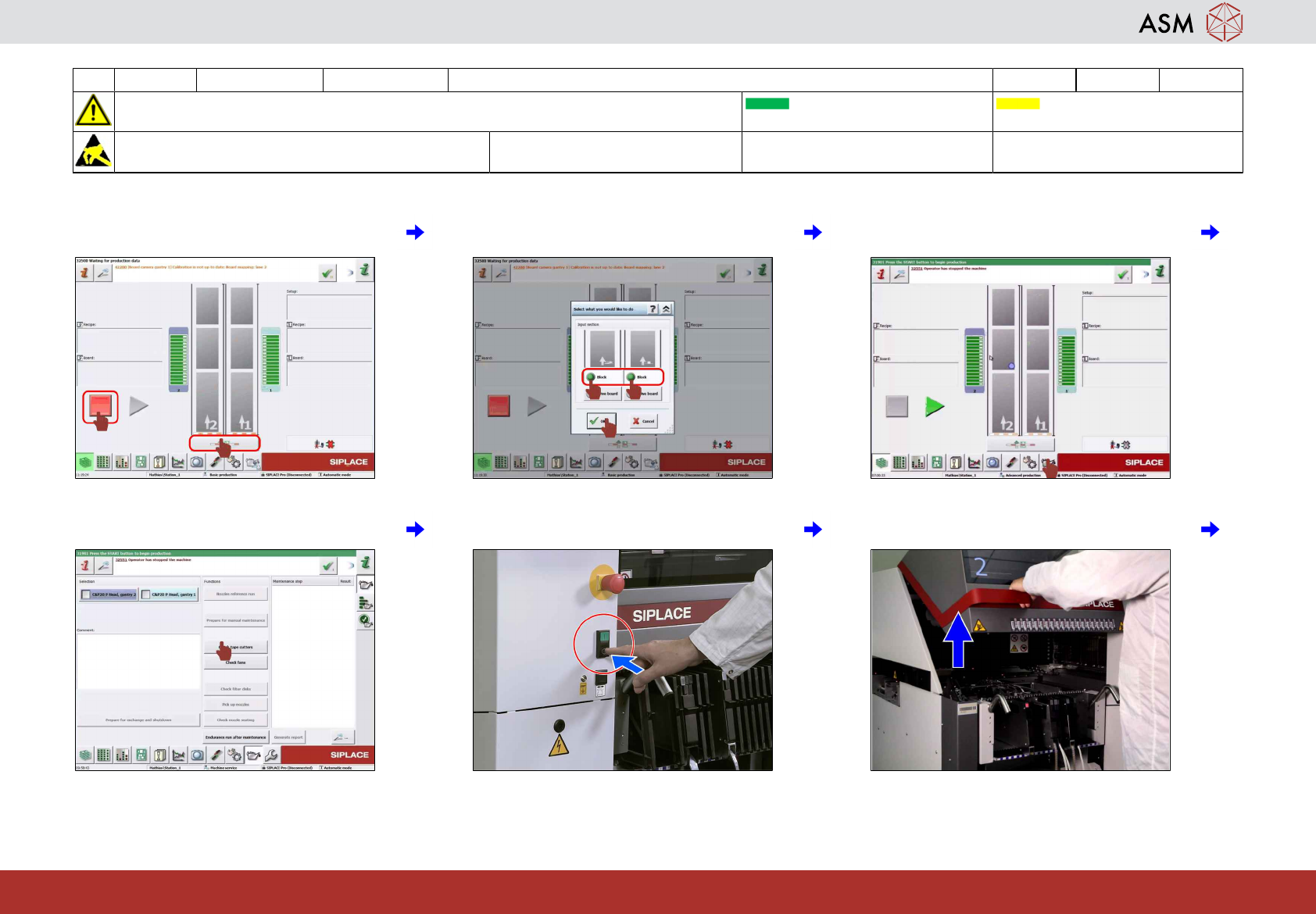

1 Stop the production and click on "Block

conveyor".

2 Block both lanes and click on "OK". 3 Click on "Maintenance".

4 Click on "Check tape cutters". 5 Press the stop button. 6 Open the covers.
