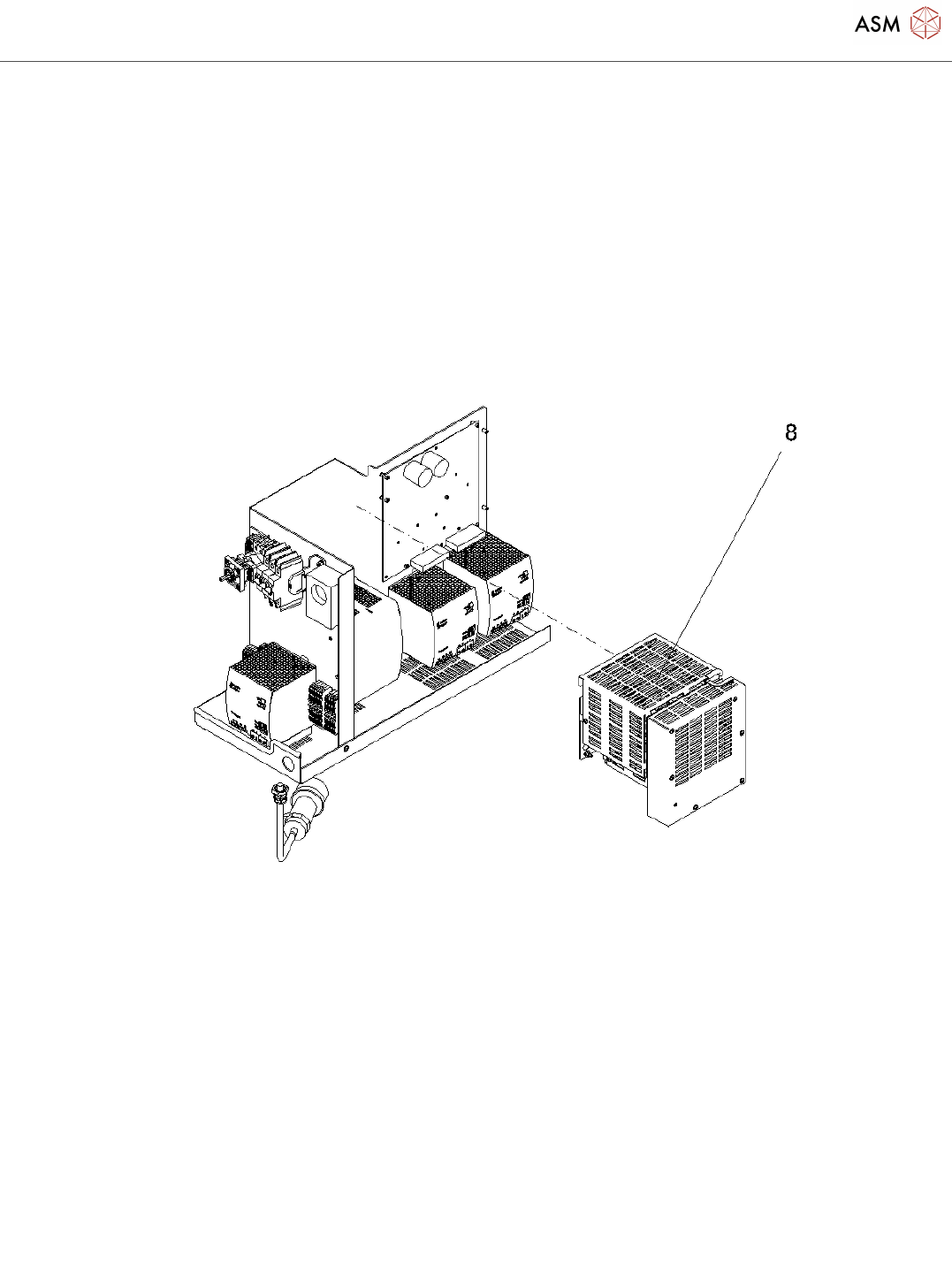

Pos. Item no. Description Part marking
1 03102354S02 SWITCHED-MODE POWER SUPPLY
SX2
*
3 03103360-01 SHEET METAL TROUGH CPL.
4 03103208-01 FRAME CPL.
5 03103362-01 TILTER WELDING ASSY
6 03102922-01 TILTER
7 03103081-02 BUFFER MODULE PCS417.381 SPARE PART
8 03112066S04 CONTACTOR SAFETY BREAKER
(CSB) SMPS
SPARE PART
23 03070137-01 GROUND TERM. BLOCK 4-CON.
4MM² 2004-1407
24 03102840-01 AC/DC CONVERTER DC24V/40A
3-PHASE
SPARE PART
25 03103331-01 AC-/DC-CONVERTER 36V 26.7A
960W 3-PHASE
SPARE PART
26 03103087-01 AC/DC CONVERTER DC300/150V
1.3KW 3-PHASE
SPARE PART
27 03077653-01 TERMINAL BLOCK GY 4-CO. 2,5MM²
2002-1401
28 03070136-01 TERMINAL BLOCK BU 4-COND.
4MM² 2004-1404
29 03070135-01 TERMINAL BLOCK GY 4-COND.
4MM² 2004-1401
30 03114296-01 TERMINAL BLOCK GY 2-COND. W.
TEST SOCKET
31 03114809-01 SOCKET AC250V W/ FUSE SD
03500.0-00
32 03114066-01 MAIN SWITCH 3-POLE 25A TYPE
P1-25/V/SVB
SPARE PART
33 03118366-01 CIRCUIT BREAKER FAZ-C16/3-NA
16A 3P
SPARE PART
34 00335210-02 CABLE: MAIN SUPPLY MACHINE SPARE PART
35 03100636-01 ISO 7089 - 6 - 200 HV - A2 STANDARD PARTS
03118286S03 DISTRIB. AND FUSING ASSY CPL.
SX12
SPARE PART
77 03104070-02 DISTRIBUTION AND FUSING
ASSEMBLY
03042540-01 ISO 4762 - M 3 X 5-A2-70
03118296-01 PROTECTIVE COVER FOR A1 SX12
03133256-01 FUSE 5X20MM T6,3A 400VDC WEAR PART
