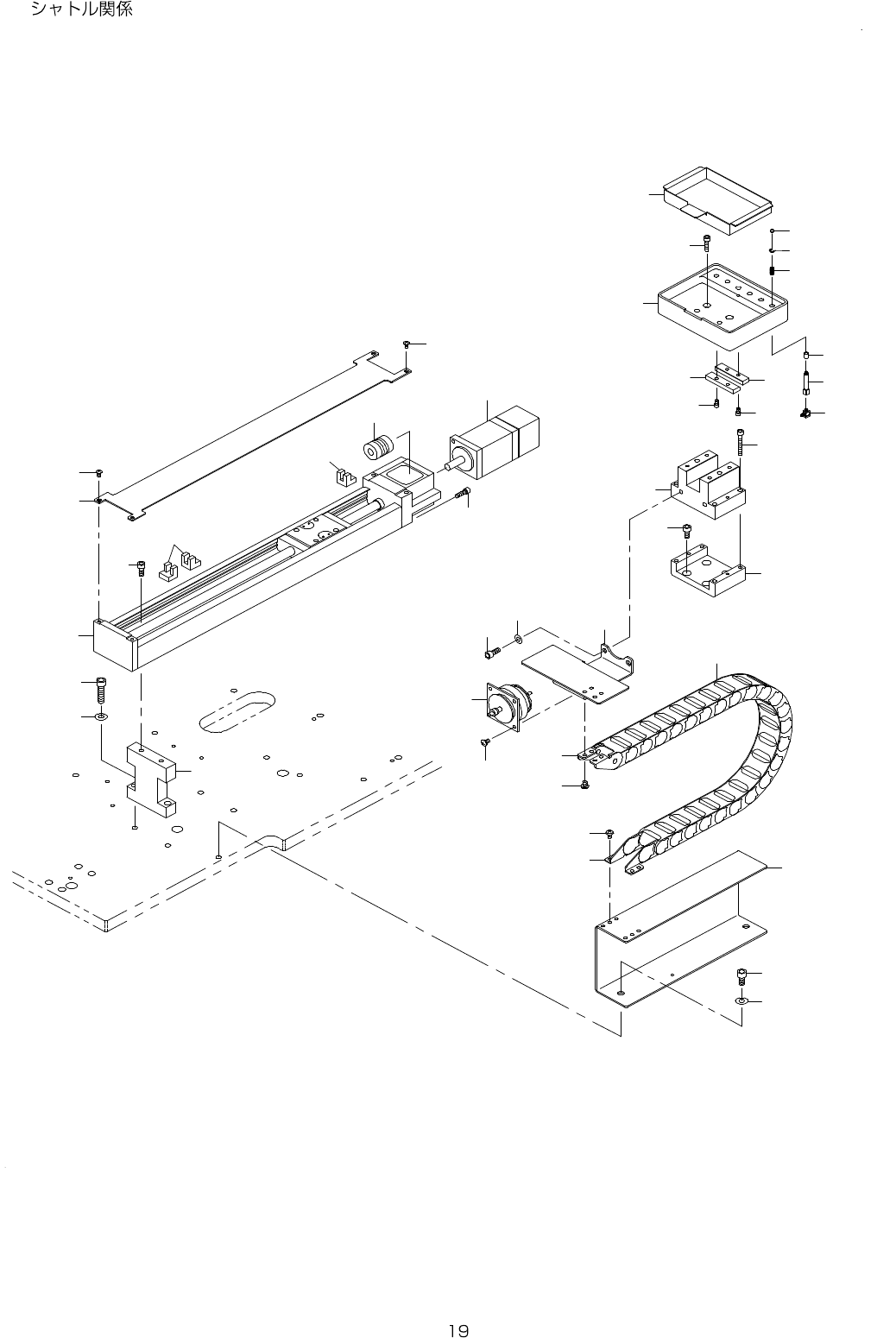

10. SHUTTLE UNIT
4
6
8
9
1 0
1 2
2 2
1 4
1 6
1 7
1 8
1 9
2 4
2 3
2 5
7
7
2 6
2 7
2 8
3 1
2 9
3 0
3
3 2
2
3 4
3 3
3 3
3 5
3 6
3 7
5
2 1
2 0
2 0
1 1
1 1
1 5
1
1 3
1 3
3 8
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-24052 SHUTTLE STAGE 1
2 401-24053 SHUTTLE STAGE BLOCK 1
3 401-24054 SHUTTLE BEAR MOUNT 1
4 401-24055 SHUTTLE LEG 1
5 401-24056 MULTI CONNECTOR ATTACHMENT PLATE 1
6 401-24057 ADSORPTION PIPE 1.7 6
7 401-24058 ADSORPTION PIPE GUIDE 4
8 401-24059 SHUTTLE U BLOCK 1
9 401-24060 SHUTTLE COVER 1
10 401-24061 DUST BOX 1
11 - SCREW M3X6 4
12 401-24063 ACTUATOR 1
13 401-21305 PHOTO SENSOR 3
14 401-21300 AC SERVO MOTOR 1
15 401-24064 CABLEVEYOR 1
16 401-24065 ATTACHMENT METAL FITTING 1
17 401-24066 ATTACHMENT METAL FITTING 1
18 401-24067 MULTI CONNECTOR 1
19 401-24068 MINIATURE ELBOW 6
20 - SCREW M4X6 8
21 - SCREW M4X6 4
22 401-24071 COUPLING 1
23 401-24072 COMPRESSION SPRING 6
24 401-24073 LINEAR BUSHING 6
25 - E-RING 6
26 - BOLT M6X25 2
27 - WASHER M6 2
28 - SCREW M5X12 2
29 - BOLT M6X12 2
30 - WASHER M6 2
31 - SCREW M4X14 2
32 - SCREW M5X10 4
33 - SCREW M3X6 8
34 - SCREW M4X30 4
35 - SCREW M4X15 4
36 - SCREW M5X12 2
37 - WASHER M5 2
38
#01
401-23157 RUBBER TIP 6
- -
