- - 6. BASEFRAME ELECTRICA PPARATUSCOMPO NENTS(3) 1 7 2 6 2 6 3 6 3 6 3 6 4 6 4 6 5 6 1 6 4 6 9 1 0 1 0 9 1 3 1 1 1 1 1 2 1 4 1 5 1 6 1 8 2 0 2 2 2 3 2 5 2 5 2 5 2 6 2 6 2 6 2 7 5 8 3 0 2 9 2 8 5 9 7 4 7 4 6 4 5 3 …

100%1 / 148
- -

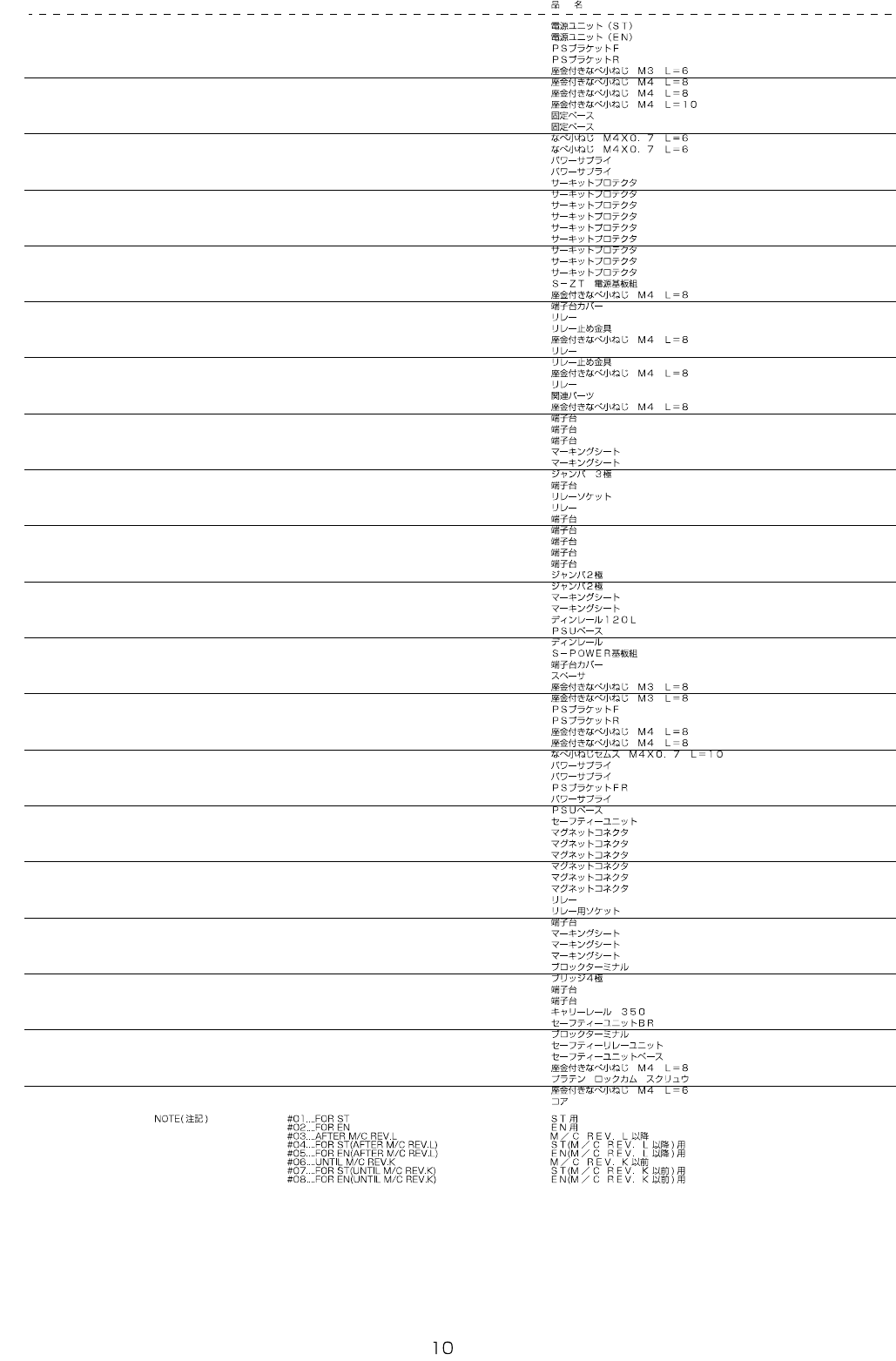

REF.NO NOTE PARTNO DESCRIPTION Qty
1
#01
401-37036 POWER_UNIT(ST) 1
2
#02
401-37045 POWER_UNIT(EN) 1
3
#06
401-36723 PS_BRACKET_F (2)
4
#06
401-36724 PS_BRACKET_R (2)
5 SL-4030691-SC SCREWM3L=6 (36)
6
#07
SL-4040891-SC SCREWM4X8 (16)
7
#08
SL-4040891-SC SCREWM4X8 (16)
8
#06
SL-4041091-SC SCREWM4L=10 (4)
9
#01
HX-0029400-00 FIXEDBASE (22)
10
#02
HX-0029400-00 FIXEDBASE (15)
11
#01
SM-4040601-SC SCREWM4X0.7L=6 (22)
12
#02
SM-4040601-SC SCREWM4X0.7L=6 (15)
13
#06
HX-0067500-00 POWERSUPPLY (2)
14
#06
HX-0054200-0B POWERSUPPLY (1)
15 HA-0066300-00 CIRCUITPROTECTOR (1)
16 HA-0064600-00 CIRCUITPROTECTOR (1)
17 HA-0055900-00 CIRCUITPROTECTOR (3)
18 HA-0052400-0B CIRCUITPROTECTOR (1)
19 HA-0052400-0D CIRCUITPROTECTOR (2)
20 HA-0052400-0E CIRCUITPROTECTOR (1)
21 HA-0054200-0A CIRCUITPROTECTOR (1)
22 HA-0052600-0B CIRCUITPROTECTOR (1)
23 HA-0052700-0C CIRCUITPROTECTOR (1)
24 401-09883 S-ZTPOWERPCBASM (1)
25 SL-4040891-SC SCREWM4X8 (3)
26 HK-0627900-40 BLOCKTERMINAL (1)
27 HB-0012800-0C RELAY (3)
28 HB-0005800-10 RELAY (3)
29 SL-4040891-SC SCREWM4X8 (3)
30
#01
HB-0012800-0C RELAY (3)
31
#01
HB-0005800-10 RELAY (3)
32
#01
SL-4040891-SC SCREWM4X8 (6)
33
#01
HB-0011000-00 RELAY (1)
34
#01
HB-0011000-10 RELAY (1)
35
#01
SL-4040891-SC SCREWM4X8 (2)
36 HK-0693500-10 BLOCKTERMINAL (3)
37 HK-0696900-00 BLOCKTERMINAL (1)
38 HK-0691900-0B BLOCKTERMINAL (2)
39 HK-0696900-0A BLOCKTERMINAL (1)
40 HK-0696900-0B BLOCKTERMINAL (1)
41 HK-0696900-30 TERMINAL
(4)
42 HK-0696500-10 BLOCKTERMINAL (12)
43 HB-0015400-10 RELAY (2)
44 HB-0015400-00 RELAY (2)
45
#01
HK-0695500-10 BLOCKTERMINAL (8)
46
#02
HK-0695500-10 BLOCKTERMINAL (14)
47 HK-0691900-0B BLOCKTERMINAL (3)
48
#01
HK-0695900-00 BLOCKTERMINAL (2)
49
#02
HK-0695900-00 BLOCKTERMINAL (2)
50
#01
HK-0695900-20 TERMINAL (2)
51
#02
HK-0695900-20 TERMINAL (5)
52 HK-0695900-0A BLOCKTERMINAL (2)
53 HK-0695900-0B BLOCKTERMINAL (1)
54 400-95386 DIN_RAIL_120L (1)
55
#06
401-36722 PSU_BASE (1)
56 400-47075 DIN_RAIL (1)
57 401-09881 S-POWERPCBASM (1)
58 HK-0627900-40 BLOCKTERMINAL (1)
59 HX-0041800-0C SPACER (4)
60
#01
SL-4030891-SC SCREWM3L=8 (14)
61
#02
SL-4030891-SC SCREWM3L=8 (16)
62
#03
401-36723 PS_BRACKET_F (1)
63
#03
401-36724 PS_BRACKET_R (1)
64
#04
SL-4040891-SC SCREWM4L=8 (18)
65
#05
SL-4040891-SC SCREWM4L=8 (18)
66
#03
SL-4041091-SC SCREWM4L=10 (2)
67
#03
HX-0067500-00 POWERSUPPLY (1)
68
#03
HX-0069000-00 POWERSUPPLY (1)
69
#03
401-78052 PS_BRACKET_FR (2)
70
#03
HX-0071800-00 POWERSUPPLY (1)
71
#03
401-72540 PSU_BASE (1)
72
#02
401-37056 SAFETYUNIT 1
73 HA-0053100-00 MAGNETICCONTACTOR (3)
74 HA-0053100-10 MAGNETICCONTACTOR (3)
75 HA-0053100-20 MAGNETICCONTACTOR (3)
76 HA-0053000-00 MAGNETICCONTACTOR (2)
77 HA-0053000-10 MAGNETICCONTACTOR (2)
78 HA-0053000-20 MAGNETICCONTACTOR (2)
79 HB-0013900-00 RELAY (8)
80 HB-0013900-10 RELAY (8)
81 HK-0696500-10 BLOCKTERMINAL (22)
82 HK-0696900-0A BLOCKTERMINAL (1)
83 HK-0696900-0B BLOCKTERMINAL (1)
84 HK-0696900-0C BLOCKTERMINAL (1)
85 HK-0691900-00 BLOCKTERMINAL (1)
86 HK-0691900-40 BLOCKTERMINAL (4)
87 HK-0696900-00 BLOCKTERMINAL (1)
88 HK-0691900-0B BLOCKTERMINAL (3)
89 400-00529 CARRIERRAIL350 (2)
90 401-06098 SAFETY_UNIT_BR (1)
91 HK-0692500-10 BLOCKTERMINAL (4)
92 HB-0015800-00 RELAY (1)
93 401-36742 SAFETY_UNIT_BASE (1)
94 SL-4040891-SC SCREWM4X8 (10)
95 E1038-871-000 PLATENLOCKCAMSCREW 2
96 SL-4040691-SC SCREWM4L=6 2
97
#02
HN-0014900-00 CORE 5
- -
6. BASEFRAMEELECTRICAPPARATUSCOMPONENTS(3)
1 7
2 6
2 6
3 6
3 6
3 6
4 6
4 6
5 6
1 6
4 6
9
1 0
1 0
9
1 3
1 1
1 1
1 2
1 4
1 5
1 6
1 8
2 0
2 2
2 3
2 5
2 5
2 5
2 6
2 6
2 6
2 7
5 8
3 0
2 9
2 8
5 9
7
4 7
4 6
4 5
3 8
4 0
4 3
3 9
3 4
3 5
3 6
3 2
3 2
6 0
4 1
4 2
3 8
3 7
3 7
4 8
4 9
5 0
5 1
5 2
4 4
3 3
5 3
5 5
5 4
2 1
1 0
3 1
8
5 7
5 6
2 4
1 9
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1 401-36737 DUCT_40-100-400 4
