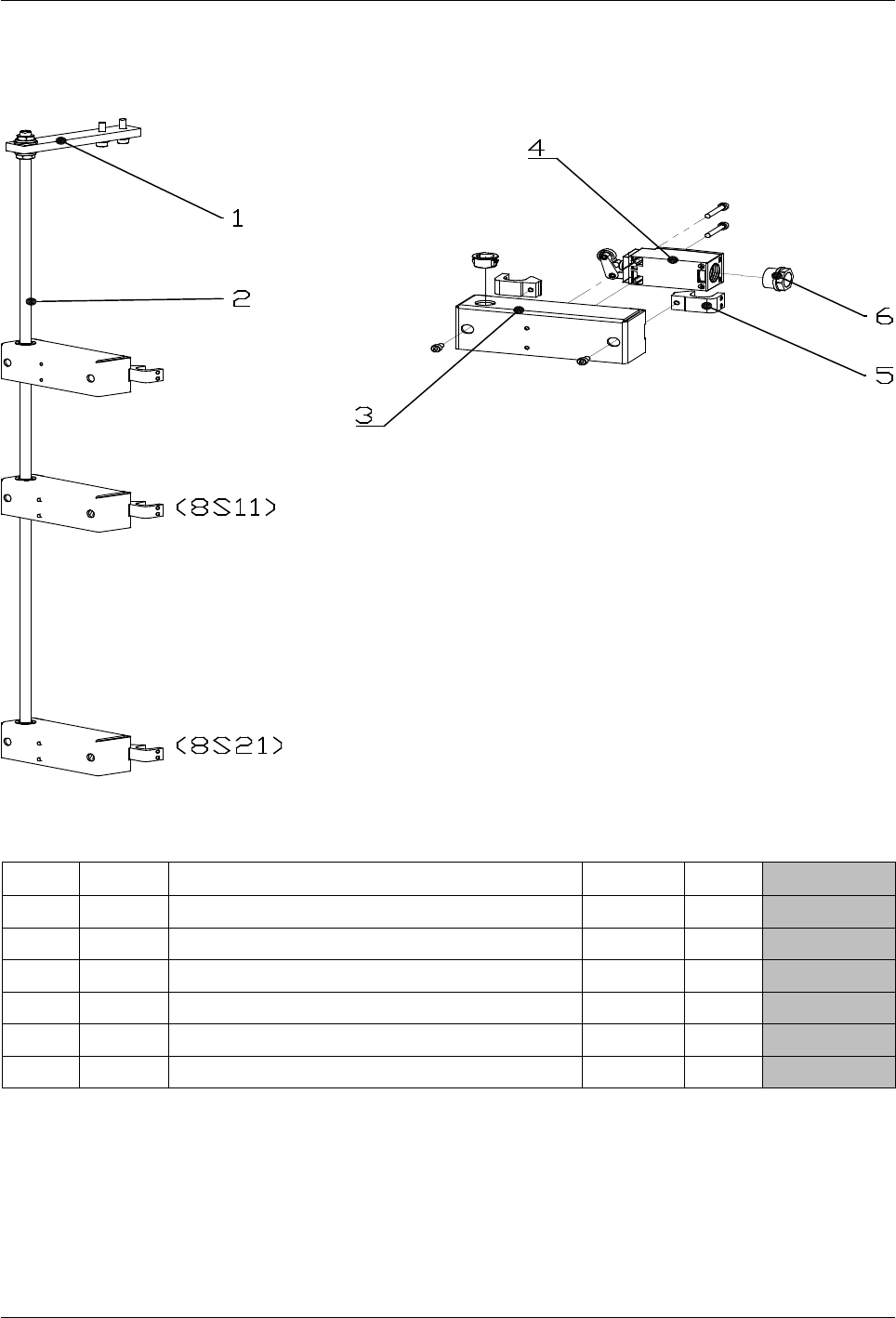

Device, Platen Position Inquiry

Figure 11-4

Item Part Description Quantity Note Melter

1 ------ PLATE,POSITION SWITCH MOUNTING 1

2 ------ S CONTACT MAKER BAR L810 M10 1

3 ------ S PLATE, MOUNTING POSITION SWITCH 1

4 7140289 S Position switch, roller lever IP66 1

5 ------ S Mounting kit BT16 2

6 ------ S Cable gland, membrane M20x1,5 1

Parts

11-8

Part 1121836_03

E 11/2014 Nordson Corporation

This page intentionally left blank.

Parts

11-9

Part 1121836_03

E 11/2014 Nordson Corporation

Platen Assembly

Figure 11-5
