2 Operational Safety User Manual SIPLACE CA- Series 2.2 Warning Labels on the Placement Machine From software version SC.708.0 Edition 12/2014 EN -DR AFT 56 2.2.7.2 W arning Label W207 on the Inrush Current Limite r of t…
User Manual SIPLACE CA-Series 2 Operational Safety
From software version SC.708.0 Edition 12/2014 EN -DRAFT 2.2 Warning Labels on the Placement Machine
55
2.2.7 Warning Label W207
2
Item W207 in the fig. 2.2 - 9 and 2.2 - 10 [03009346-01]
(quantity per machine: 3 for the CA4)
2.2.7.1 Warning Label W207 on Axis Unit
2

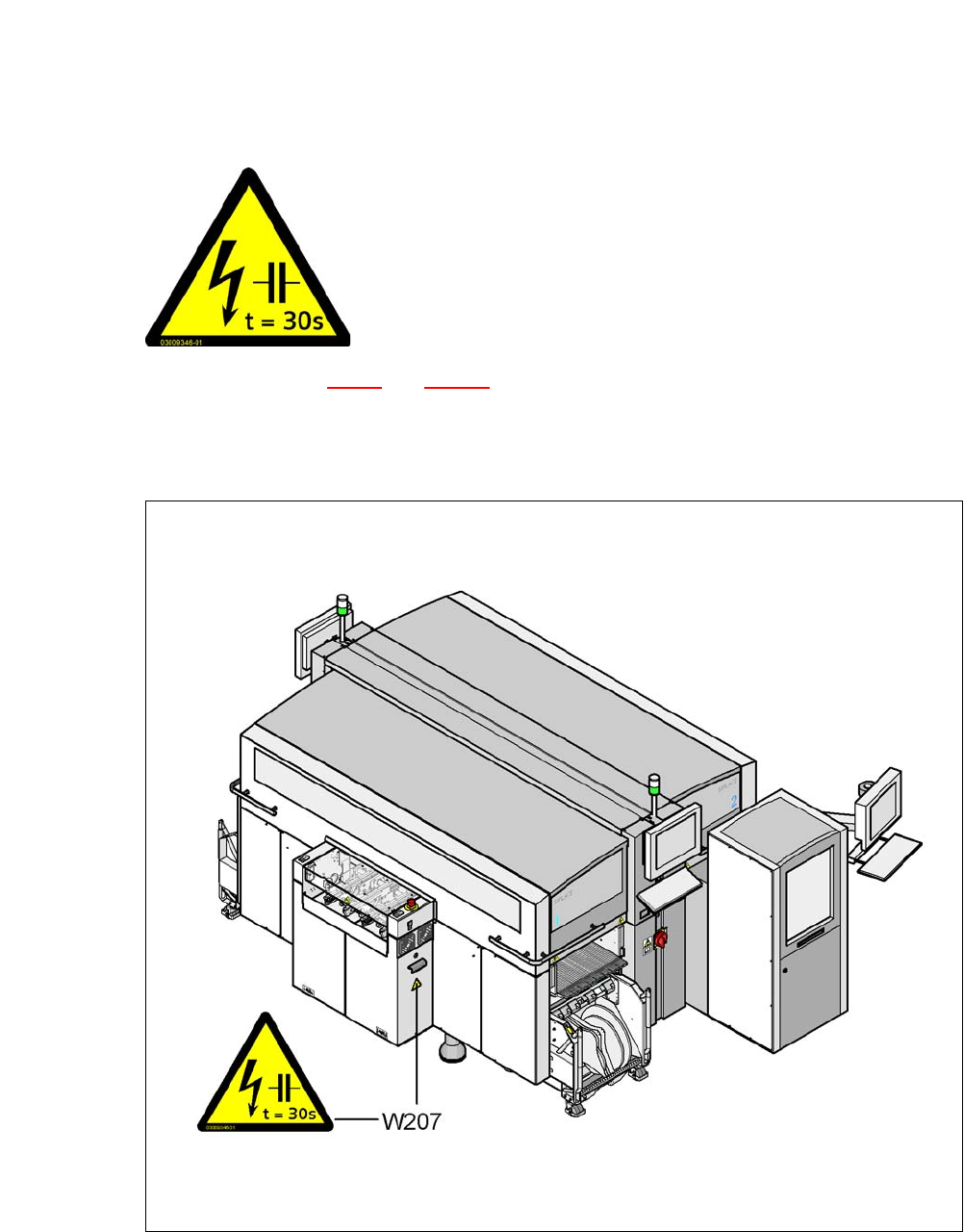

Fig. 2.2 - 9 Warning label W207 on the axis unit Macrolon panel
Item W207 [03009346-01]
2
2
MAIN POWER VOLTAGE!
Switch off the main power switch and wait 30 seconds until the
capacitors have discharged.
NAFTA region: RISK OF ELECTRIC SHOCK OR BURN!
2 Operational Safety User Manual SIPLACE CA-Series
2.2 Warning Labels on the Placement Machine From software version SC.708.0 Edition 12/2014 EN -DRAFT
56
2.2.7.2 Warning Label W207 on the Inrush Current Limiter of the Power Supply
2
Fig. 2.2 - 10 Warning label W207 on the inrush current limiter of the power supply
Item W207 [03009346-01]
PCB1 board, inrush current limiter - transformer
PCB2 board, inrush current limiter - servo
PCB2
PCB1
User Manual SIPLACE CA-Series 2 Operational Safety
From software version SC.708.0 Edition 12/2014 EN -DRAFT 2.2 Warning Labels on the Placement Machine
57
2.2.8 Warning Label W208 "Laser Class 2" on PCB Conveyor
2
Item W208 "laser class 2" on PCB conveyor in fig. 2.2 - 11 [03009347-01]
(quantity per machine: 4 for the dual conveyor, 2 for the single conveyor)
2
2
2
Fig. 2.2 - 11 Danger Sign W208 "Laser Class 2" at the PCB Conveyor
Item W208 [03009347-01]
2
2
LASER RADIATION!
Do not look into beam
Laser Class 2
