Tape feeder module 16mm X FS06_20211118_073503.pdf - 第9页
Tape feeder module 16mm X FS06 Page 9 / 13 18.11.2021
Tape feeder module 16mm X FS06
Page 8 / 13 18.11.2021

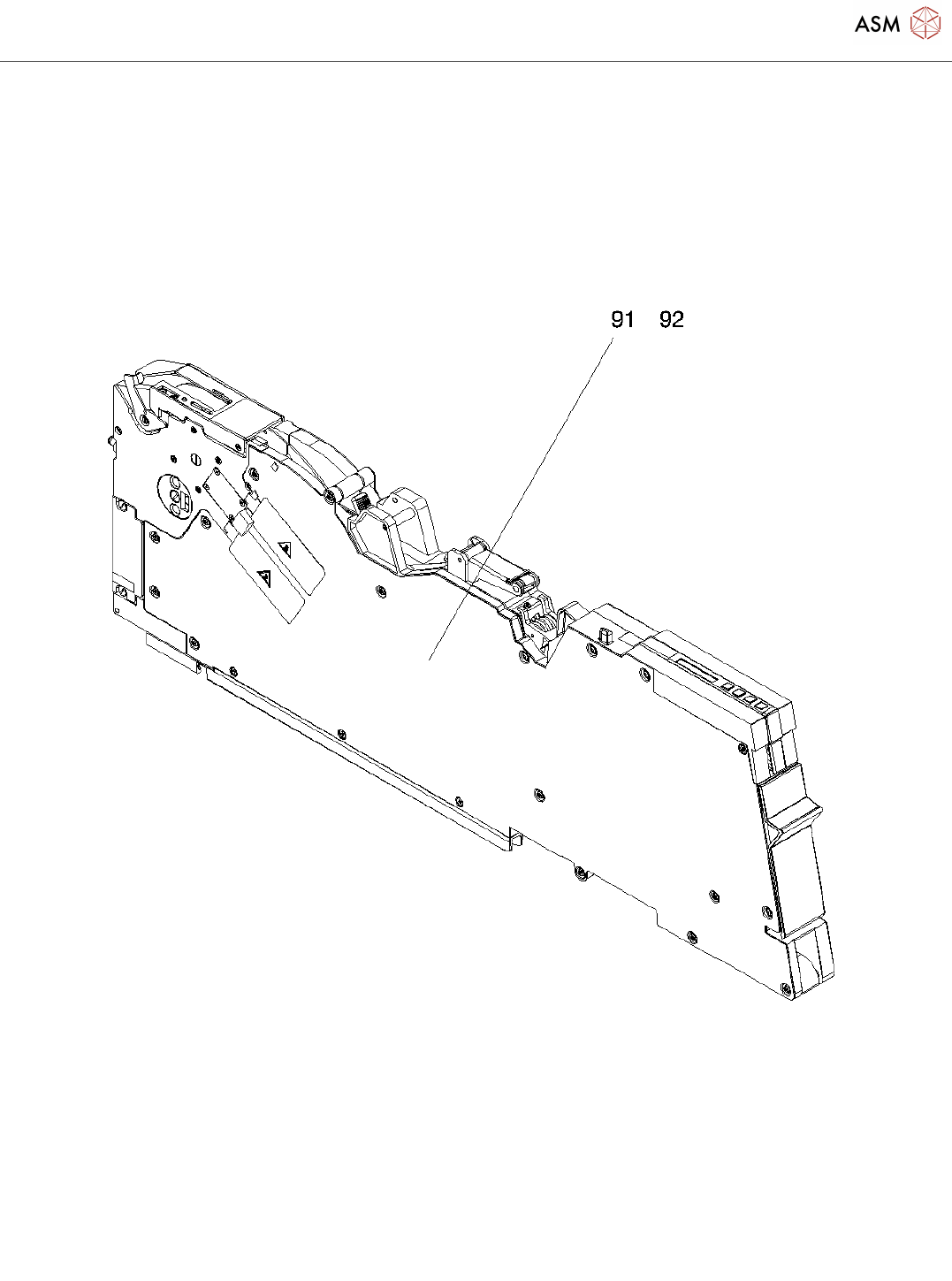

Tape feeder module 16mm X FS06
Page 9 / 13 18.11.2021
Tape feeder module 16mm X FS06
Page 10 / 13 18.11.2021
Pos. Item no. Description Part marking
1 00141272S06 TAPE FEEDER MODULE 16MM X
2 03012810-06 TAPE FEEDER MODUL 16MM X
3 03031194S05 PCB /CONTROL BOARD TAPE-
FEEDER X-SERIES
SPARE PART
03032819S01 CABLE /IRDA - EDIF SECONDARY SPARE PART
5 03003994S01 SLIDE GUIDE /REAR L200 SPARE PART
03006814-01 CABLE SENSOR FOIL ROCKER SPARE PART
03006815-01 CABLE SENSOR REMOVAL HANDLE SPARE PART
8 03042403-01 FOIL CASE COMPLETE /X16
9 03009198S01 HANDLE CPL. / X-SERIES Spare Part
10 03002629-01 CONTROL PANEL COMPLETE /X-
SERIE
11 03002644S01 WINDOW /CONTROL PANEL SPARE PART
12 03021637S01 CONTROL PANEL KEY COVER CPL.
/X-SERIES
SPARE PART
13 03033796-01 REMFORM-SCREW RF-SN75-2,5 X
6-9.8
STANDARD PARTS
14 03033798-01 REMFORM-SCREW RF-SN75-2,5 X
10-9.8
STANDARD PARTS
15 03022105S02 FOIL DISPOSAL /FLAT SPRING
X16-88
SPARE PART
16 03042171S01 AXIS FLAP /FOIL CASE X16-X24 SPARE PART
17 03041671-01 LID FOIL DISPOSAL X16
18 00341370S01 BLADE, PARTITION SPARE PART
19 03033796-01 REMFORM-SCREW RF-SN75-2,5 X
6-9.8
STANDARD PARTS
20 03042355S01 BEARING SHAFT COMPENSATOR
/X16
SPARE PART
21 03042354-02 COMPENSATOR COMPLETE /X16
22 03041749-01 TAMP WHEEL PLANE
/COMPENSATOR X16
23 03042355S01 BEARING SHAFT COMPENSATOR
/X16
SPARE PART
24 03048855-01 PRESSURE SPRING
0.75X6.25X31X8.5
SPARE PART
25 00328542-01 SN 213307-H-M2,5 X 6-A2 STANDARD PARTS
26 03042357-03 FOIL DISPOSAL COMPLETE /X16
27 03042412-01 TAMP WHEEL KNURLED CPL./FOIL
DISPOS. X16
