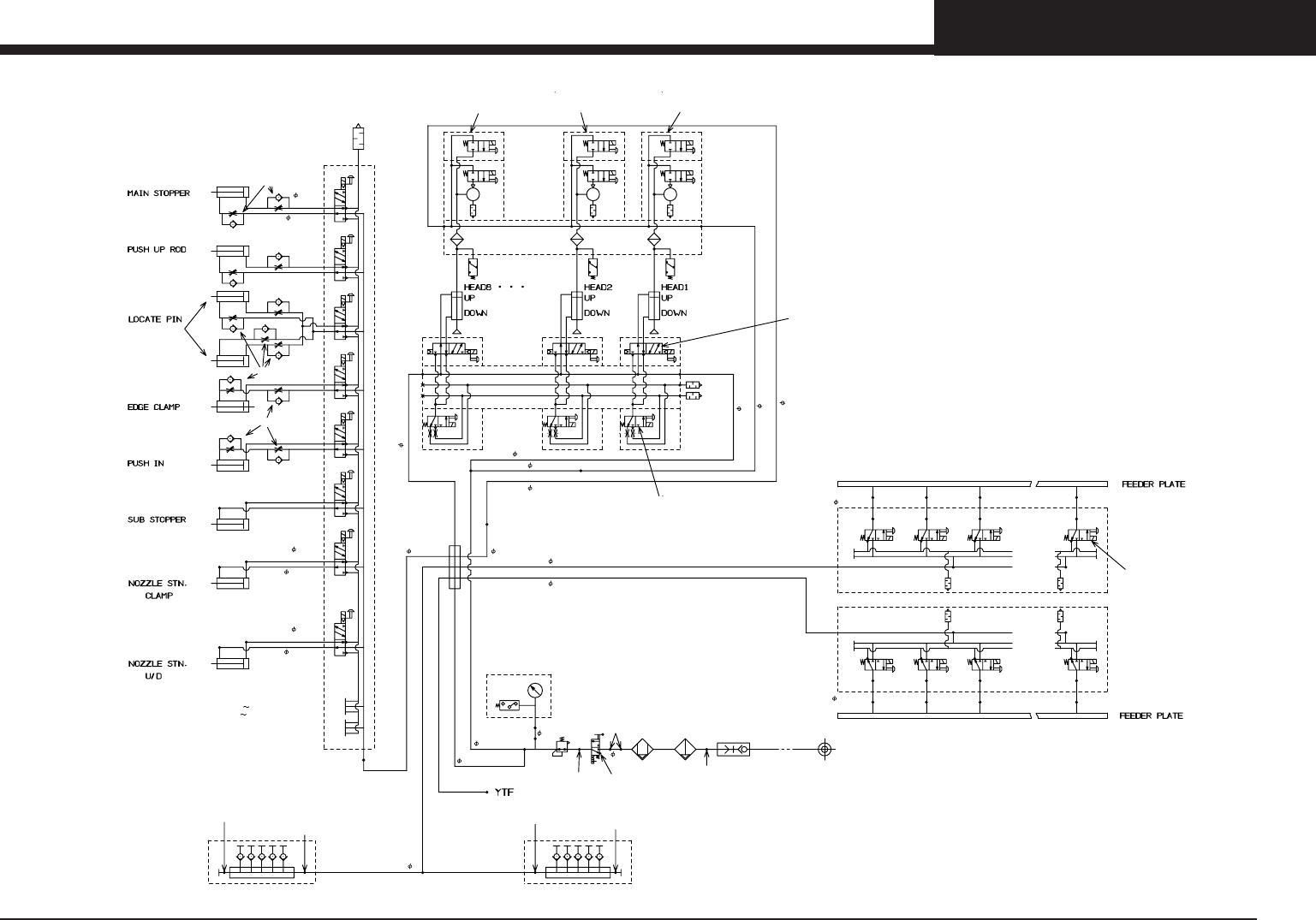

PAGE 7 YV100IIe (KM8) Air cir cuit JOINT 3/8" JOINT PLUG 30PM F300-03 -BG-A MF300 -03-A R300-03 SL12-03 GS1-50-L4 SLY10-03 TL4-02 SL4-M5 UEDW10-8 MANIFOLD KM0-M1141-000 UEF4 BF4 TL8-01 TT8-01 stn.20 stn.1 stn.2 stn.…

100%1 / 12
PAGE 6
YV100II (KM8)
Air circuit
KM-11
040M10AJ 1 8 A040
-4E1-PLL 9 10 BP
JOINT PLUG
30PM
F300-03
-BG-A
MF300
-03-A
R300-03
SL12-03
GS1-50-L4
SLY10-03
TL4-02
SL4-M5
UEDW10-8
SC4-01A
PDA 6X30
JDAS 32X25-CS4H1
SC4-01A
SC4-M5A
SC4-M5A
SC4-M5A
SC4-M5A
PDAS 6X30
-1-CS9N1
JDA 12X5
PDA 10X30-1
BDA 16X25
BDAS 16X20
SL4-M5
SC4-M5A
SL4-M5
SC4-M5A
MANIFOLD
KM0-M1141-000
MANIFOLD
KM0-M1141-000
TSS4-01 TSH8-01
PLUG
K40-M8598-000
UEF4
BF4
TL8-01TT8-01
stn.50stn.1 stn.2 stn.3
KM-06KM-06
VALVE ASSY E
KM8-M3410-E00
50123
TSS4-01
TSH8-01 PLUG
K40-M8598-000
UEF4
BF4
TL8-01TT8-01
stn.100
stn.51 stn.52 stn.53
KM-06KM-06
VALVE ASSY E
KM8-M3410-E00
10051 52 53
12
4
8
USD8-6
4 (Black)
AIR SOURCE
UY8
SL8-01
JOINT
3/8"
JOINT
3/8"
JOINT
3/8"
300V-03
KM22
TL8-01
SLH6-01
KM-05
UYD10-8
SC4-M5A
SC4-M5A
BDAS 10X5
VALVE KIT
KU0-M3410-410
(For spare)
SLH6-01
USD8-6
10
TL6-01M
EJECTER SINGLE L
KM5-M7174-500
(For spare)
EJECTER SINGLE C
KM5-M7174-400
(For spare)
SINGLE VALVE(head up/down)
KM1-M7162-100
(For spare)
EJECTER SINGLE R
KM5-M7174-600
(For spare)
EJECTER SINGLE R
KM5-M7174-600
(For spare)
SINGLE VALVE(head slow)
KM1-M7162-200
(For spare)
(Orange)
4
(Black)
4
(Orange)
4
(Black)
4
(Orange)
4
(Black)
4
10
8
8
6
8
8
8
8
4 (Black)
8 (Orange)
6 (Orange)
6 (Orange)
6 (Orange)
PAGE 7
YV100IIe (KM8)
Air circuit
JOINT
3/8"
JOINT PLUG
30PM
F300-03
-BG-A
MF300
-03-A
R300-03
SL12-03
GS1-50-L4
SLY10-03
TL4-02
SL4-M5
UEDW10-8
MANIFOLD
KM0-M1141-000
UEF4
BF4
TL8-01TT8-01
stn.20stn.1 stn.2 stn.3
KM-06KM-06
VALVE ASSY L
KM9-M3410-H10
20123
TSS4-01
TSH8-01
PLUG
K40-M8598-000
UEF4
BF4
TL8-01TT8-01
stn.100
stn.51 stn.52 stn.53
KM-06KM-06
VALVE ASSY E
KM8-M3410-E00
10051 52 53
10
12
8
USD8-6
4 (Black)
AIR SOURCE
TL8-01
SLH6-01
KM-05
8 (Orange)
6 (Orange)
6 (Orange)
UYD10-8
VALVE KIT
KU0-M3410-410
(For spare)
SLH6-01
6 (Orange)
USD8-6
TL6-01M
EJECTER SINGLE L
KM5-M7174-500
(For spare)
EJECTER SINGLE C
KM5-M7174-400
(For spare)
SINGLE VALVE(head up/down)
KM1-M7162-100
(For spare)
EJECTER SINGLE R
KM5-M7174-600
(For spare)
SINGLE VALVE(head slow)
KM1-M7162-200
(For spare)
UEF4
BF4
TL8-01TT8-01
stn.50stn.31 stn.232 stn.33
KM-06KM-06
VALVE ASSY R
KM9-M3410-100
4021 2 3
4 (Black)
VALVE KIT
KU0-M3410-410
(For spare)
EJECTER SINGLE R
KM5-M7174-600
(For spare)
OPTION
UC8
UT4
KM-11
040M10AJ 1 7 A040
-4E1-PLL 8 12 BP
SC4-01A
PDA 6X30
JDAS 32X25-CS4H1
SC4-01A
SC4-M5A
SC4-M5A
SC4-M5AJDA 12X5
PDA 10X30-1
BDA 16X25
SL4-M5
SL4-M5
(Orange)
4
(Black)
SL8-01
UT4
UT4
UT4
4
8
8
8
8
8
8
6
4
10
4 (Black)
PAGE 8
Harness parts list
KM8-000-0205
No Part No. Part Name Q'ty Remarks No Part No. Part Name Q'ty Remarks
1 KM8-M6600-000 HARNESS 1 39 KH5-M661V-002 HNS,1-14 (Y_FLEX PWR 1 J43
2 KM8-M6601-000 HARNESS 1 1 40 KH5-M662T-021 HNS,2-12 1 J34
3 KG2-M536A-010 HNS 301 (FG 450) 1 J82 41 KH5-M664G-012 HNS,4-4 1 J105
4 KG2-M536A-220 HNS,PE 150 6 J83,84,85,86,87,88 42 KK1-M664J-010 HNS,PE 1000 5 J903-6,930
5 KG2-M663R-002 HNS 3-11 :J61/J62 2 J61,J62 43 KK1-M667E-001 HNS,EMG SW 2 J165,J166
6 KG2-M664H-003 HNS 4-5 (SERIAL1) 1 J107 44 KK1-M66L1-000 HNS 17-1 (FG 700) 1 J6
7 KG2-M668K-110 HNS 8-7 (GATE IN/RST 1 J189 45 KM0-M536A-010 HNS,PE 70 2 J90,J91
8 KM6-M668T-000 HNS,8-12 (+24E,+24V) 2 J197,J198 46 KM0-M665A-001 HNS,PI1 1 J121
9 KG2-M669G-010 HNS,9-4 1 J204 47 KM0-M665E-002 HNS,PI2 1 J122
10 KG2-M669H-110 HNS 9-5 (GATE OUT) 1 J205 48 KM0-M665K-001 HNS,5-7 1 J127
11 KG2-M669R-110 HNS 9-11 (BUZZER) 1 J207 49 KM0-M666A-001 HNS,6-1 (C/R MO1) 1 J141
12 KG7-M662R-101 HNS 2-11 (Y_FLEX OT 1 J33 50 KM0-M666E-001 HNS,6-2 (C/R MO2) 1 J142
13 KG7-M664A-020 HNS,4-1(CMN,I/O R) 1 J101 51 KM0-M666F-001 HNS,6-3 (Y_FLEX XM) 1 J145
14 KG7-M664E-020 HNS,4-2(CMN,I/O L) 1 J102 52 KM0-M666J-001 HNS,6-6 (FLEX Z1R1_M 2 J146,J147
15 KG7-M664F-011 HNS 4-3 (I/O P23-P21 1 J103 53 KM9-M667A-000 HNS,7-1 (P23 CN8) 1 J161
16 KG7-M664J-001 HNS,4-6 (Y_FLEX I/O) 1 J108 54 KM0-M667E-011 HNS,7-2 1 J162
17 KG7-M668A-100 HNS 8-1 (P23 OT/ORG) 1 J181 55 90K30-444043 HNS,EARTH 1 J927
18 KG7-M668E-100 HNS 8-2 (P24 OT/ORG) 1 J182 56 KM1-M665H-001 HNS,5-5 1 J125
19 KG7-M668F-000 HNS 8-3 (P23-DI CONV 1 J185 57 KM1-M665J-001 HNS,5-6 1 J126
20 KG7-M668L-000 HNS 8-8 (P23-DI CONV 1 J190 58 KM1-M661W-002 HNS,1-15 (XFLEX HI/O 1 J44
21 KG7-M668N-111 HNS 8-10 1 J192 59 KM1-M66A3-013 HNS,10-3 1 J303
22 KG7-M668T-130 HNS 8-13 1 J196 60 KM1-M66A4-001 HNS,10-4 1 J304
23 KG7-M669F-103 HNS,9-3 1 J203 61 KM1-M66A5-001 HNS,10-5 1 J305
24 KG7-M66F6-010 HNS,12-6 (V.OUT) 1 J506 62 KM1-M66A6-002 HNS,10-6 1 J306
25 90K30-444180 HNS,EARTH 2 J71,J73 63 KM1-M66A7-001 HNS,10-7 1 J310
26 90K30-444085 HNS,EARTH 1 J926 64 KM1-M66A9-002 HNS,10-9 1 J309
27 90K30-245170 HNS,EARTH 1 J925 65 KM1-M66E1-001 HNS,11-1 1 J311
28 KH4-M664L-034 FDD CABLE ASSY 1 J110 66 KM1-M66E2-002 HNS,11-2 1 J312
29 KV0-M664M-000 HNS 4-9 1 J111 67 KM1-M66E3-101 HNS,11-3 1 J313
30 KH4-M664N-011 HNS.4-10(SERIAL2) 1 J120 68 KM1-M66E4-102 HNS,11-4 1 J314
31 KH4-M668M-010 HNS,8-9 (P24 DI ANC 1 J191 69 KM5-M661E-005 HNS,QF-TM11 1 J3
32 KH4-M668R-000 HNS 8-11 (SW LIMIT C 2 J193,J195 Cover limit SW 70 KM5-M661R-001 HNS 1-11 (XS11 PWR) 1 J26
33 KH4-M66A7-000 HARNESS 10-7 1 J307 71 KM6-M661G-002 HNS,TM11-TC11 1 J4
34 KH4-M66F5-012 HNS,VGA 1.5M+3M 1 J508 72 KM6-M661H-001 HNS,TC11-QF21 1 J11
35 KU8-M66F5-101 HNS,VGA 1.5M 1 73 KM6-M661J-001 HNS,TM11-QF31 1 J14
36 KU8-M66F5-301 HNS,VGA 3M 174KM7-M661K-000 HNS,1-7 (QF31-KM10) 1 J15
37 KU8-M65F5-000 VGA ADAPTER 2 75 KM7-M661L-000 HNS,1-8 (KM10-NF11) 1 J18
38 90K30-444050 HNS,EARTH 1 J76 76 KM7-M661N-000 HNS,1-10 (KM12-QF32) 1 J19
