A-75 A22-2 【 RX-7R 】デュアル搬送レ ーン 1 【 RX-7R 】 Dual Conveyor lane - 1 ｲﾗｽﾄ番号 Ref.No. 品番 Part Number Description 品名 個数 Q'ty 備考 Remarks 1 EZ1-492-207-1 1 SENSOR F IBER (FT-AL05) ﾌｱｲﾊﾞ ｾﾝｻ (FT-AL05) 3 2 EZ1-492-216-12 SENS…

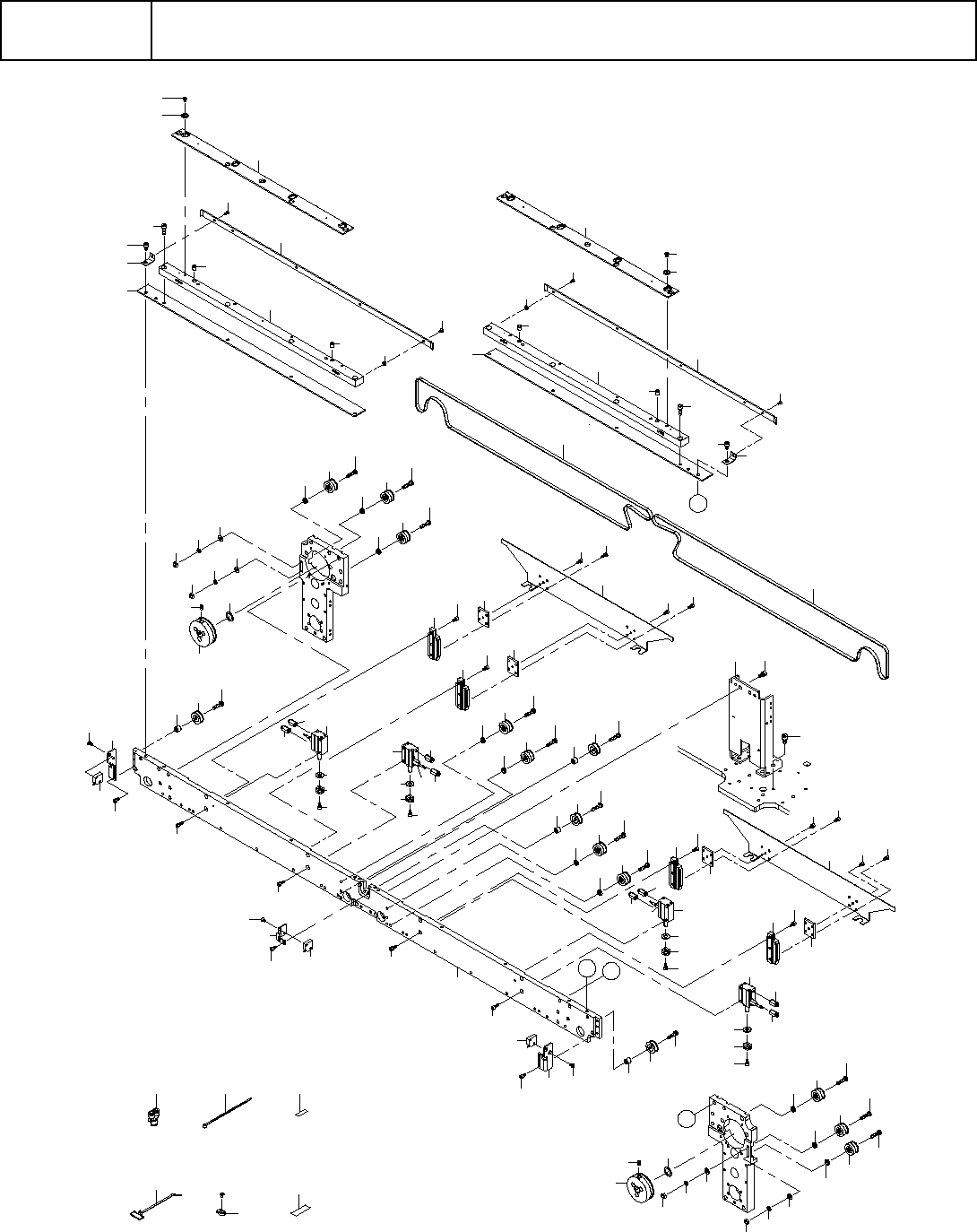

A-74
A22-2
【RX-7R】デュアル搬送レーン 1
【RX-7R】Dual Conveyor lane - 1
３８
４１
４１
３８
３７
３７
３７
３７
３６
３５
３４
３４
３２
３３
３３
３２
３１
３１
２５
１３
９
２５
２５
２５
２５
２５
２５
２５
２５
５７
５７
５７
５７
２８
２８
２７
２７
２２
２１２０
１９
１９
１９
１８
１７
１７
１７
１７
１６
１６
１６
１６
１４
１４
１３
１２
１１
１０
１５
１５
１５
９
１５
８
８
７
６
６
６
６
６
６
３
２
１
１
１
３９
４０
４０
３９
４０
３９
４０
３９
４０
３９
３９
４０
３９
４０
４０
３９
３９
４０
４２
４２
４３
４２
４２
４３
４３
４３
４３
４３
４３
４５
４４
４６
４６
４４
４５
４７
４７
４７
９
１３
２５
３８
４１
４３
４１
３８
４３
４８
４８
４９
４９
５０
５０
５１
５１
５２
５３
５４
５５
５６
３０
３０
２９
２５
２４
４６
４４
４５
Ａ
Ａ
４５
４４
４６
４０
３９
４３
４７
Ｂ
Ｂ
６
６
９
１３
２５
５５
２４
２５
２５
２４
２５
２４
A-75
A22-2
【RX-7R】デュアル搬送レーン 1
【RX-7R】Dual Conveyor lane - 1
ｲﾗｽﾄ番号
Ref.No.
品番
Part Number
Description
品名
個数
Q'ty
備考
Remarks
1 EZ1-492-207-11 SENSOR FIBER (FT-AL05) ﾌｱｲﾊﾞ ｾﾝｻ (FT-AL05) 3
2 EZ1-492-216-12 SENSOR ASSY ｾﾝｻ ASSY (ｸﾗﾝﾌﾟ 1) 1
3 EZ1-492-216-22 SENSOR ASSY ｾﾝｻ ASSY (ｸﾗﾝﾌﾟ 2) 1
4 EZ1-492-216-32 SENSOR ASSY ｾﾝｻ ASSY (ｸﾗﾝﾌﾟ 3) 1
5 EZ1-492-216-42 SENSOR ASSY ｾﾝｻ ASSY (ｸﾗﾝﾌﾟ 4) 1
6 EZ4-447-052-11 UNION (KQ2H02-M3G) HALF
ﾊ-ﾌ ﾕﾆｵﾝ (KQ2H02-M3G)
8
7 402-00902 CONVEYOR RAIL_LANE1 ｺﾝﾍﾞｱｰﾚｰﾙ_ﾚｰﾝ 1 1
8 402-00610 COLLAR(M3)_STEP ﾀﾞﾝﾂｷｶﾗｰ(M3) 8
9 402-00912 JOINT(A)CYLINDER ｼﾘﾝﾀﾞｰｼﾞｮｲﾝﾄ(A) 4
10 402-00985 SENSOR BRACKET(1) ｾﾝｻｰﾌﾞﾗｹｯﾄ(1) 1
11 402-00986 SENSOR BRACKET(2) ｾﾝｻｰﾌﾞﾗｹｯﾄ(2) 1
12 402-03788 SENSOR BRACKET(C2)
ｾﾝｻｰﾌﾞﾗｹｯﾄ(C2)
1
13 EZ4-454-328-01 STOPPER CLAMP ｸﾗﾝﾌﾟ ｽﾄﾂﾊﾟ 4
14 402-00911 CLAMP BRACKET ｸﾗﾝﾌﾟﾌﾞﾗｹｯﾄ 2
15 EZ4-454-500-01 CYLINDER (CDUJB8-11-DCP6468P) ｼﾘﾝﾀﾞ (CDUJB8-11-DCP6468P) 4
16 EZ4-454-501-01 GUIDE (LWLG9C1R52BS1EB09) ｶﾞｲﾄﾞ (LWLG9C1R52BS1EB09) 4
17 EZ4-454-519-01 SOLENOID (SBP5) BALL ﾎﾞ-ﾙ ﾌﾟﾗﾝｼﾞﾔ (SBP5) 4
18 EZ4-455-733-01 WYE (KJU02-00) UNION
ﾕﾆｵﾝ ﾜｲ (KJU02-00)
4
19 EZ4-702-261-02 BOLT HEXAGON SOCKET (M3X6) ﾛﾂｶｸ ｱﾅﾂｷ ｻﾗ ﾎﾞﾙﾄ (M3X6) 6
20 EZ4-716-434-11 TIE INSULOCK(AB100 BLACK) ｲﾝｼﾕﾛﾂｸ ﾀｲ(AB100 ｸﾛ) 6
21 EZ4-722-956-01 LABEL(SILVER) BLANK ﾌﾞﾗﾝｸ ﾗﾍﾞﾙ ｷﾞﾝ(TTC82YS-10) 2
22 EZ7-630-003-55 TUBE (TU0212B-20) 2MMX20M BLK ﾁﾕｰﾌﾞ(TU0212B-20) 2MMX20M BLK 7.08
23 EZ7-682-247-09 SCREW +K 3X6 SCREW +K 3X6 6
24 EZ7-683-401-04 BOLT HEXAGON SOCKET 3X4
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X4
16
25 EZ7-683-403-04 BOLT HEXAGON SOCKET 3X6 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X6 34
26 EZ7-683-404-04 BOLT HEXAGON SOCKET 3X8 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X8 8
27 EZ7-683-421-04 BOLT HEXAGON SOCKET 4X12 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ(C4X12) 8
28 402-00906 GUIDE RAIL_PC BOARD ｷﾊﾞﾝｶﾞｲﾄﾞﾚｰﾙ 2
29 SM-6040802-TN SCREW M4X0.7 L=8 ﾛｯｶｸｱﾅ ﾎﾞﾙﾄ M4X0.7 L=8 2
30 SM-6040602-TN SCREW
ﾛｯｶｸｱﾅ ﾎﾞﾙﾄ
2
31 400-00863 CONVEYOR_BELT_S ｺﾝﾍﾞｱﾍﾞﾙﾄ S 2
32 400-00850 DRIVE_PULLEY_F ﾄﾞﾗｲﾌﾞﾌﾟｰﾘ F 2
33 SM-8040602-TP SCREW M4X0.7 L=6 ﾄﾒﾈｼﾞ 4
34 402-00989 PLATE_BELT SUPPORT ﾍﾞﾙﾄｻﾎﾟｰﾄﾌﾟﾚｰﾄ 2
35 402-00990 PLATE_PC BOARD GUIDE(1) ｷﾊﾞﾝｶﾞｲﾄﾞﾌﾟﾚｰﾄ(1) 1
36 402-00991 PLATE_PC BOARD GUIDE(2)
ｷﾊﾞﾝｶﾞｲﾄﾞﾌﾟﾚｰﾄ(2)
1
37 402-03944 SCREW M2.5 L=6 ｻﾗﾈｼﾞ M2.5 L=6 10
38 E2111-715-0A0 CONVEYOR PULLEY ASM. ﾊﾝｿｳﾌﾟｰﾘ(ｸﾐ) 4
39 E2089-721-0A0 CONVEYOR PULLEY B ASM. ﾊﾝｿｳﾌﾟｰﾘ B ｸﾐ 10
40 402-00909 COLLAR(1)PULLEY ﾌﾟｰﾘｰｶﾗｰ(1) 10
41 402-00910 COLLAR(2)PULLEY ﾌﾟｰﾘｰｶﾗｰ(2) 4
42 SM-4042001-SC SCREW M4X0.7 L=20
ﾅﾍﾞｺﾈｼﾞ M4X0.7 L=20
4
43 SM-4041601-SC SCREW M4X0.7 L=16 ﾅﾍﾞｺﾈｼﾞ M4X0.7 L=16 10
44 NM-6040001-SC NUT M4X0.7 TYPE1 六角 ﾅｯﾄ M4X×0.7 1 種 4
45 WP-0430801-SC WASHER M4 ﾋﾗｻﾞｶﾞﾈ M4 4
46 WS-0410002-KN SPRING WASHER M4 ﾊﾞﾈｻﾞｶﾞﾈ M4 4
47 402-02038 SPACER GUIDE ｶﾞｲﾄﾞｽﾍﾟｰｻｰ 4
48 402-02219 WASHER_PC BOARD GUIDE
ｷﾊﾞﾝｶﾞｲﾄﾞﾖｳﾜｯｼｬｰ
8
49 402-00992 SUPPORT_PC BOARD GUIDE ｷﾊﾞﾝｶﾞｲﾄﾞｻﾎﾟｰﾄ 2
50 402-01297 SPACER_PULLEY ﾌﾟｰﾘｰｽﾍﾟｰｻｰ 2
A-76
A22-2
【RX-7R】デュアル搬送レーン 1
【RX-7R】Dual Conveyor lane - 1
ｲﾗｽﾄ番号
Ref.No.
品番
Part Number
Description
品名
個数
Q'ty
備考
Remarks
51 SM-1030552-TN PLATE SCREW M3 L=5 ｻﾗﾈｼﾞ M3 L=5 8
52 EZ4-701-529-01 TIE MOUNT (MB1) ﾀｲﾏｳﾝﾄ (MB1) 4
53 EZ4-536-831-01 TAPE FIXED ｺﾃｲﾃ-ﾌﾟ 8
54 402-09074 CENTER SUPPORT(1) ｾﾝﾀｰｻﾎﾟｰﾄ(1) 1
55 402-08796 RETAINER(2)_PC BOARD(SLIDE) ｷﾊﾞﾝｵｻｴ 2(ｽﾗｲﾄﾞ) 2
56 SM-6050802-TN SCREW
ﾛｯｶｸｱﾅ ﾎﾞﾙﾄ
4
57 EZ7-683-408-04 BOLT HEXAGON SOCKET 3X16 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X16 8
