- - 3. EF72F S /EF88 FS (3) 2 6 8 3 5 4 7 1 4 1 5 1 7 1 8 2 0 2 1 2 2 2 3 1 9 2 4 2 8 2 7 2 5 2 9 3 0 3 1 3 2 3 3 1 0 3 4 1 2 3 9 4 0 4 1 3 7 3 6 4 2 1 6 1 3 1 3 5 2 6 3 8 9 1 1
- -

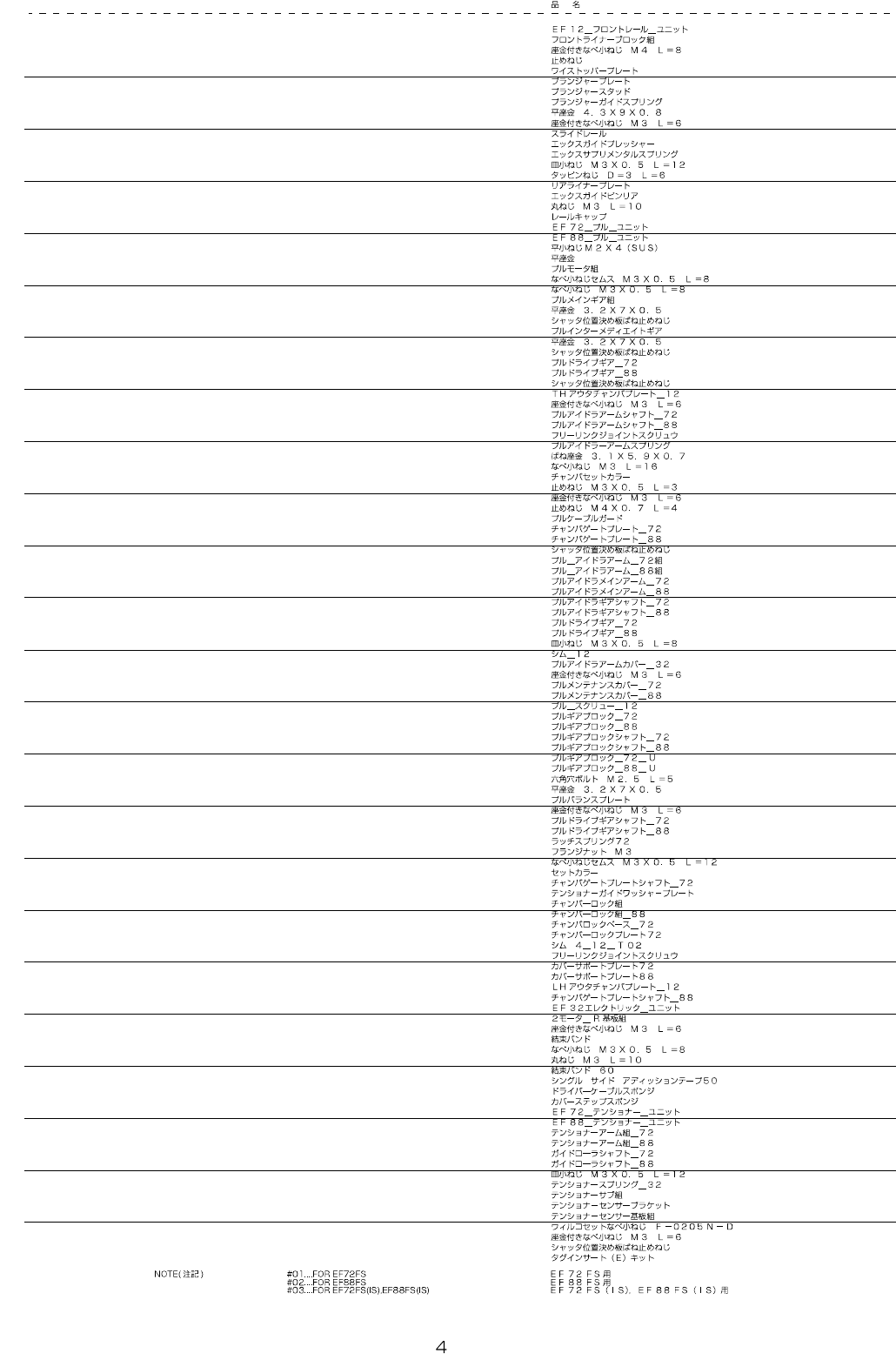

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-85433 EF12_FRONT_RAIL_UNIT 1
2 400-82693 FRONT_LINER_BLOCK_ASSY (1)
3 SL-4040881-SC SCREW M4 L=8 (2)
4 SM-8040412-TP SET SCREW M4 L=4 (2)
5 400-77520 Y_STOPPER_PLATE (1)
6 400-77519 PLUNGER_PLATE (1)
7 400-77516 PLUNGER_STUD (2)
8 400-68180 PLUNGER_GUIDE_SPRING (1)
9 WP-0430801-SC WASHER 4.3X9X0.8 (1)
10 SL-4030691-SC SCREW M3 L=6 (1)
11 400-77518 SLIDE_RAIL (1)
12 400-77521 X_GUIDE_PRESSURE (1)
13 400-77522 X_SUPPLEMENTAL_SP (1)
14 SM-1031201-SC SCREW M3X0.5 L=12 (1)
15 ST-1030651-SN TAPPING SCREW D=3 L=6 (1)
16 400-68255 REAR_LINER_PLATE (1)
17 400-68191 X_GUIDE_PIN_REAR (1)
18 SM-3031052-TN SCREW M3 L=10 (7)
19 400-78576 RAIL_CAP 1
20
#01
401-32191 EF72_PULL_UNIT 1
21
#02
401-32205 EF88_PULL_UNIT 1
22 400-85419 SCREW M2X4 (2)
23 WP-0220300-SC WASHER (2)
24 400-68902 PULL MOTOR ASM (1)
25 SL-4030881-SC SCREW M3X8 (1)
26 SM-4030801-SC SCREW M3 X 8 (1)
27 400-82695 PULL_MAIN_GEAR_ASSY (1)
28 WP-0320501-SC WASHER M3 (1)
29 E8226-706-000 SCREW (1)
30 400-68671 PULL_INTERMEDIATE_GEAR (1)
31 WP-0320501-SC WASHER M3 (1)
32 E8226-706-000 SCREW (1)
33
#01
401-13312 PULL_DRIVE_GEAR_72 (1)
34
#02
401-13361 PULL_DRIVE_GEAR_88 (1)
35 E8226-706-000 SCREW (1)
36 400-85360 TH_OUTER_CHAMBER_PLATE_12 (1)
37 SL-4030691-SC SCREW M3 L=6 (1)
38
#01
401-13322 PULL_IDLER_MAIN_ARM_SH_72 (1)
39
#02
401-13323 PULL_IDLER_MAIN_ARM_SH_88 (1)
40 E1120-706-C00 FREE LINK JOINT SCREW (1)
41 400-77541 PULL_IDLER_ARM_SPRING (2)
42 WS-0310002-KN SPRING WASHER M3 (1)
43 SM-4031601-SC SCREW M3 L=16 (1)
44 401-13326 CHAMBER_SET_COLLAR_72 (1)
45 SM-8030302-TP SCREW M3X0.5 L=3 (1)
46 SL-4030691-SC SCREW M3 L=6 (2)
47 SM-8040402-TP SCREW M4X0.7 L=4 (1)
48 400-85416 PULL_CABLE_GUARD (1)
49
#01
401-13324 CHAMBER_GATE_PLATE_72 (1)
50
#02
401-13370 CHAMBER_GATE_PLATE_88 (1)
51 E8226-706-000 SCREW (1)
52
#01
401-32192 PULL_IDLER_ARM_72_ASSY (1)
53
#02
401-32206 PULL_IDLER_ARM_88_ASSY (1)
54
#01
401-13318 PULL_IDLER_MAIN_ARM_72 (1)
55
#02
401-13367 PULL_IDLER_MAIN_ARM_88 (1)
56
#01
401-13319 PULL_IDLER_GEAR_SH_72 (1)
57
#02
401-13368 PULL_IDLER_GEAR_SH_88 (1)
58
#01
401-13312 PULL_DRIVE_GEAR_72 (1)
59
#02
401-13361 PULL_DRIVE_GEAR_88 (1)
60 SM-1030801-SC SCREW M3 L=8 (1)
61 400-85417 SHIM_12 (1)
62
#01
400-91686 PULL_IDLER_ARM_COVER_32 (1)
63 SL-4030691-SC SCREW M3 L=6 (2)
64
#01
401-13320 PULL_MAINTENANCE_COVER_72 (1)
65
#02
401-13369 PULL_MAINTENANCE_COVER_88 (1)
66 400-85468 PULL_SCREW_12 (1)
67
#01
401-13314 PULL_GEAR_BLOCK_72 (1)
68
#02
401-13363 PULL_GEAR_BLOCK_88 (1)
69
#01
401-13316 PULL_GEAR_BL_SH_72 (4)
70
#02
401-13365 PULL_GEAR_BL_SH_88 (4)
71
#01
401-13315 PULL_GEAR_BLOCK_72_U (1)
72
#02
401-13364 PULL_GEAR_BLOCK_88_U (1)
73 SM-6850502-TN SCREW M2.5 L=5 (1)
74 WP-0320501-SC WASHER M3 (2)
75 401-13321 PULL_BALANCE_PLATE (1)
76 SL-4030691-SC SCREW M3 L=6 (1)
77
#01
401-13313 PULL_DRIVE_GEAR_SH_72 (1)
78
#02
401-13362 PULL_DRIVE_GEAR_SH_88 (1)
79 401-31901 LATCH_SPRING_72 (1)
80 NM-3034000-SF FLANGE NUT (2)
81 SL-4031291-SC SCREW M3X12 (2)
82 400-91682 SET_COLLER (1)
83
#01
401-13325 CHAMBER_GATE_PLATE_SH_72 (1)
84 400-68247 TENSIONER_GUIDE_WP (2)
85 401-32193 CHAMBER_LOCK_ASSY (1)
86
#02
401-32334 CHAMBER_LOCK_ASSY_88 (1)
87 401-13332 CHAMBER_LOCK_BASE_72 (1)
88 401-31900 CHAMBER_LOCK_PLATE_72 (1)
89 401-13375 SHIM_RING_4_12_T02 (1)
90 E1120-706-C00 FREE LINK JOINT SCREW (1)
91 401-31902 COVER_SUPPORT_PLATE_72 (1)
92
#02
401-31903 COVER_SUPPORT_PLATE_88 (1)
93 400-85359 LH_OUTER_CHAMBER_PLATE_12
(1)
94
#02
401-13371 CHAMBER_GATE_PLATE_SH_88 (1)
95 400-91581 EF32_ELECTRIC_UNIT 1
96 401-44088 2 MOTORS_R PCB ASM (1)
97 SL-4030691-SC SCREW M3 L=6 (3)
98 HX-0015100-00 CLIP WITH CLAMP (2)
99 SM-4030801-SC SCREW M3 X 8 (1)
100 SM-3031052-TN SCREW M3 L=10 (1)
101 EA-9500B00-00 CLIP CV-70S (8)
102 400-95428 SINGLE SIDE ADHESION TAPE50 (0.06)
103 400-69656 DRIVER_CABLE_SPONGE (1)
104 400-69655 COVER_STEP_SPONGE (1)
105
#01
401-32189 EF72_TENSIONER_UNIT 1
106
#02
401-32203 EF88_TENSIONER_UNIT 1
107
#01
401-32190 TENSIONER_ARM_ASSY_72 (1)
108
#02
401-32204 TENSIONER_ARM_ASSY_88 (1)
109
#01
401-13310 GUIDE_ROLLER_SH_72 (1)
110
#02
401-13359 GUIDE_ROLLER_SH_88 (1)
111 SM-1031201-SC SCREW M3X0.5 L=12 (1)
112 400-91665 TENSIONER_SPRING_32 (1)
113 400-82698 TENSIONESENOR_SUB_ASSY (1)
114 400-77532 TENSIONER_SENSOR_BRKT (1)
115 400-55018 TENSIONER SENS PCB ASM (1)
116 401-02832 WILCO F 0205N D (2)
117 SL-4030691-SC SCREW M3 L=6 (1)
118 E8226-706-000 SCREW (1)
119
#03
400-73828 TAG INSERT(E) KIT 1
- -
3. EF72FS/EF88FS (3)
2
6
8
3
5
4
7
1 4
1 5
1 7
1 8
2 0
2 1
2 2
2 3
1 9
2 4
2 8
2 7
2 5
2 9
3 0
3 1
3 2
3 3
1 0
3 4
1 2
3 9
4 0
4 1
3 7
3 6
4 2
1 6
1 3
1
3 5
2 6
3 8
9
1 1
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-32183 EF72_GRIP_UNIT 1
2 400-69647 GRIP (1)
3 SM-4031201-SC SCREW M3 X 12 (5)
4 NM-6030002-SC NUT M3X0.5 TYPE2 (5)
5 400-72388 SW PANEL (1)
6 400-74123 FFC (1)
7 400-68223 COVER_STUD_M (3)
8 400-69649 PANEL_COVER (1)
9 400-85431 EF12_CLAMP_UNIT 1
10 HD-0027700-00 SENSOR (1)
11 400-68992 LOCK SENS WIRE ASM (1)
12 SL-4030691-SC SCREW M3 L=6 (2)
13 400-85457 EF12_CLAMP_LEVER_ASSY (1)
14 400-69663 LOCK_BUSHING (1)
15 400-77500 LOCK_STOPPER_BOLT (1)
16 400-69662 LOCK_SPRING (1)
17 400-77500 LOCK_STOPPER_BOLT (1)
18 400-69659 LOCK_SP_STOPPER (1)
19 400-77500 LOCK_STOPPER_BOLT (1)
20 SM-1040601-SC SCREW M4X0.7 L=6 (1)
21 400-84401 LOCK_PLATE_R_ASSY (1)
22 400-85458 LOCK_RELEASE_LEVER_ASSY_12 (1)
23 400-68203 CLAMP_SH_F (1)
24 400-77492 CLAMP_SH_M (1)
25 400-77497 ARM_LINK_PIVOT_SH_F (1)
26 400-77496 ARM_LINK_PIVOT_SH_M (1)
27 400-68667 LOCK_LEVER_FLANGE (1)
28 SM-1040601-SC SCREW M4X0.7 L=6 (1)
29 400-68213 LEVER_CAP (1)
30 SM-1030801-SN SCREW M3X0.5 L=8 (1)
31 NM-6030002-SC NUT M3X0.5 TYPE2 (1)
32 400-77499 ARM_LINK_GUIDE_SH (1)
33 PS-0400122-KP SPRING PIN (1)
34 400-85411 CLAMP_SENSOR_BRKT_12 (1)
35 400-85434 EF12_RIAR_RAIL_UNIT 1
36 400-68195 BOTTOM_GUIDE_BLOCK (1)
37 400-68251 COVER_STUD_S (1)
38 400-77517 MAIN_CONNECTOR_BRKT (1)
39 SM-1040601-SC SCREW M4X0.7 L=6 (2)
40 400-68993 INPUT WIRE ASM (1)
41 SL-4020691-SC SCREW M2 L=6 (2)
42 400-68223 COVER_STUD_M (1)
