ZSfdr_KLJ_rev06_PartsList_1910_OK.pdf - 第35页
19 15 3 3 12 26 3 34 36 21 16 1 42 25 38 17 20 2 37 18 43 23 6 39 40 43 41 24 22 43 11 10 9 14 13 14 5 7 4 8 4 35 33 28 27 30 31 29 32 7-1 KLJ-1910 Guide / Lever 72mm OLD OLD 19 15 3 3 12 26 3 34 36 21 16 1 42 25 38 17 2…
1
10
4
6
5
14
9
13
12
7
13
11
8
3
2
6-6
KLJ-1910
Box
56mm
OPTION
1
10
4
6
5
14
9
13
12
7
13
11
8
3
2
OLD
<Note-1> In case of your parts order, the concerned feeder's serial number is required.
部品発注の際には、該当するフィーダーのシリアル番号が必要です。
<Note-2> It is available for sales. It is fixed with [14] adhesive.
販売可能です。 [14] の接着剤で固定します。
<Note-3> For details of the built-in & connection-path, see page [6-5].
組込と接続経路の詳細については、[6-5] ページを参照してください。
NO
Parts_No.
Parts_Name
Q'ty
Remarks
Change
Compati
1
KLJ-MC56Y-01
TOP TAPE BOX COMP.
1
1-1
_
*deleted
1
ML30105
2014/07/28
-
2
KLJ-MC561-A0
TOP TAPE BOX ASSY.
1
2-1
_
*deleted
1
ML30105
2014/07/28
-
3
KHJ-MC165-00
MAGNET,TAIL
1
3-1
_
*deleted
1
ML30105
2014/07/28
-
4
KLJ-MC76Y-S0
PARTS,TOP TAPE BOX
1
<Note-1> ML30105
2014/07/28
OK
5
KLJ-MC56Y-01
TOP TAPE BOX COMP.
1
ML30105
2014/07/28
OK
6
KLJ-MC561-A0
TOP TAPE BOX ASSY.
1
not for sale : MM80133
2015/11/11
-
7
KLJ-MC561-01
BOX,TOP TAPE
1
not for sale
2015/11/11
-
8
KLJ-MC164-00
CAP,TOP TAPE BOX
1
<Note-2> MM80133
2015/11/11
OK
9
KHJ-MC165-00
MAGNET,TAIL
1
assembled at factory
-
10
KLJ-MC70C-S0
SEAL,MAIN LABEL
1
<Note-1> [QR code] added
2017/06/12
OK
11
KLJ-MC1AA-00
SWITCH,OPERATION
1
<Note-3> ML30105
2014/07/28
OK
12
KLJ-MC1A1-00
BOX,EL
1
13
98502-03006
SCREW,PAN HEAD
4
14
KLJ-M86B0-00
ADHESIVE
1
<OP> AronAlpha Extra2000 2g
2015/12/09
-
19
15
3
3
12
26
3
34
36
21
16
1
42
25
38
17
20
2
37
18
43
23
6
39
40
43
41
24
22
43
11
10
9
14
13
14
5
7
4
8
4
35
33
28
27
30
31
29
32

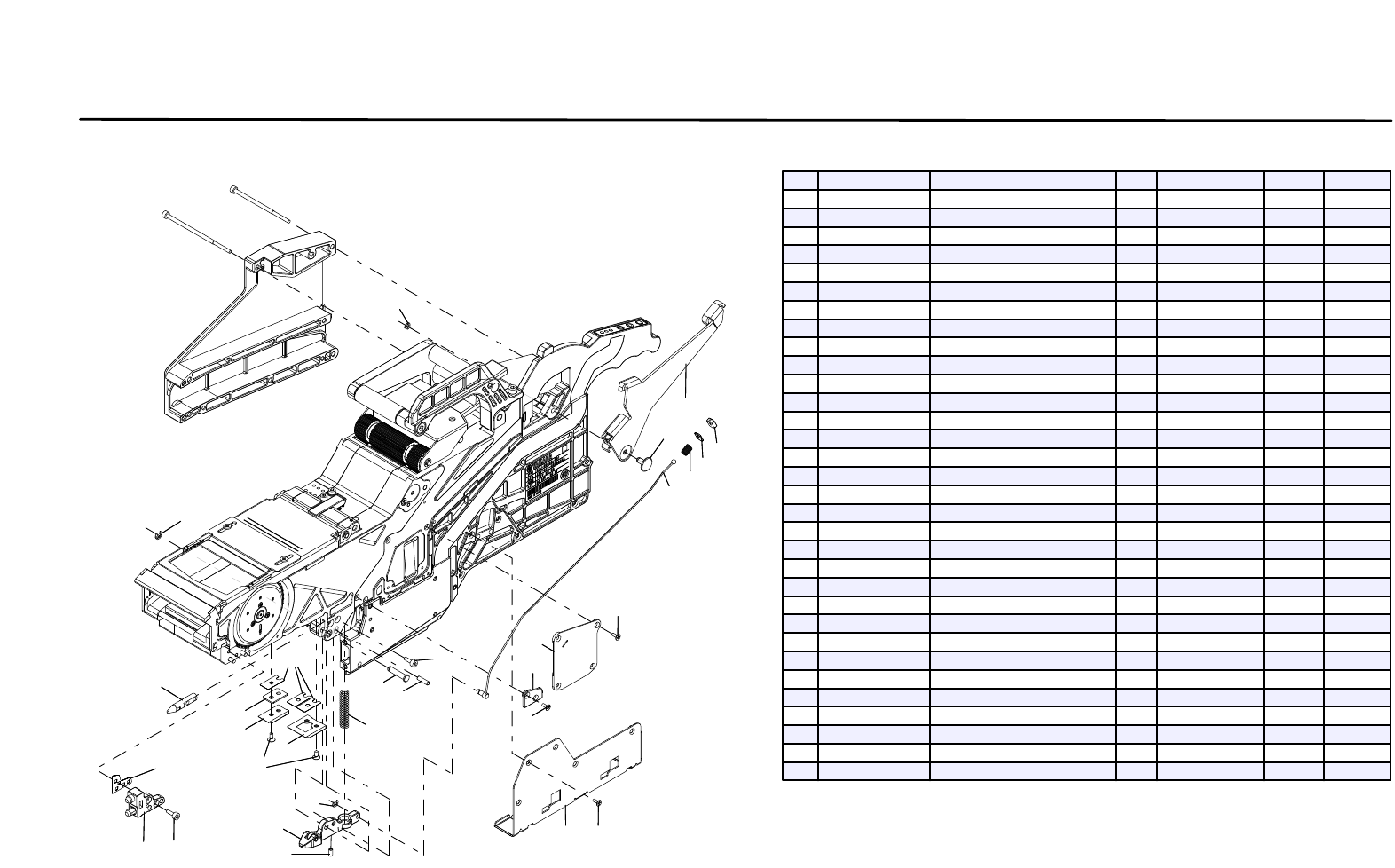

7-1
KLJ-1910
Guide / Lever
72mm
OLD
OLD
19
15
3
3
12
26
3
34
36
21
16
1
42
25
38
17
20
2
37
18
43
23
6
39
40
43
41
24
22
43
11
10
9
14
13
14
5
7
4
8
4
35
33
28
27
30
31
29
32
<Note-1> In case of your parts order, the concerned feeder's serial number is required.
部品発注の際には、該当するフィーダーのシリアル番号が必要です。
NO
Parts_No.
Parts_Name
Q'ty
Remarks
Change
Compati
1
KHJ-MC60J-00
PIN,PARALLEL
3
2
KHJ-MC104-00
RAIL,UNDER
1
3
KLJ-MC80C-S0
SEAL,MAIN LABEL
1
<Note-1>
3-1
KLJ-MC80C-S0
SEAL,MAIN LABEL
1
<Note-1> [QR code] added : MP50061
2017/06/12
OK
4
KLJ-MC841-00
TAPE GUIDE ASSY.
1
4-1
KLJ-MC841-01
TAPE GUIDE ASSY. 72
1
H025412
2018/07/12
OK
5
KHJ-MC244-00
LEVER,TAPE GUIDE R
1
6
KHJ-MC84A-00
SHAFT,LEVER
1
7
KLJ-MC845-00
LEVER,TAPE GUIDE F
1
8
KHJ-MC84E-00
SHAFT,LEVER
1
9
KHJ-MC146-02
SPRING,TAPE GUIDE R
1
10
KLJ-MC547-00
SPRING,TAPE GUIDE F
1
11
KHJ-MC84F-00
BASE,LEVER R
1
12
KLJ-MC54Y-00
PLATE,STOPPER
1
13
KLJ-MC1H1-00
COLLOR,STOPPER R
1
14
91312-03006
BOLT,HEX.SOCKET HEAD
2
15
KLJ-MC862-S0
PARTS,BOX COVER
1
<Note-1> MP90052
2017/09/28
-
16
KLJ-MC562-00
COVER, TOP TAPE BOX
1
17
91317-03060
BOLT,HEX.SOCKET HEAD
6
18
90990-01J046
BOLT,HEX.SOCKET HEAD
1
19
KLJ-MC863-S0
PARTS,TAIL COVER
1
<Note-1> MM60163
2015/07/10
-
20
KLJ-MC863-00
COVER,TAIL
1
21
KLJ-MC875-00
PIN,TAIL COVER
1
22
KLJ-MC86V-00
P/O LEVER ASSY.
1
23
KHJ-MC86B-00
SHAFT,P/O LEVER 2
1
24
KHJ-MC26E-00
SPRING,P/O LEVER
1
25
90990-09J008
SCREW,FLAT HEAD
2
26
KLJ-MC281-01
HANDLE W
1
27
KLJ-MC88G-00
SHAFT,HANDLE SUPPORT
1
28
KHJ-MC53N-00
PIN,DOWEL
1
29
91317-05055
BOLT,HEX.SOCKET HEAD
1
30
KLJ-MC88M-00
STAY,HANDLE
1
31
KLJ-MC88N-00
BAR,HANDLE
1
32
90990-01J059
BOLT,HEX.SOCKET HEAD
1
33
91317-05025
BOLT,HEX.SOCKET HEAD
1
34
91312-04010
BOLT,HEX.SOCKET HEAD
2
35
91317-04012
BOLT,HEX.SOCKET HEAD
1
36
99480-05014
PIN, PARALLEL
1
37
98902-03005
SCREW,BINDING HEAD
2
38
KLJ-MC5F4-00
PLATE,SUPPORT
1
39
KHJ-MC1A9-00
CONNECTOR,BOARD
1
40
90166-02JA06
SCREW,PAN HEAD
2
41
KLJ-MC1AM-00
SHIELD,CONNECTOR
1
42
92A08-03306
SCREW, SET
1
M3*L6
43
92A08-03303
SCREW, SET
3
M3*L3
16
31
31
32
17
22
8
5
26
7
29
14,15
6
30
20
24
18
19
21
23
4
25
17
3
27
28
17
9,10,11,12,13
1
2
7-2
KLJ-1910
Clamp / Block
72mm
<Note-1> [Q'ty] becomes 0, 1, 2, 3...
<Note-2> [Q'ty] becomes 0, 3, 6, 9...
「Q'ty」 は、0・1・2・3・・・になります。
「Q'ty」 は、0・3・6・9・・・になります。
16
31
31
32
17
22
8
5
26
7
29
14,15
6
30
20
24
18
19
21
23
4
25
17
3
27
28
17
9,10,11,12,13
1
2
NO
Parts_No.
Parts_Name
Q'ty
Remarks
Change
Compati
1
KLJ-MC10W-00
FRONT BLOCK ASSY.
1
2
91317-03008
BOLT,HEX.SOCKET HEAD
2
3
KHJ-MC105-00
PIN,TAIL
1
4
91312-03008
BOLT,HEX.SOCKET HEAD
2
5
KHJ-MC106-00
PLATE,UNDER
1
6
KHJ-MC206-00
PLATE,UNDER
1
7
KLJ-MC80X-00
SPACER,PLATE UNDER
1
8
98707-03006
SCREW,FLAT HEAD
4
9
KHJ-MC107-00
SHIM,FRONT BLOCK 1
1
T0.01 <Note-1>
10
KHJ-MC108-00
SHIM,FRONT BLOCK 2
1
T0.05 <Note-1>
11
KHJ-MC10G-00
SHIM,FRONT BLOCK 3
1
T0.10 <Note-1>
12
KHJ-MC10U-00
SHIM,FRONT BLOCK 4
1
T0.03 <Note-1>
13
KHJ-MC10V-00
SHIM,FRONT BLOCK 5
1
T0.02 <Note-1>
14
KHJ-MC109-00
SHIM,PLATE UNDER 1
3
T0.01 <Note-2>
15
KHJ-MC10A-00
SHIM,PLATE UNDER 2
3
T0.05 <Note-2>
16
KLJ-MC2F3-00
BRKT. W,REEL HOLDER
1
17
90990-09J008
SCREW,FLAT HEAD
11
18
KHJ-MC183-00
SPACER,TENSION 1
1
19
KHJ-MC184-00
SPACER,TENSION 2
1
<Note-1>
20
KLJ-MC186-00
WIRE,UNCLAMP
1
21
KHJ-MC187-00
SPRING,TENSION
1
22
KLJ-MC18H-00
CLAMP LEVER ASSY.
1
23
KHJ-MC289-00
PIN,CLAMP
1
24
90440-01J030
CIRCLIP
1
25
KHJ-MC139-00
SHAFT,IDLE GEAR 1
1
26
KHJ-MC18A-00
SPRING,CLAMP
1
27
KLJ-MC18B-00
COVER,WIRE 1
1
28
KLJ-MC28C-01
COVER W,WIRE 2
1
29
KLJ-MC18K-00
LEVER,UNCLAMP ASSY.
1
30
KLJ-MC18L-00
PIN,LEVER UNCLAMP
1
31
90990-14J001
CIRCLIP
2
32
92A08-03306
SCREW, SET
1
