General
Design Basic Contact Probe
Family F100
Pitch [mm/mil] 2.54 / 100
Electrical specifications
Typical contact resistance [mOhm] 20.00
Mechanical specifications
Spring force [cN] 200.00
Nominal travel [mm] 4.30
Maximum travel [mm] 6.40
Dimensions
Total length [mm] 33.30
Tip style diameter [mm] 1.50
Barrel diameter [mm] 1.37
Materials & surfaces
Plunger material Steel
Plunger plating Longtime Gold
Barrel material Bronze
Barrel plating Gold
Spring material High-grade steel
Spring plating Silver
Accessories
Basic Contact Probes
Order code 1000078
Family drawing

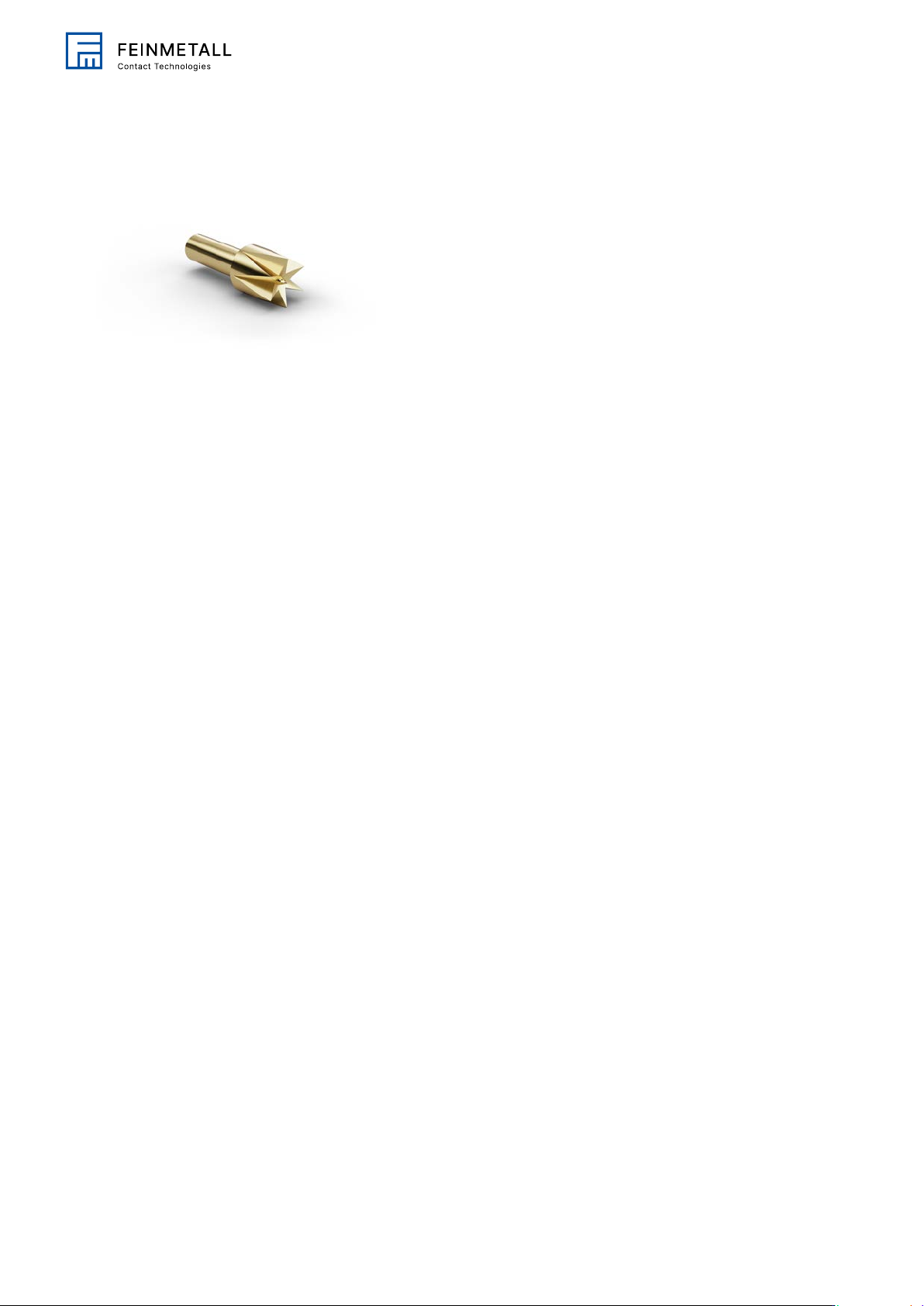

Tip style 1
