Page 3 of 9
3. H02 Head Specifications
Item Details
Usable nozzles H01 head standard nozzles, custom nozzles, mechanical chucks
H02 head dedicated short nozzles, short mechanical chucks
Nozzle station Same as used for the H01 head
Part size 1608 to 74 x 74 mm (32 x 180 mm)
Note: Holder A is 32 x 120 mm
Part height 25.4 mm (1)
Production
throughput
M3 4800 CPH
M3S 4800 CPH
M6 4400 CPH
M6S 4900 CPH
Note 1:
• The height is up to 6 mm (the pin length and part height added together) if the nozzle size X or Y is 36
mm or more for custom nozzles.
• The height is up to 21.5 mm (the pin length and part height added together) if the nozzle size X or Y is 36
mm or more for mechanical chucks.
Page 4 of 9
4. Production Examples
4.1. Parts taller than 17.4 mm (part height and pin length) are placed using nozzles
The H02 head can place parts with a height of 25.4 mm. When parts taller than 17.4 mm
(includes part height and pin length) are placed with a nozzle, a H02 head dedicated short
nozzle must be used.
1. Job settings
H02 head dedicated short nozzles are standard nozzles and do not have to be specified in

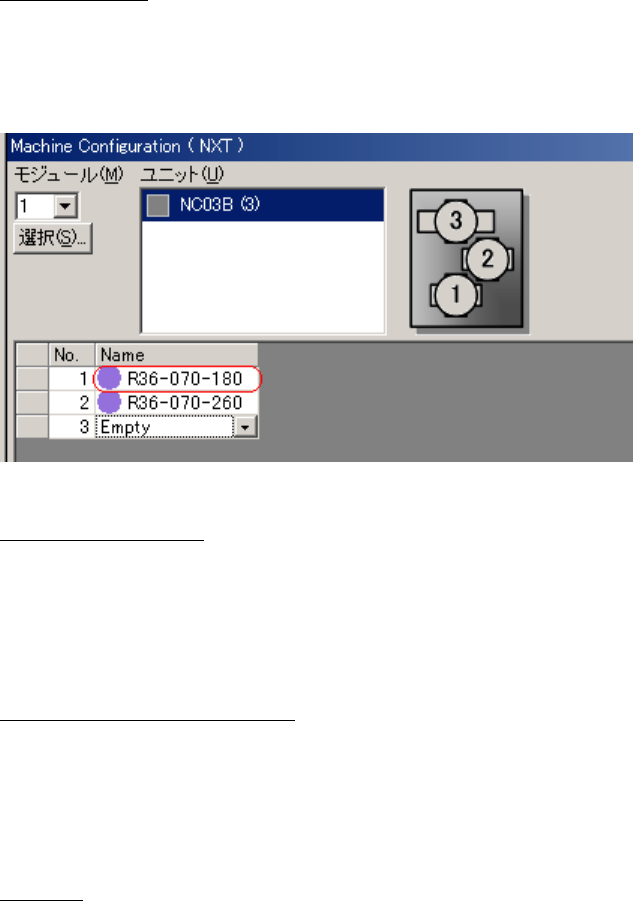

the [Nozzle Name] setting. Select short nozzles for the H02 head in the [Nozzle Changer
Setup].
2. Optimizing the job
Optimize the job. Parts taller than 17.4 mm (adding the part height and pin length together)
are allocated to use the short nozzle and parts 17.4 mm or less are allocated to use standard
length nozzles.
3. Changeover and production
Set the H02 head dedicated short nozzles in the nozzle station and then begin production. If
the nozzle is not set, guidance is displayed to inform the operator to set the correct nozzle.
Follow the guidance if it appears on the operation panel.
Cautions
• H02 head dedicated short nozzles cannot be used with the H01 head.
• A data check error occurs if the H02 head dedicated short nozzles or custom nozzles of a
similar length are specified in the [Nozzle Name] setting for parts 17.4 mm or less in
The last 3 digits indicate the nozzle
length. 260 are standard nozzles and 180
are short nozzles.
Page 5 of 9
height (includes part height and pin length)
• A data check error occurs if the H02 head dedicated short nozzles or custom nozzles of a
similar length are not set when there are parts taller than 17.4 mm in height (includes part
height and pin length).
4.2. Parts taller than 21.5 mm (part height and pin length) are placed using mechanical
chucks
The H02 head can place parts with a height of 25.4 mm. When parts taller than 21.5 mm
(including part height and pin length) are placed with a mechanical chuck, a H02 head
dedicated short mechanical chuck must be used.
1. Job settings
H02 head dedicated short mechanical chucks are standard mechanical chucks and have to
be specified in the [Nozzle Name] setting. Select short mechanical chucks for the H02 head
in the [Nozzle Changer Setup].
2. Optimizing the job
Optimize the job.
3. Changeover and production
Set the H02 head dedicated short mechanical chuck in the nozzle station and then begin
production. If the mechanical chuck is not set, guidance is displayed to inform the operator to
set the correct mechanical chuck. Follow the guidance if it appears on the operation panel.
Cautions
• H02 head dedicated short mechanical chucks cannot be used with the H01 head.
• A data check error occurs if the H02 head dedicated short mechanical chucks are
specified in the [Nozzle Name] setting for parts 21.5 mm or less in height (includes part
height and pin length)
• A data check error occurs if the H02 head dedicated short mechanical chucks are not
specified in the [Nozzle Name] setting for part sizes taller than 21.5 mm (includes part
height and pin length).
