LA100-C Level Detection System n Easy set-up and operation n Flexibility in material use n Safe, reliable detection The new LA100-C level detection system is specifically offered as an auxiliary control feature for Nords…

100%1 / 2

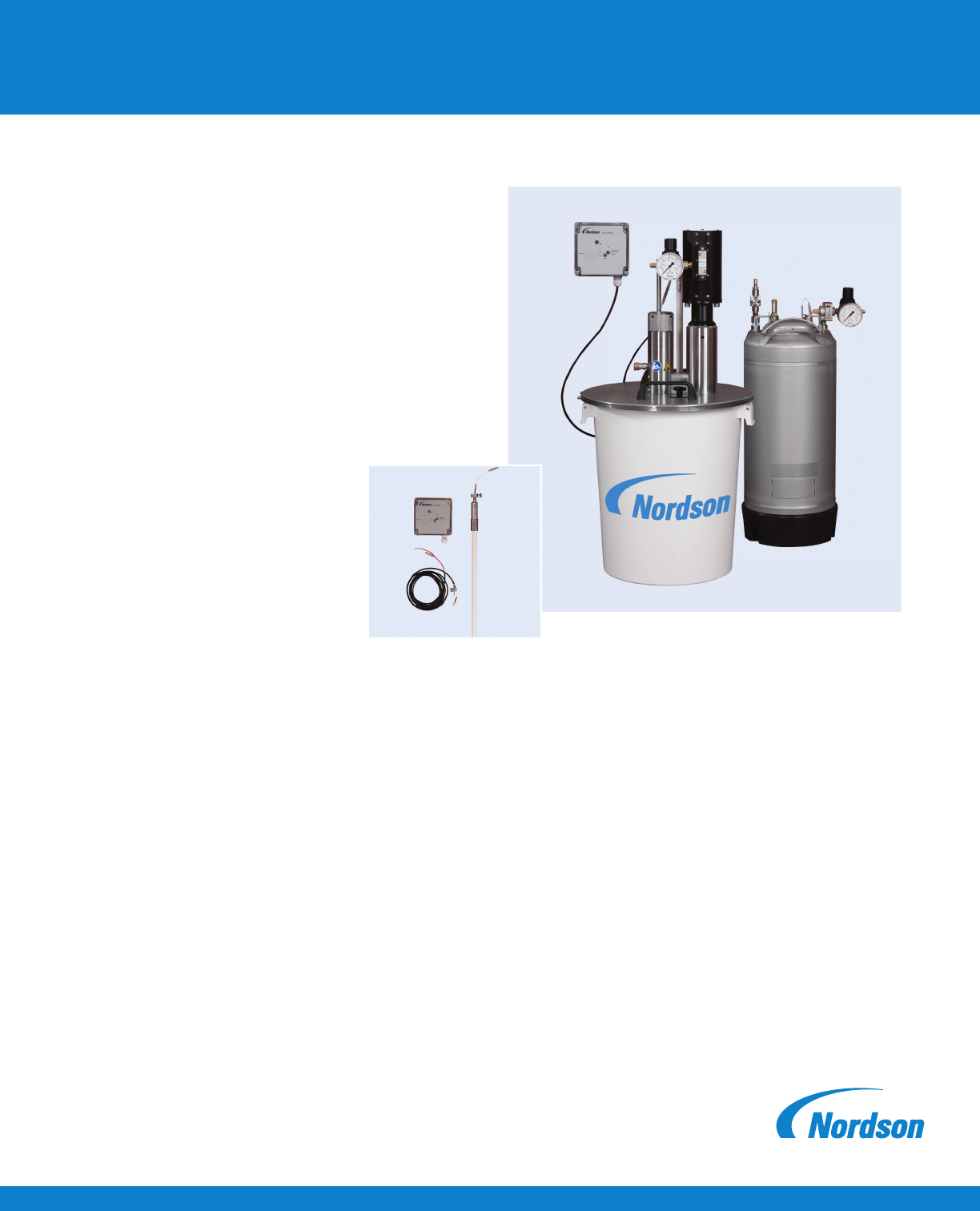

LA100-C Level Detection System
n
Easy set-up and operation
n
Flexibility in material use
n
Safe, reliable detection
The new LA100-C level detection system is specifically offered as
an auxiliary control feature for Nordson’s liquid adhesive pressure
tanks and liquid adhesive pump systems.
The system can also be used for simple retrofits of other installed
containers to detect liquids, lotions, perfumes, wax, granules, etc.
for conductive or non-conductive materials.
The system features a capacitive-sensor probe with a single-switch
point and an evaluation unit. The function is based on a unique
measuring principle that has been used in Nordson hot melt
equipment. This principle provides great flexibility in materials
and forms, and makes the system unaffected by material deposits,
viscosities, and material densities.
The system provides accurate, reliable results.
Benefits:
n
Safe, consistent level detection avoids production interruptions
caused by empty containers.
n
Use as stand-alone system but also integrates into customers’
parent systems.
n
Potentially saves valuable labor time by eliminating redundant
manual level check, especially when the supply system is placed
offside. Labor is freed to perform other tasks.
n
Reduce the risk of adhesive contamination through unnecessary
tank opening or lifting pump lids.
n
Very robust sensor is virtually maintenance free.
n
Easy, fast set-up. System comes pre-calibrated suitable for most
liquids.
Simple, easy-to-use level
detection system for
efcient, uninterrupted
production processes
Nordson Corporation
11475 Lakeeld Drive
Duluth, GA 30097-1511
(800) 683-2314
nordson.com/adhesive
LA100-C Level Detection System
PAL-14-5876
Reissued 9/14
© 2012 Nordson Corporation
All Rights Reserved.
Printed in U.S.A.
Nordson reserves the right to
make design changes between
printings.
For more
information,
speak with your
Nordson
representative
or contact
your Nordson
regional office.
United States
Duluth, Georgia
(800) 683-2314 Phone
(866) 667-3329 Fax
Canada
Markham, Ontario
(800) 463-3200 Phone
(905) 475-8821 Fax
Europe
Erkrath, Germany
(49) 211-9205-0 Phone
(49) 211-254658 Fax
Japan
Tokyo, Japan
(81) 3-5762-2700 Phone
(81) 3-5762-2701 Fax
Asia/Australia/
Latin America
Amherst, Ohio
(440) 985-4797 Phone
(440) 985-1096 Fax
Find us on:
Technical Data
Evaluation Unit Dimensions 120 x 120 x 60 mm
Periphery Connection Relays 1 & 2 max. 120 VDC / 1 A - 250 VAC / 4 A
Power Supply
Standard Version 105 -125 / 207 - 253 VAC; 50 / 60 Hz
Low Voltage Version 18 - 36 VDC; 50 / 60 Hz
Current Consumption Typ. 3 VA
Sensor Probe Dimensions diam.: 16mm; length: approx. 410mm
Adapter Threads M10 (LA120 Tank)
BSP 1” (LB140 Tank)
M22 (Piston Pump Lid)
Degree of Protection Casing: IP 54
(EN 60529 / IEC 529) Sensor probe: IP 67
Temperature Range Casing: -25° to 55° C (-13° to 131° F)
Sensor probe: < 250° C (482° F)

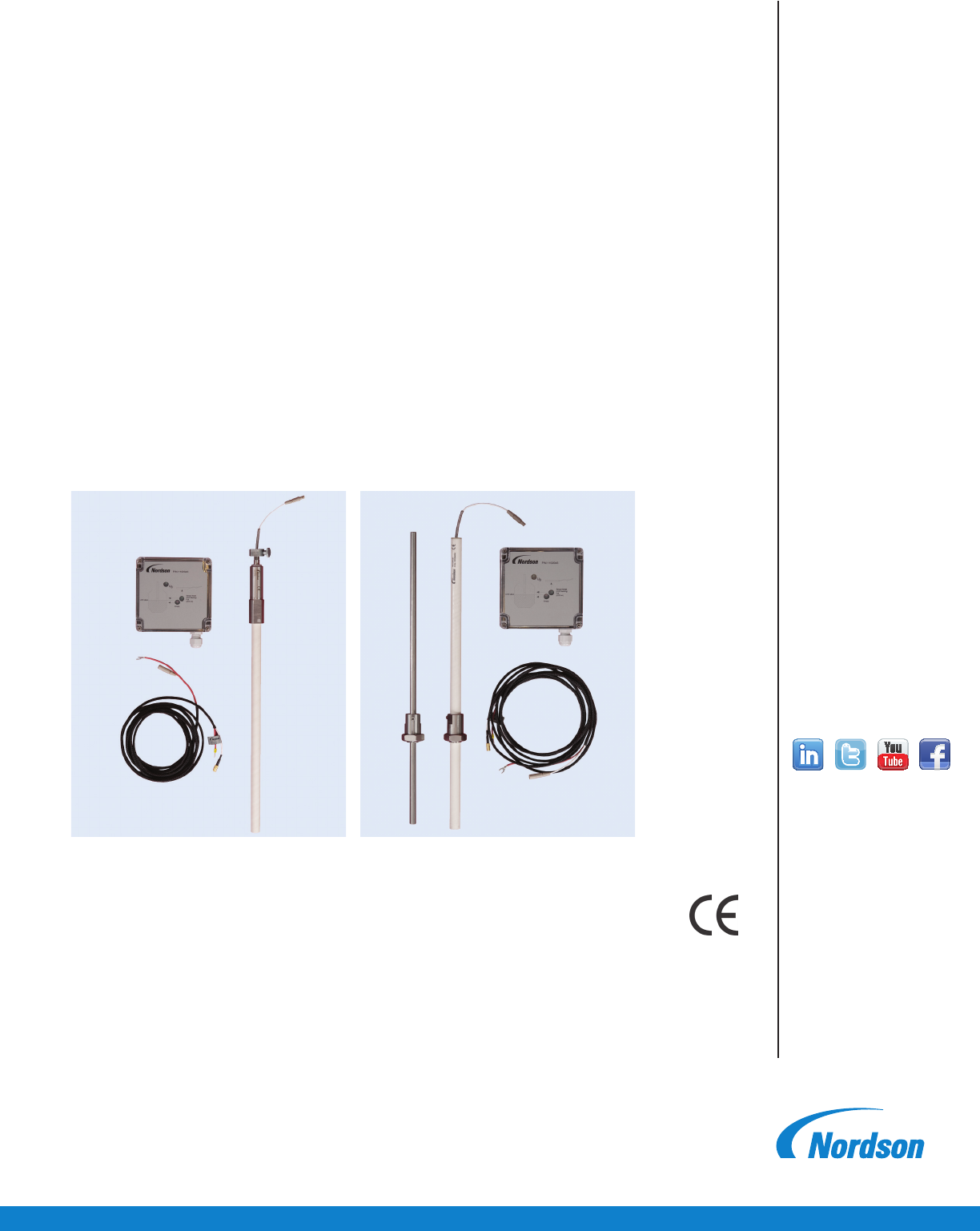

Level detection kit for conductive (pressure)
tanks; tank wall acts as counter electrode
Level detection kit for non-conductive
containers (e.g. plastic) contains additional
counter electrode
