Gener al Design Basic Cont act Pr obe Pitch [mm/mil] 4 .00 / 157 Electrical specific ations Swi…

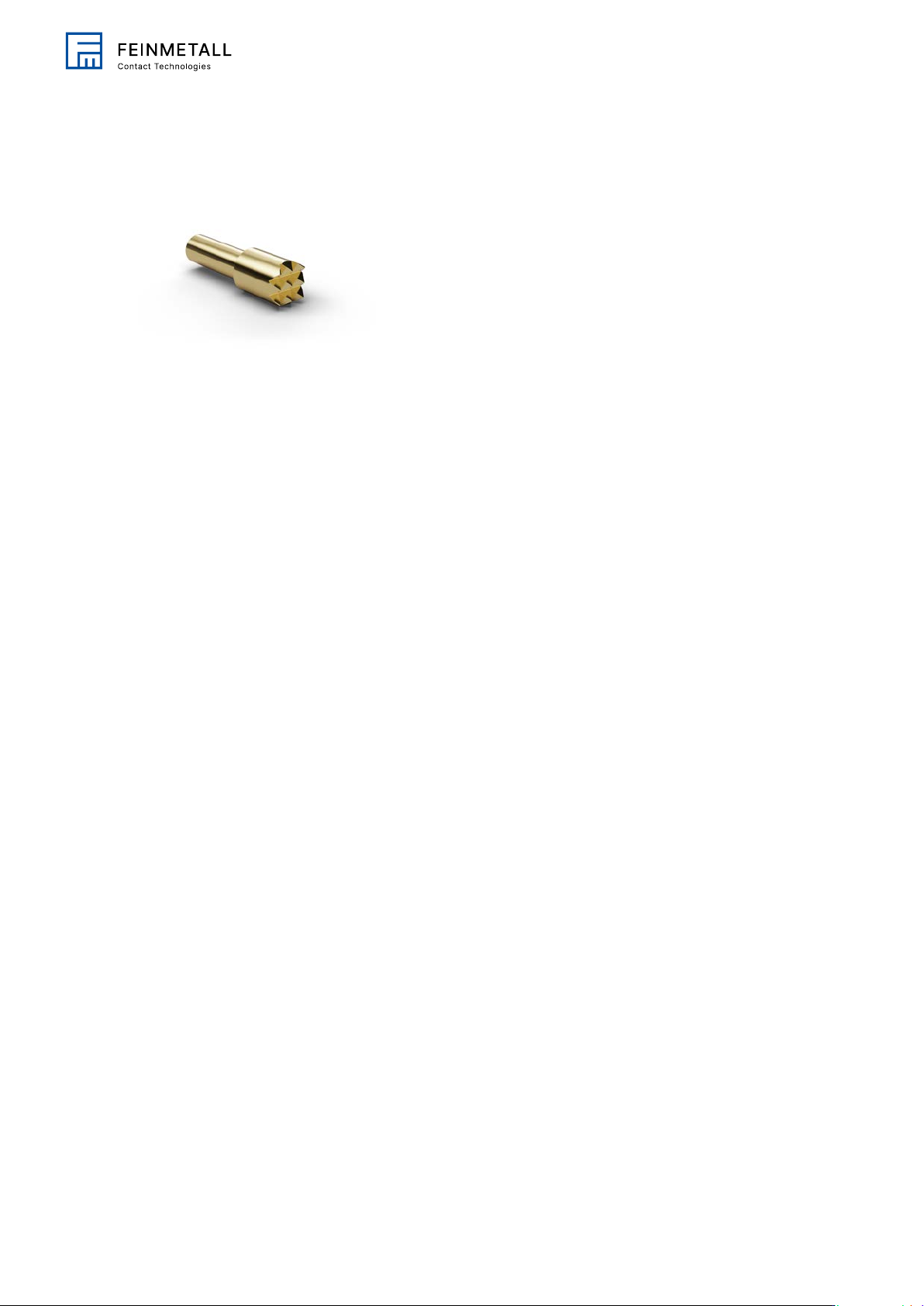

General
Design Basic Contact Probe
Pitch [mm/mil] 4.00 / 157
Electrical specifications
Switch travel [mm] 1.70
Mechanical specifications
Maximum travel [mm] 5.00
Pointing accuracy +/- [mm] 0.10
Thread M3X0.35
Tool size [mm] 2.5
Dimensions
Total length [mm] 24.50
Projection height [mm] 9.00
Tip style diameter [mm] 1.00
Collar diameter [mm] 3.50
Press ring diameter [mm] 3.50
Materials & surfaces
Plunger material Beryllium copper
Plunger plating Gold
Barrel material Brass
Barrel plating Gold
Spring material Spring steel
Spring plating Silver
Accessories
Switch Probes
Order code 1004908

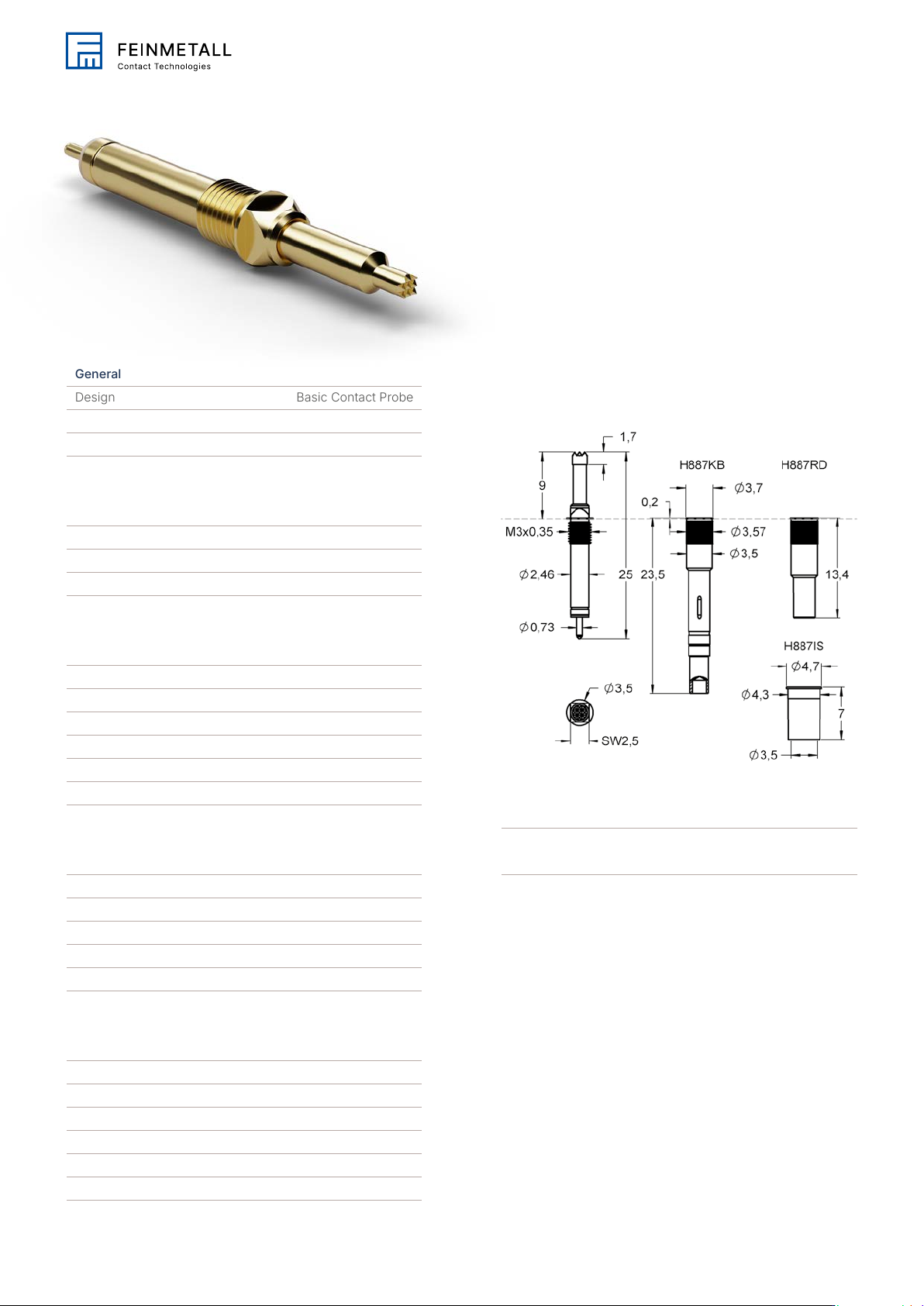

Family drawing
Tip style 1
