2. Designation of the Number of PCBs Buffered

When the automatic operation is performed with large PCBs, "PCB Mode"

appears in the status indication area (the upper area of the operation

window).

Parameters shall be changed.

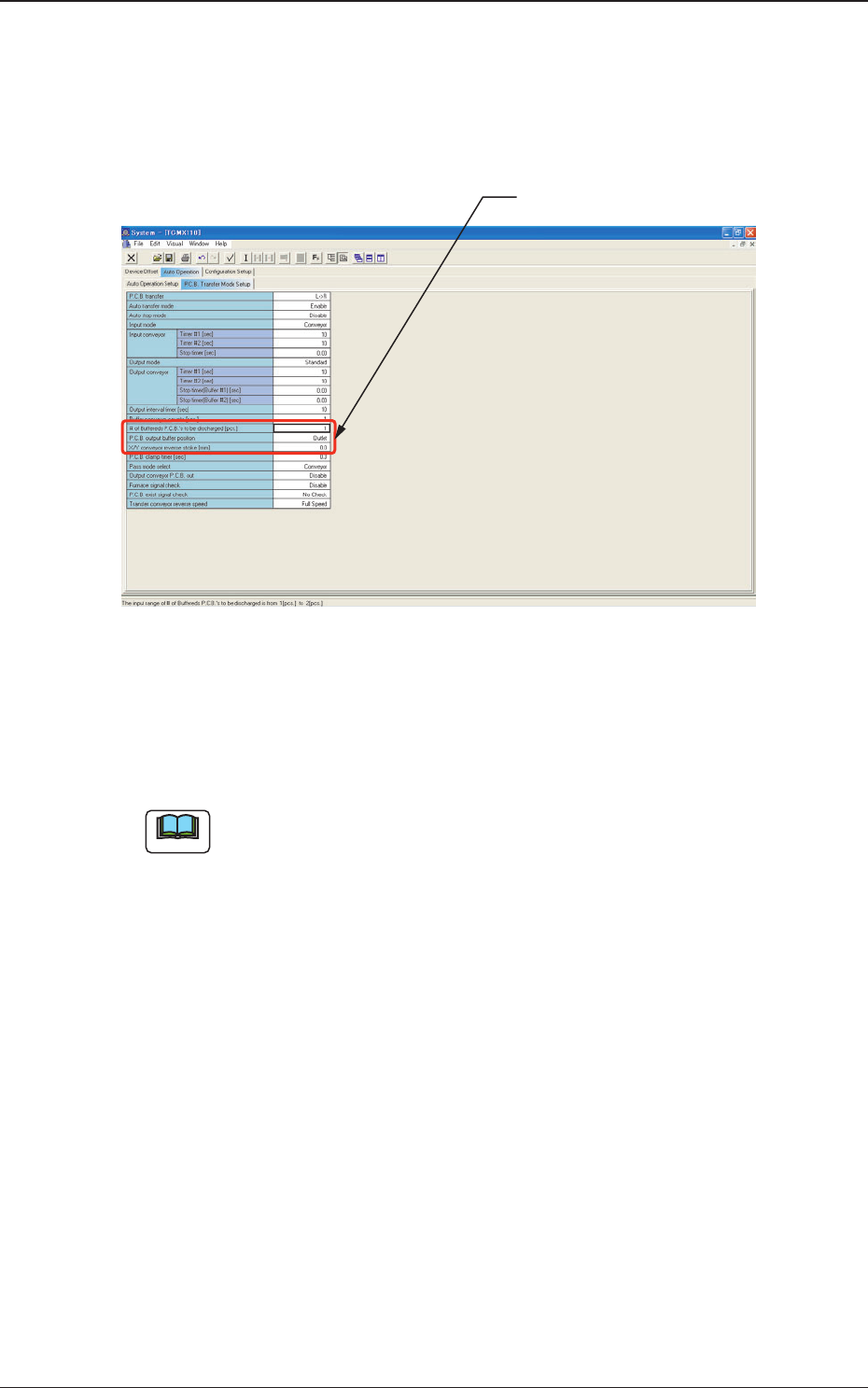

Fig. 1

At the production of PCBs (X: 430 mm), it is required to set "1" in the "# of

Buffereds P.C.B.'s to be discharged [pcs.]" text box.

Two PCBs cannot be buffered for the output conveyor.

Note:

When X exceeds 330 mm, set "1" in the text box.

Note

"P.C.B. output buffer position: Outlet" → (Setting Recommended)

2. Designation of the Number of PCBs Buffered
