Page - 3 - of 5
RSEN SERIES
SPECIFICATIONS
NOTE
*1 Value for Ta less than 55
°C (include 55 °C)
For Ta more than 55 °C (not include 55 °C)
According to the derating curve shown on the right.
CAUTION
·Specifications which provide more details for the proper and safe use of the described product are available
upon request.
·All specification are subject to change without notice.
A575NAA-RSEN-001 200801
Model
Items
RSEN-2030 RSEN-2040 RSEN-2050 RSEN-2060
1 Rated Voltage (AC, DC) V 250
2 Rated Current (AC, DC) *1 A 30 40 50 60
3
Test Voltage
(terminals to base plate, 1min AC)
V 2500 at 20±15°C, 65± 20 %
4
Isolation Resistance
(terminals to base plate, 500V DC)
M Ω
100 min. at 20±15°C, 65± 20 %
5 Leakage Current 250V, 60Hz mA 1 max.
6 DC Resistance (both lines)
m Ω
6 6 4 3
7 Temperature Rise
°C
30 max.
8 Operating Temperature
°C
-25 ~ +85
9 Operating Humidity - 15 ~ 85 % RH
10 Storage Temperature
°C
-25 ~ +85
11 Storage Humidity - 5 ~ 85 % RH
12 Vibration -
Frequency : 10~55Hz Amplitude : 1.5mm, Sweep for 1 min.
Dimension and times : X, Y and Z directions for 2 hours each.
13 Safety Standards - EN60939 (SEMKO), UL1283, CSA C22.2 No.8
14 Weight g 230 865 865 865
Temp erat ure (°C)
Current (%)

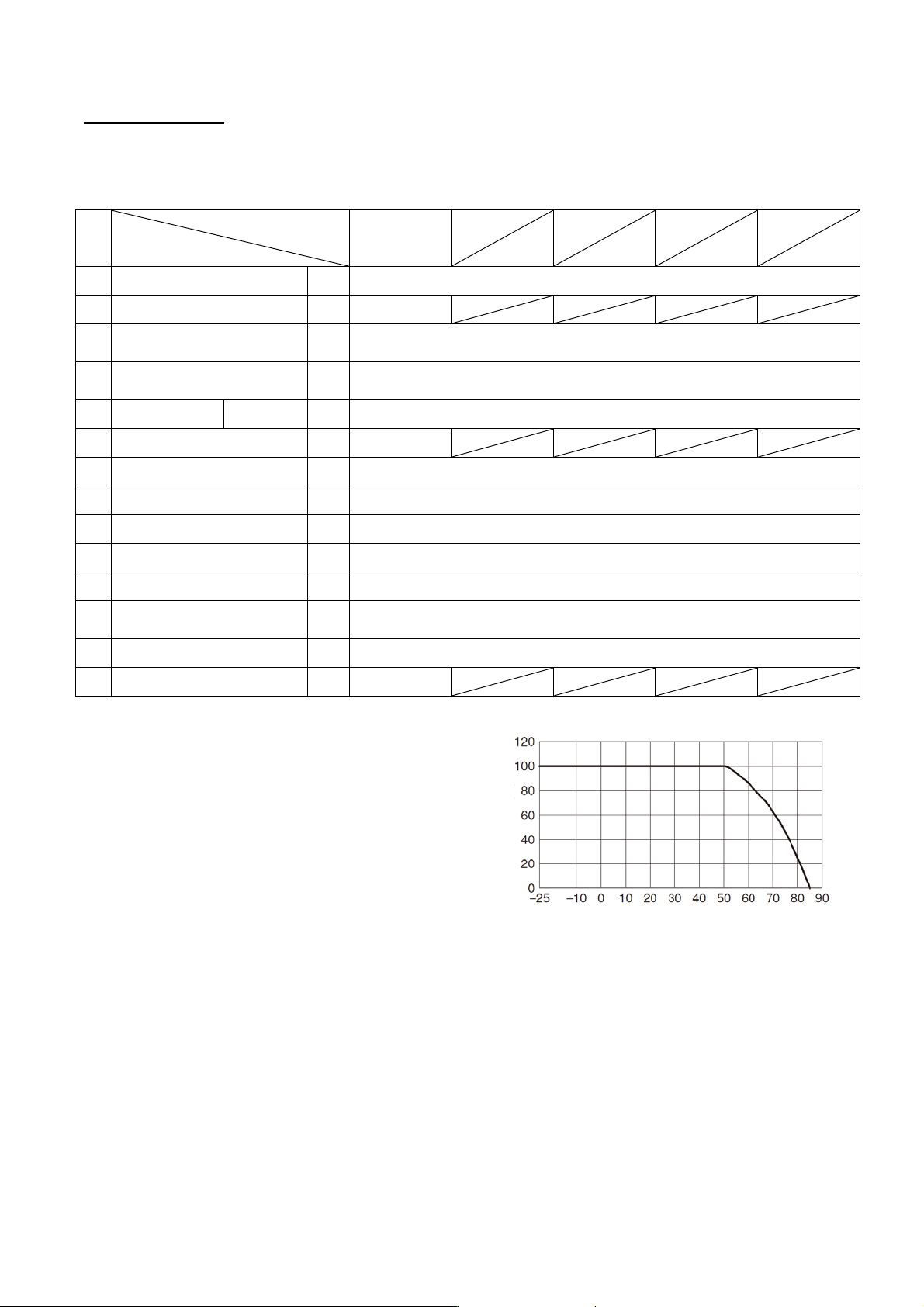

Page - 4 - of 5
RSEN SERIES
SPECIFICATIONS
NOTE
*1 Value for Ta less than 50
°C (include 50 °C)
For Ta more than 50 °C (not include 50 °C)
According to the derating curve shown on the right.
CAUTION
·Specifications which provide more details for the proper and safe use of the described product are available
upon request.
·All specification are subject to change without notice.
A575NAA-RSEN-001 200801
Model
Items
RSEN-2080 RSEN-2100 RSEN-2150 RSEN-2200 RSEN-2250
1 Rated Voltage (AC, DC) V 250
2 Rated Current (AC, DC) *1 A 80 100 150 200 250
3
Test Voltage
(terminals to base plate, 1min AC)
V 2500 at 20±15°C, 65± 20 %
4
Isolation Resistance
(terminals to base plate, 500V DC)
M Ω
100 min. at 20±15°C, 65± 20 %
5 Leakage Current 250V, 60Hz mA 1 max.
6 DC Resistance (both lines)
m Ω
3.4 2.7 2 1.4 1
7 Temperature Rise
°C
35 max.
8 Operating Temperature
°C
-25 ~ +85
9 Operating Humidity - 15 ~ 85 % RH
10 Storage Temperature
°C
-25 ~ +85
11 Storage Humidity - 5 ~ 85 % RH
12 Vibration -
Frequency : 10~55Hz Amplitude : 0.7mm, Sweep for 1 min.
Dimension and times : X, Y and Z directions for 0.5 hours each.
13 Safety Standards - -
14 Weight g 3600 3800 5800 8400 8100
Temper ature (° C)
Current ( %
)
Page - 5 - of 5
RSEN SERIES
SPECIFICATIONS
NOTE
*1 Value for Ta less than 50
°C (include 50 °C)
For Ta more than 50 °C (not include 50 °C)
According to the derating curve shown on the right.
CAUTION
·Specifications which provide more details for the proper and safe use of the described product are available
upon request.
·All specification are subject to change without notice.
A575NAA-RSEN-001 200801
Model
Items
RSEN-2300
1 Rated Voltage (AC, DC) V 250
2 Rated Current (AC, DC) *1 A 300
3
Test Voltage
(terminals to base plate, 1min AC)
V 2500 at 20±15°C, 65± 20 %
4
Isolation Resistance
(terminals to base plate, 500V DC)
M Ω
100 min. at 20±15°C, 65± 20 %
5 Leakage Current 250V, 60Hz mA 1 max.
6 DC Resistance (both lines)
m Ω
0.7
7 Temperature Rise
°C
35 max.
8 Operating Temperature
°C
-25 ~ +85
9 Operating Humidity - 15 ~ 85 % RH
10 Storage Temperature
°C
-25 ~ +85
11 Storage Humidity - 5 ~ 85 % RH
12 Vibration -
Frequency : 10~55Hz Amplitude : 0.7mm, Sweep for 1 min.
Dimension and times : X, Y and Z directions for 0.5 hours each.
13 Safety Standards - -
14 Weight g 7800
Temper ature (° C)
Current ( %
)
