Config machine cover_20211122_064906.pdf - 第19页
Config machine cover Page 19 / 22 22.11.2021

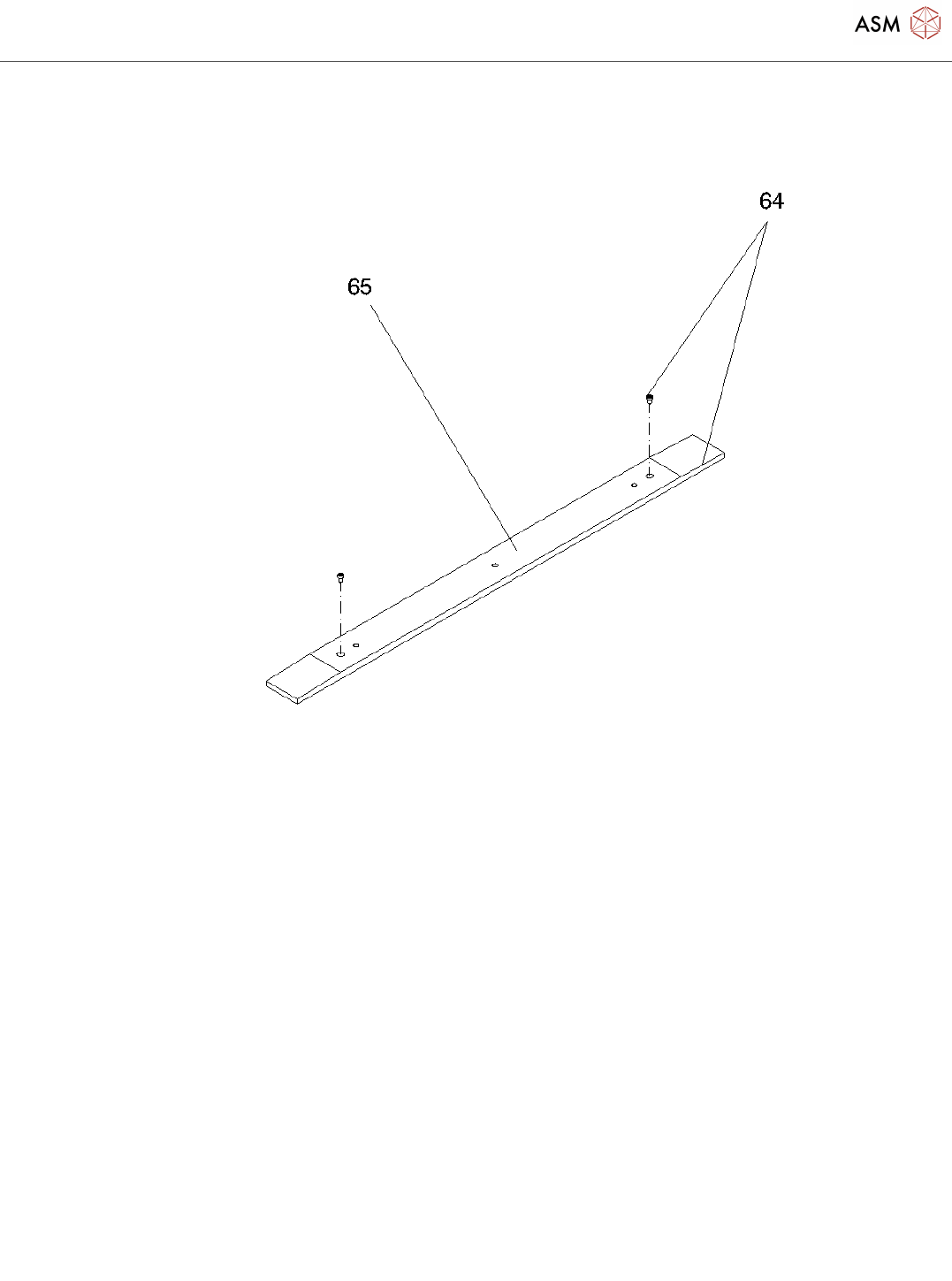

Config machine cover
Page 18 / 22 22.11.2021

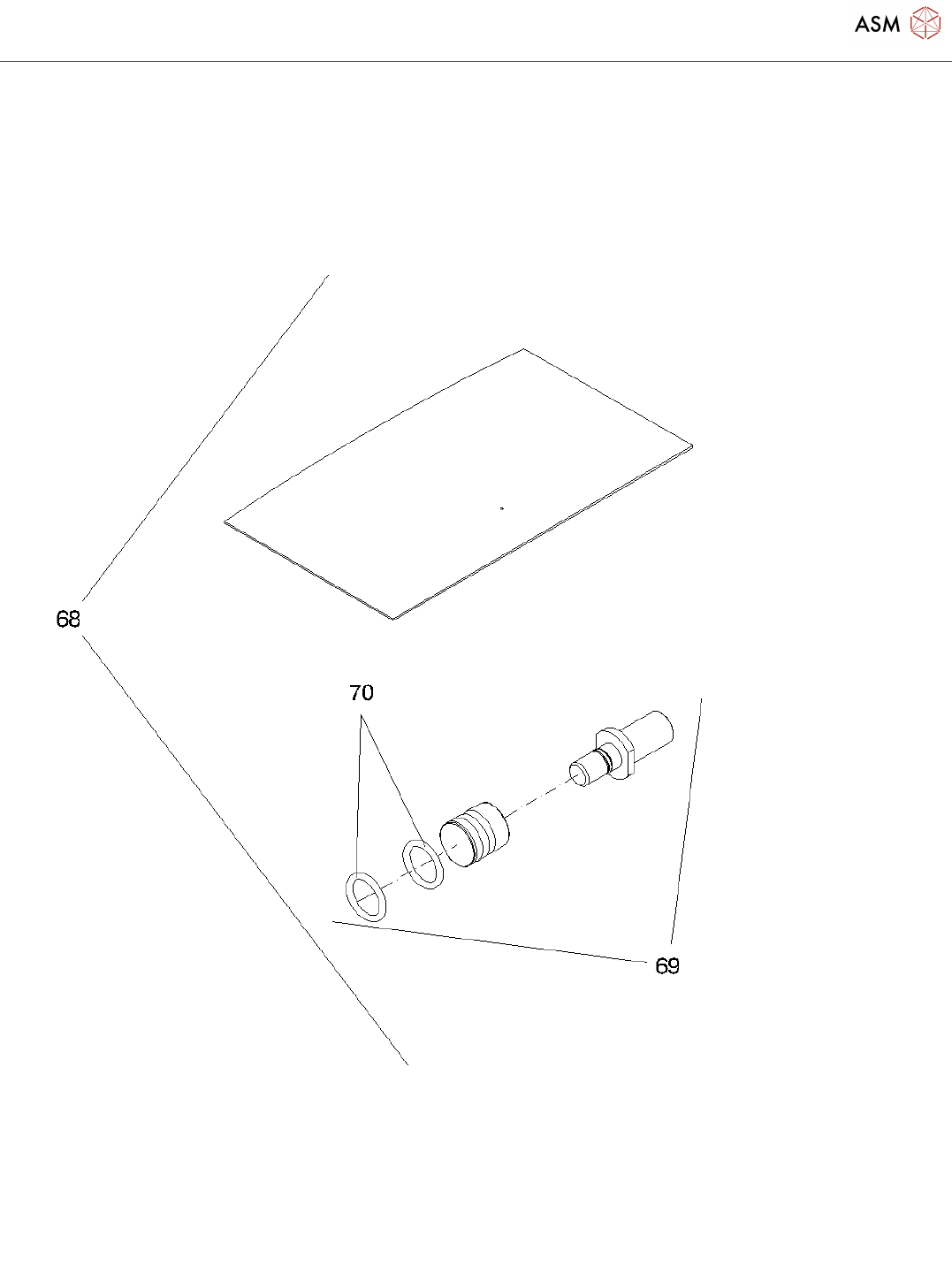

Config machine cover
Page 19 / 22 22.11.2021
Config machine cover
Page 20 / 22 22.11.2021
Pos. Item no. Description Part marking
03098995-01 CONFIG MACHINE COVER
X4S(I)(M),X3S 110
2 03096832-01 COVER, CONVEYOR CPL.
3 03096830-02 COVER, CONVEYOR
4 03099777S05 X-SERIES S MTC PARTS FOR
HOUSING CONFIG
RETROFIT KIT
5 03099148-02 GUIDE, CORNER LEFT X4 S MTC
6 03103337-02 GUIDE, CORNER RIGHT X-SERIES S
MTC
7 03099515-02 STIFFENER RAIL-BUMPER 2/4 SX4AV
MTC
8 03099559-01 HOLDER HOOD RAIL LOC 2/4 SX4AV
MTC
9 03098912-02 HINGE BOTTOM PART CPL.
10 03090520-01 BUSH BEARING GFM-0608-05
11 03093119-02 HOLDER HINGE SX4A
12 03103326-01 BUMPER WITH PIN, ELASTOMER
EPDM 62
13 03098934-01 SLIDER ASSY SX4A
14 03098942-01 HINGE TOP ASSY LOC 2/4
15 03090520-01 BUSH BEARING GFM-0608-05
16 03102849-01 BRACKET CPL.
17 03045194-01 DIN EN ISO 7380-M3 X 6-A2-70 STANDARD PARTS
18 03079867-02 BUFFER, COVER-GUIDE WEAR PART
19 03096674-01 SCREW SELF-LOCKING CPL.
20 03096670-01 SCREW NA
03040338-01 DIN EN ISO 7380-M3 X 8-A2-70 STANDARD PARTS
22 03072728-01 BUFFER WITH PIN, TYP-NR. 1284 STANDARD PARTS
23 03054128S01 DIN EN ISO 10511 - M3-A2-70 Spare Part
03097628-01 PARTS SET SECURITY SWITCH
SERVICE FLAP
03090999-02 SECURITY SWITCH SERVICE FLAP SPARE PART
03055263-01 SAFETY SWITCH AZ 16-03ZVRK-M16
3NC
SPARE PART
03009407-01 COUNTER-NUT SKINTOP / M16X1.5
00365923-01 CABLE GLAND M16X1.5 2-7MM PA
SILVER GREY
00805141-01 CABLE TIE W=3.6MM L=140MM TY STANDARD PARTS
