YCP2_KHU_100_e.pdf - 第13页

Wiring par ts list KKH ( 100 ) 1001 PA G E 11 Con fi dential & Proprietary No P ar t No. P ar t Name Q'ty Remarks No P ar t No. P ar t Name Q'ty Remarks 77 KHU-M66F4-000 HNS,CNF9 13-KM10 1 J0161 115 KHU-M66G…

100%1 / 13
PAG E
9
Confi dential & Proprietary
YCP2
YCP2

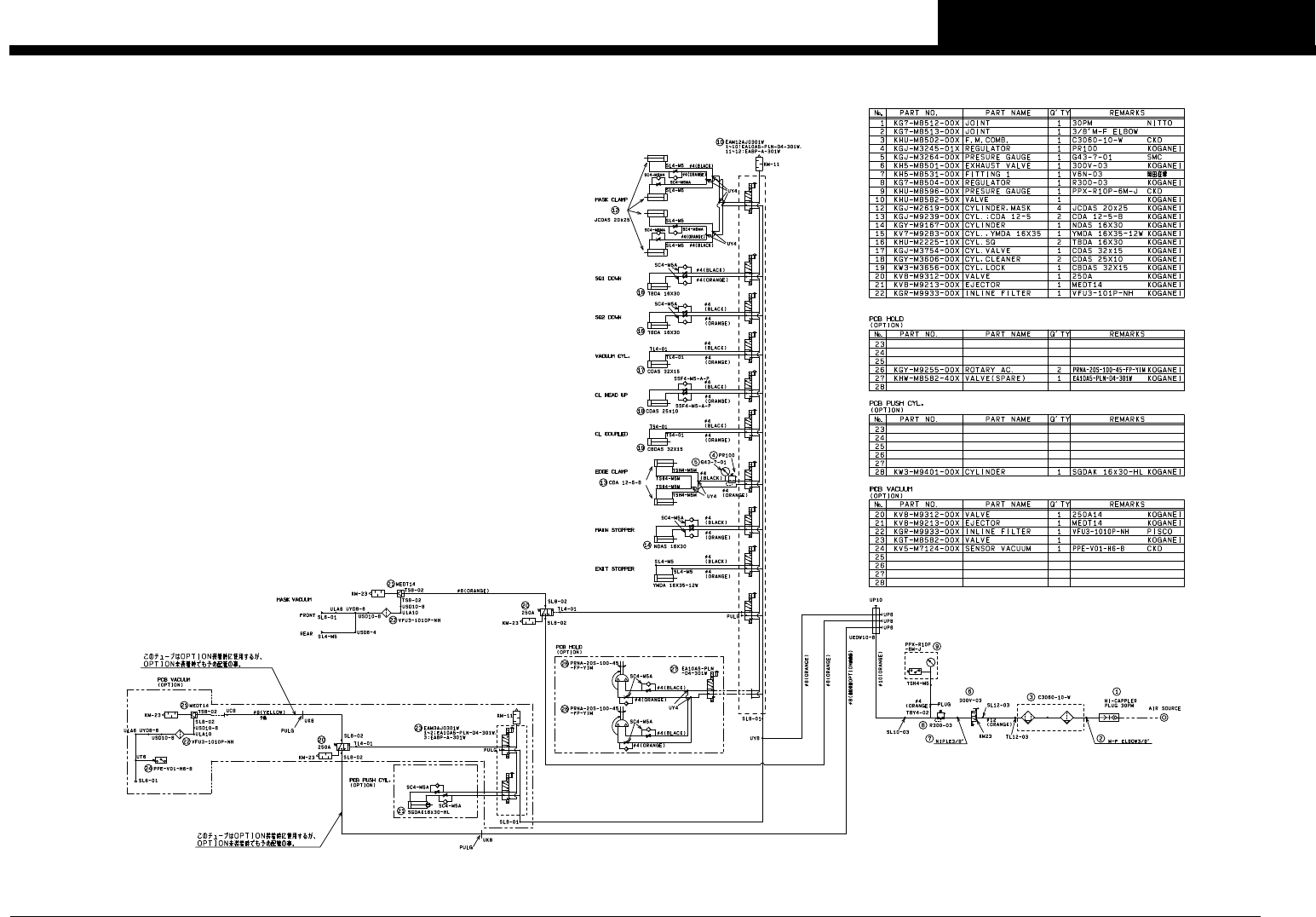

Air circuit
H013789
Wiring parts list
KKH
(
100
)
1001
PAG E
10
Confi dential & Proprietary
No Part No. Part Name Q'ty Remarks No Part No. Part Name Q'ty Remarks
1 KHU-M661A-000 HNS,SW MAIN POWER 1 J0003 39 KGA-M669V-421 HNS,SWITCH ERR.CLR. 1 J0109
2 KHU-M661C-000 HNS,NF11-PROTECTOR 1 J0005 40 KW3-M668H-001 HNS,FDD 1 J0110
3 KHU-M661D-000 HNS,QF JUMPER 1 J0006 41 KGA-M669V-540 HNS,SWITCH RESET 1 J0111
4 KHU-M661E-000 HNS,QF BLOWER PWR 1 J0007 42 KU8-M66F5-303 HNS,VGA 3M 1 J0113
5 KHU-M661W-000 HNS,QF BLOWER 1 J0013 43 KW3-M668X-000 HNS, KB EXTEND(2M) 1 J0117
6 KHU-M661G-000 HNS, BLOWER PWR 1 J0014 44 KGJ-M665A-001 HNS,PI1A 1 J0121
7 KHU-M661J-000 HNS,QF-KM 1 J0016 45 KHU-M665L-000 HNS,PI2A 1 J0122
8 KHU-M661M-000 HNS,C/R POWER 1 J0021 46 KHU-M665V-100 HNS,PI2B 1 J0123
9 KHU-M661N-000 HNS,FAN POWER 1 J0022 47 KHU-M66L2-100 HNS,PI1B SHORT 1 J0124
10 KHU-M66GM-000 HNS,FUEL PUMP 1 J0023 48 KHU-M665H-000 HNS,BASE PI X 1 J0125
11 KHU-M661H-000 HNS,PUMP PWR2 1 J0024 49 KHU-M665B-011 HNS,PI Z 1 J0126
12 KHU-M661K-000 HNS,PUMP PWR1 1 J0025 50 KW3-M665K-001 HNS,PI Y 1 J0127
13 KHU-M661X-000 HNS,CNF16 I/O POWER 1 J0041 51 KW3-M665J-002 HNS,Y.FLEX PI X 1 J0128
14 KHU-M662A-000 HNS,CNF19 POWER 1 J0042 52 KHU-M665M-000 HNS,Y-FLEX PI 1 J0129
15 KHU-M662B-000 HNS,GS21 DC24V 1 J0044 53 KHU-M665T-100 HNS,Y-FLEX WP 1 J0130
16 KHU-M661B-001 HNS,MTR POWER 1 J0045 54 KHU-M665W-000 HNS,Y-FLEX PI R 1 J0131
17 KHU-M662G-000 HNS,CONV.MTR PWR 1 J0046 55 KHU-M665N-000 HNS,X-FLEX PI 1 J0132
18 KHU-M662E-001 HNS,QS21 POWER 1 J0047 56 KHU-M665U-100 HNS,X-FLEX WP 1 J0133
19 KHU-M662F-000 HNS,CNF21 24V IN 1 J0048 57 KHU-M665G-001 HNS,X-FLEX PI 1 J0134
20 KHU-M662K-000 HNS,LCD POWER 1 J0049 58 KHU-M665C-000 HNS,PI SY 1 J0135
21 KHU-M664E-000 HNS,CONV.MOTOR 1 1 J0052 59 KHU-M665F-000 HNS,BASE PI SZ 1 J0136
22 KHU-M664F-001 HNS,CONV.DRIVER 1 J0053
60 KHU-M665K-000 HNS,SY-FLEX PI 1 J0137
23 KHU-M664G-000 HNS,C.MOTOR X-FLEX 1 J0054 61 KHU-M665Y-001 HNS,BASE PI 1 J0138
24 KHU-M663R-000 HNS,CONTROL,H/L 2 J0055,J0056 62 KHU-M665R-001 HNS,PI R 1 J0139
25 KHU-M664K-000 HNS,Y.FLEX C/MTR 1 J0057 63 KHU-M665E-000 HNS,BASE PI R 1 J0140
26 KHU-M664L-000 HNS,X.FLEX C/MTR 1 J0058 64 KHU-M666A-001 HNS,MO1A 1 J0141
27 90K30-255030 HNS,PE 300 1 J0075 65 KHU-M666E-000 HNS,MO2A 1 J0142
28 90K30-255030 HNS,PE 300 1 J0076 66 KHU-M666H-100 HNS,MO2B 1 J0143
29 90K30-544080 HNS,EARTH 2 J0077,J0079 67 KHU-M666G-000 HNS,Y.FLEX MO X 1 J0145
30 90K30-544100 HNS,EARTH 1 J0078 68 KHU-M666J-000 HNS,Y-FLEX MO 1 J0146
31 90K30-544070 HNS,PE 700 1 J0080 69 KHU-M666T-100 HNS,Y-FLEX MO W 1 J0147
32 90K30-244015 HNS,COVER FG 4 J0082-J0085,J0087 70 KHU-M666L-000 HNS,Y-FLEX MO R 1 J0148
33 90K30-244050 HNS,EARTH 500 2 J0086,J0088 71 KHU-M666M-000 HNS,X-FLEX MO 1 J0149
34 90K30-444140 HNS,EARTH 1 J0095 72 KHU-M666U-100 HNS,X-FLEX MO W 1 J0150
35 KHU-M668A-000 HNS,I/O1 CMN 1 J0101 73 KHU-M666R-000 HNS,X-FLEX MO R 1 J0151
36 KGA-M669V-140 HNS,SWITCH READY 1 J0106 74 KW3-M666E-000 HNS,SY-FLEX MO SZ 1 J0154
37 KGA-M669V-241 HNS,SWITCH START 1 J0107 75 KHU-M666B-001 HNS,MO R 1 J0155,J0156
38 KGA-M669V-321 HNS,SWITCH STOP 1 J0108 76 KHU-M666S-000 HNS,MO Z 1 J0156
Wiring parts list
KKH
(
100
)
1001
PAG E
11
Confi dential & Proprietary
No Part No. Part Name Q'ty Remarks No Part No. Part Name Q'ty Remarks
77 KHU-M66F4-000 HNS,CNF9 13-KM10 1 J0161 115 KHU-M66GG-000 HNS,CLNG.FLEX DIA 1 J0265
78 KHU-M66FM-000 HNS,CNF15 SHORT 1 J0162 116 KHU-M66GH-001 HNS,C-FLEX CLEAN UP 1 J0268
79 KHU-M667F-000 HNS,CNF48 EMG 1 J0165 117 KHU-M66GK-000 HNS,CN12 SQ DI 1 J0271
80 KHU-M66FF-000 HNS,CNF12 SHORT 1 J0166 118 KW3-M9505-010 HNS,TEMP EXTEND 1 J0278
81 KHY-M667A-000 HNS,COVER LIMIT 3 J0167,J0168,J0169 119 KHU-M66GU-010 HNS,SMEMA OUT 1 J0291
82 KGA-M667J-002 HNS,EMG SW 2 J0173,J0174 120 KHU-M66GV-000 HNS,CONV.CN8 GATE 1 J0292
83 KHU-M66F8-000 HNS,2ND LIMIT 1 J0180 121 KW3-M66GW-003 HNS,NEXT INTERFACE 1 J0293
84 KHU-M669B-001 HNS,Z BK 1 J0182 122 KW3-M66GX-004 HNS,PRE,INTERFACE 1 J0294
85 KHU-M669E-000 HNS,Y-FLEX BRAKE 1 J0185 123 KHU-M66G7-000 HNS,SMEMA SEL. 1 J0295
86 KHU-M669F-000 HNS,X-FLEX BRAKE 1 J0186 124 KHU-M66G7-100 HNS,SMEMA SEL. 1 J0296
87 KGJ-M669K-001 HNS,SY-FLEX BRAKE SZ 1 J0187 125 KHU-M66GN-000 HNS,SY-FLEX SENSOR 1 J0302
88 KHU-M669G-000 HNS,BRAKE 1 J0188 126 KHU-M66G8-001 HNS,X ORG/OT 1 J0303
89 KHU-M66FL-000 HNS,COVER SW EMG 1 J0198 127 KHU-M66GB-001 HNS,R ORG 1 J0304
90 KHU-M66H1-000 HNS,SIGNAL TOWER 1 J0201 128 KHU-M66GC-001 HNS,SQ UP/DOWN 1 J0305
91 KHU-M66H2-000 HNS,CONV.CN13-CNF8 1 J0202 129 KHU-M66GD-100 HNS,R FLAP 1 J0306
92 KHU-M66H3-000 HNS,CONV.MTR DO 1 J0203 130 KM7-M66F0-001 C.CABLE ASSY : L5M 1 J0502
93 KHU-M66H5-000 HNS,CONV.CN14 BLOWER 1 J0205 131 KV7-M66F4-000 C.CABLE ASSY :1.7M 1 J0503
94 KHU-M66H7-100 HNS,CN4 18 DO 1 J0209 132 KV7-M66F2-000 C.CABLE ASSY :6M 1 J0504
95 KW3-M66H8-000 HNS,MASK FID.LIGHT 1 J0212 133 KGA-M66F0-011 C.CABLE ASSY 1 J0551
96 KHU-M66H9-000 HNS,PCB FID.LIGHT 1 J0213 134 KGJ-M66N1-002 HNS,LIGHT1 1 J0552
97 KHU-M669N-000 HNS,DO BRAKE 1 J0214 135 KHU-M66K1-001 HNS,CNF41 POWER 1 J0553
98 KHU-M66HE-001 HNS,C-FLEX ROLL BK 1 J0215
136 KGJ-M66N8-000 HNS,LIGHT8 3 J0554,J0555,J0556
99 KHU-M66H4-000 HNS,Y-FLEX DO3 1 J0218 137 KV7-M66N5-000 HNS,LIGHT5 1 J0557
100 KHU-M66HH-000 HNS,X-FLEX DO3 1 J0219 138 KHU-M66HB-000 HNS,INVERTER SIG.1 1 J0701
101 KHU-M66HL-000 HNS,CONV.CN17 DO 1 J0221 139 KHU-M66HC-000 HNS,INVERTER SIG.2 1 J0702
102 KHU-M66HN-010 HNS,ROLL START 1 J0226 140 KHU-M662Y-000 HNS,INVERTER-MOTOR 1 J0703
103 KHU-M66HP-000 HNS,ROLL MOTOR 1 1 J0227 141 KGY-M66L3-000 HNS,QF41-TM41 1 J0800
104 KHU-M66HR-000 HNS,ROLL MTR C-FLEX 1 J0228 142 KGY-M66L4-001 HNS,TM41-AIR C. 1 J0801
105 KHU-M66G0-021 HNS,CONV.CN5 16 I/O 1 J0251 143 KM6-M66M1-102 HNS,TAP CHANGE 8 J0802-J0809
106 KHU-M66G1-000 HNS,CONV.CN7 DI 1 J0252 144 KM6-M66M1-202 HNS,TAP CHANGE 1 J0810
107 KHU-M66L1-000 HNS,CONV.CN10 1 J0253 145 90K30-244050 HNS,EARTH 500 3 J0811-J0813
108 KHU-M66G3-100 HNS,CONV.CN6 DI 1 J0254 146
109 KHU-M66G4-100 HNS,Y-FLEX DI4,5 1 J0255 147
110 KHU-M66G5-100 HNS,X-FLEX DI4,5 1 J0256 148
111 KHU-M66G9-100 HNS,CONV.CN9 DI 1 J0260 149
112 KHU-M66GA-100 HNS,Y-FLEX DI6 1 J0261 150
113 KHU-M66GE-100 HNS,X-FLEX DI6 1 J0262 151
114 KHU-M66GF-000 HNS,CONV.CN11 DIA 1 J0264 152
