Portal with CPP Kopf, SX1/2 Page 10 / 11 23.11.2021 Pos. Item no. Description Part marking 1 00519815-01 GANTRY WITH CPP HEAD, SX1/2 2 03062383S06 GR GANTRY /P001 SPARE PART 3 03053528S06 PLACEMENT HEAD CPP / WITHOUT CAM…

100%1 / 11
Portal with CPP Kopf, SX1/2
Page 9 / 11 23.11.2021
Portal with CPP Kopf, SX1/2
Page 10 / 11 23.11.2021
Pos. Item no. Description Part marking
1 00519815-01 GANTRY WITH CPP HEAD, SX1/2
2 03062383S06 GR GANTRY /P001 SPARE PART
3 03053528S06 PLACEMENT HEAD CPP / WITHOUT
CAMERA
Spare Part
03065864-01 ASSEMBLY KIT CPP - SX1/2
03065971-01 CABLE SET CPP / B-SERIE SPARE PART
6 03065868-01 HEAD ADAPTER HCU FOR C+P20 /
CPP
7 03055516S07 PCB / B-BASISADAPTER C+P SPARE PART
8 03090990-04 MHCU COMPLETE COMPATIBLE
9 03090998-02 MHCU-BA CONNECTION PCB SPARE PART
10 03109668S02 MHCU CPL. SPARE PART
11 03066808-01 ISO 7092 - 3 - 200 HV - A2 STANDARD PARTS
12 03042544-01 ISO 4762 - M 3 X 12-A2-70 STANDARD PARTS
03042542-01 ISO 4762 - M 3 X 8-A2-70 STANDARD PARTS
03008162-01 ISO 4032 - M3-A2-70 STANDARD PARTS
15 03022705-01 ISO 7093-1 - 3 - 200 HV - A2 STANDARD PARTS
03077179-01 HOSE SYSTEM FHE / CPP SX1/2 SPARE PART
03077181-01 AIR HOSE FHE / CPP SX1/2
03055411S01 PLASTIC TUBE PUN-CM-6-SW
ANTISTAT. (1M)
SPARE PART
00330249-01 BLANKING PLUG QSC-4H STANDARD PARTS
03006728S01 PVC CAP TYP D DI8,0 H 15 10X SPARE PART
21 03073328-02 NOZZLE STATION CPX CPL. X-
SERIES, SX1/2
SPARE PART
22 03103663-01 BLECH SPARE PART
00305383S01 PLUG-IN-SCREW-FITTING LCN-
M3-PK3
SPARE PART
24 00333782-01 DIN 7991-M4 X 20-8.8
25 03100633-01 ISO 7089 - 3 - 200 HV - A2 STANDARD PARTS
26 00343075-01 DIN 9021 - 3,2 - 140 HV - A2
03051467-01 PIPING OF NOZZLE STATION / WITH
VALVE
SPARE PART
03055785-01 VALVE FOR NOZZLE STATION CPLT.
03056098-01 PUSH-IN THREADED L FITTING
QSML-M5-4
00047104-01 BLANKING PLUG B-M5 AL Spare Part
Portal with CPP Kopf, SX1/2
Page 11 / 11 23.11.2021
Pos. Item no. Description Part marking
03055792-01 QSY-6H-4 Y-STECKVERB. MIT
STECKHUELSE
STANDARD PARTS
00330249-01 BLANKING PLUG QSC-4H STANDARD PARTS
03056097-01 PUN-CM 4X0.75 / 135MM
00359177S01 HOSE 4*2,5 PUN-CM-4 (PLACEMENT
HEAD)
SPARE PART
03056096-01 PUN-CM 4X0.75 / 200MM
00359177S01 HOSE 4*2,5 PUN-CM-4 (PLACEMENT
HEAD)
SPARE PART
37 03048638-02 BOX SPARE PART
03082143-01 SCREW SET CAMERA / HOLDING
SHEET
Spare Part

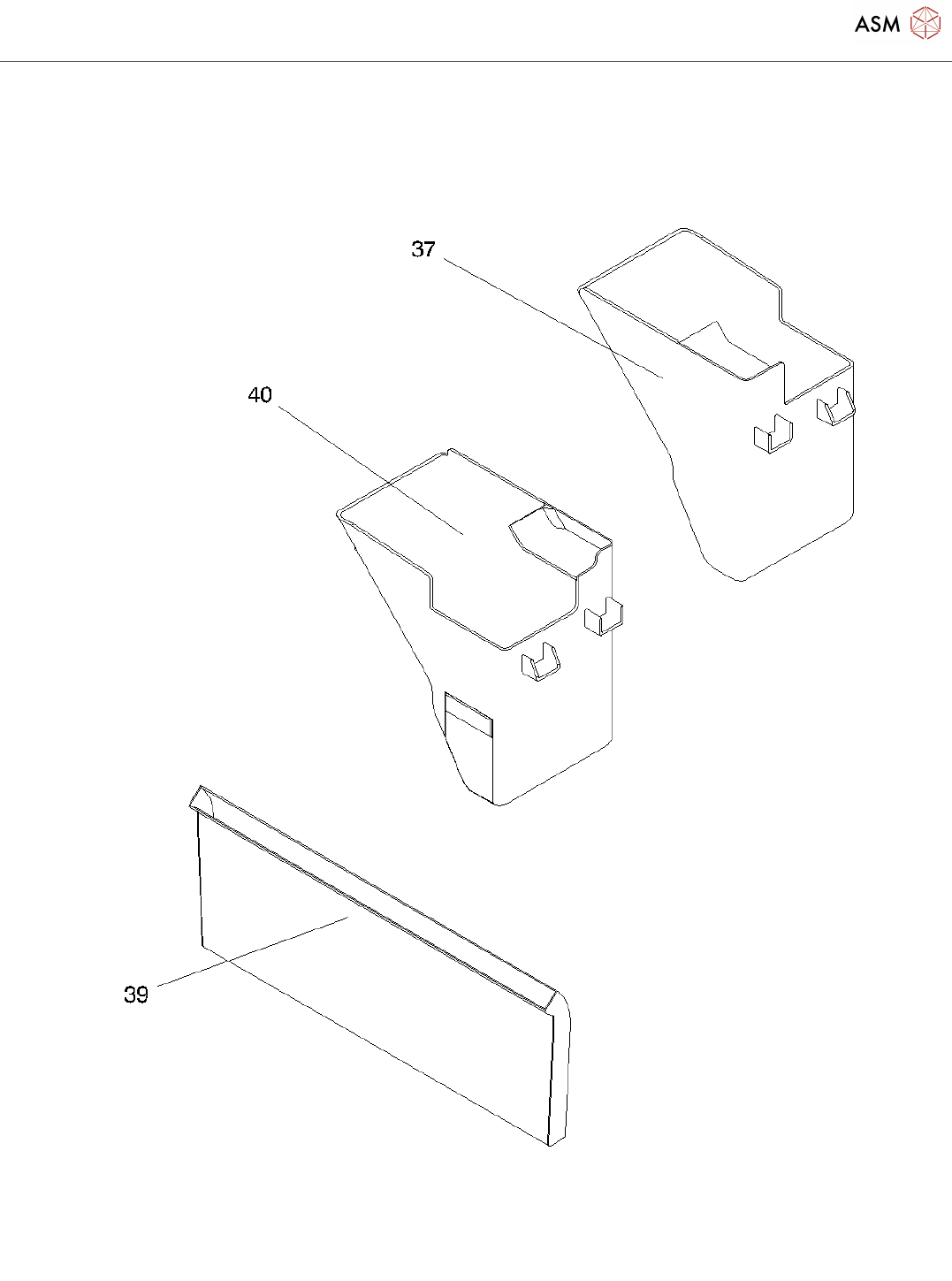

39 03062378-01 COMPONENT REJECT BOX UP TO
6X6 F. P001
SPARE PART
40 03063238-01 BOX LEFT SPARE PART
03079586-01 CARRIERS BOX FOR GANTRY
SYSTEM SX
