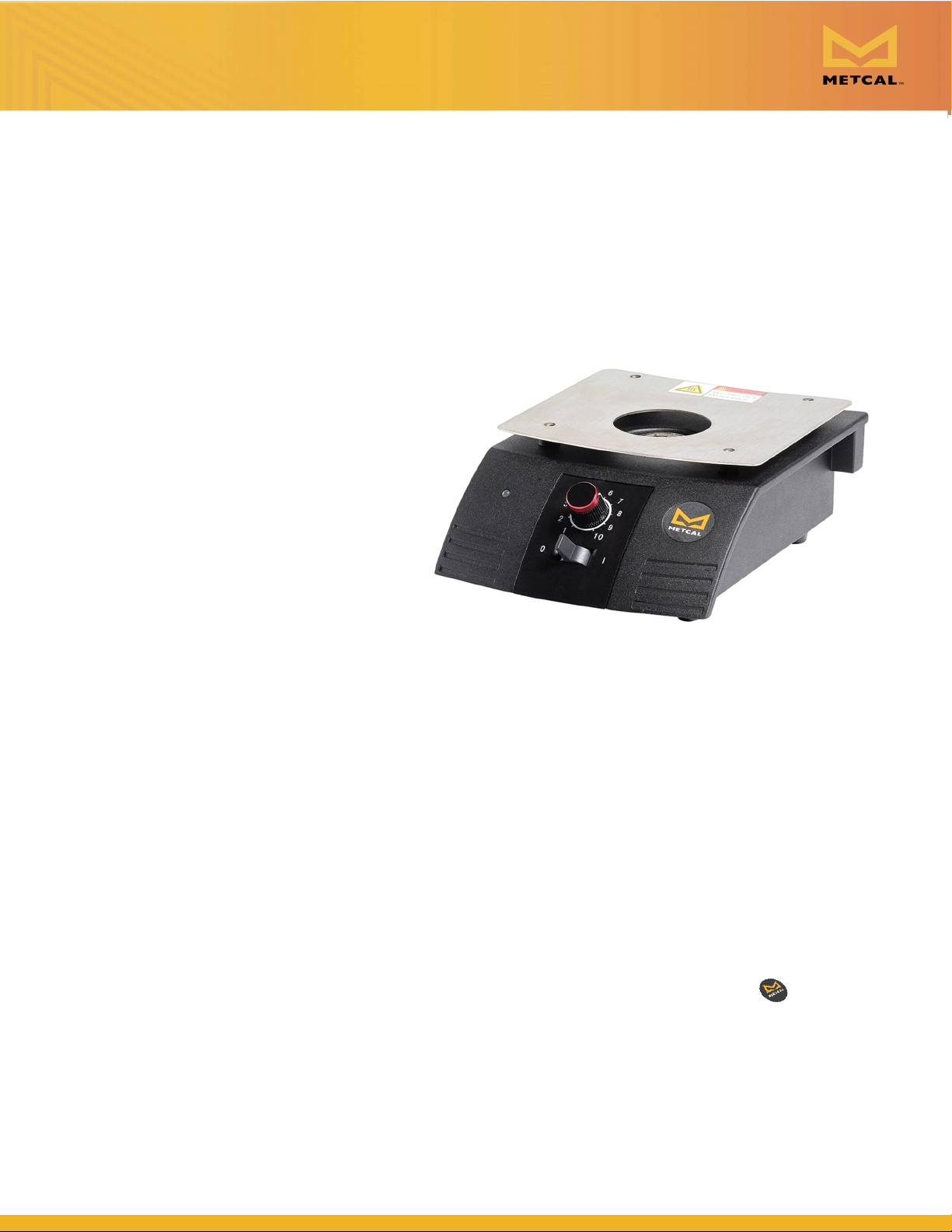

Rework small boards directly on the PCT-100
This pre-heater targets heat for improved
speed and efficiency for high thermal
demand applications, including lead-free.
Used for SMT and through-hole hand
processes, the PCT-100
uses convection air heating to heat a
PCB rst, for better soldering, improved
process control and increased produc-
tivity.
The PCT-100 Pre-heater Convection
Tool adds heat volume, without turning
up the temperature, to perform assem-
bly tasks at the appropriate peak tem-
perature without distorting the board.
Ideal for thick boards and smaller
boards, such as cell phone and PDAs,
the pre-heater focuses and delivers hot
air where you need it. When nished,
the fan continues without heat to cool down
the board.
The system is easy-to-use. Simply plug
it in, turn it on, adjust the heat and it’s
ready for work.
Accessories add to ease-of-use
The PCT-100 can be used with or with-
out a board holder. An Arm Rest is also
available to steady your hand and keep
your arm from being fatigued. The board
holder and arm rest are available as a
complete kit, with the PCT-100, or they
can be purchased separately.
Focused heat for high thermal demand applications
PCT-100 Pre-heater
Convection Tool
www.metcal.com
Pre-heater and Accessories
PCT-100-11 Pre-heater Convection Tool 110 VAC
PCT-100-21 Pre-heater Convection Tool 220 VAC
PCT-AR Arm Rest
BH-100 Board Holder
System Packages
PCT-101-11 Pre-heater Convection Tool (110 VAC) with Arm Rest
PCT-101-21 Pre-heater Convection Tool (220 VAC) with Arm Rest
PCT-102-11 Pre-heater Convection Tool (110 VAC) with Arm Rest and Board Holder
PCT-102-21 Pre-heater Convection Tool (220 VAC) with Arm Rest and Board Holder
Spare Parts
PCT-1HE-11 Heater Assembly 110 VAC
PCT-1HE-21 Heater Assembly 220 VAC
PCT-ARPAD Arm Rest Pad

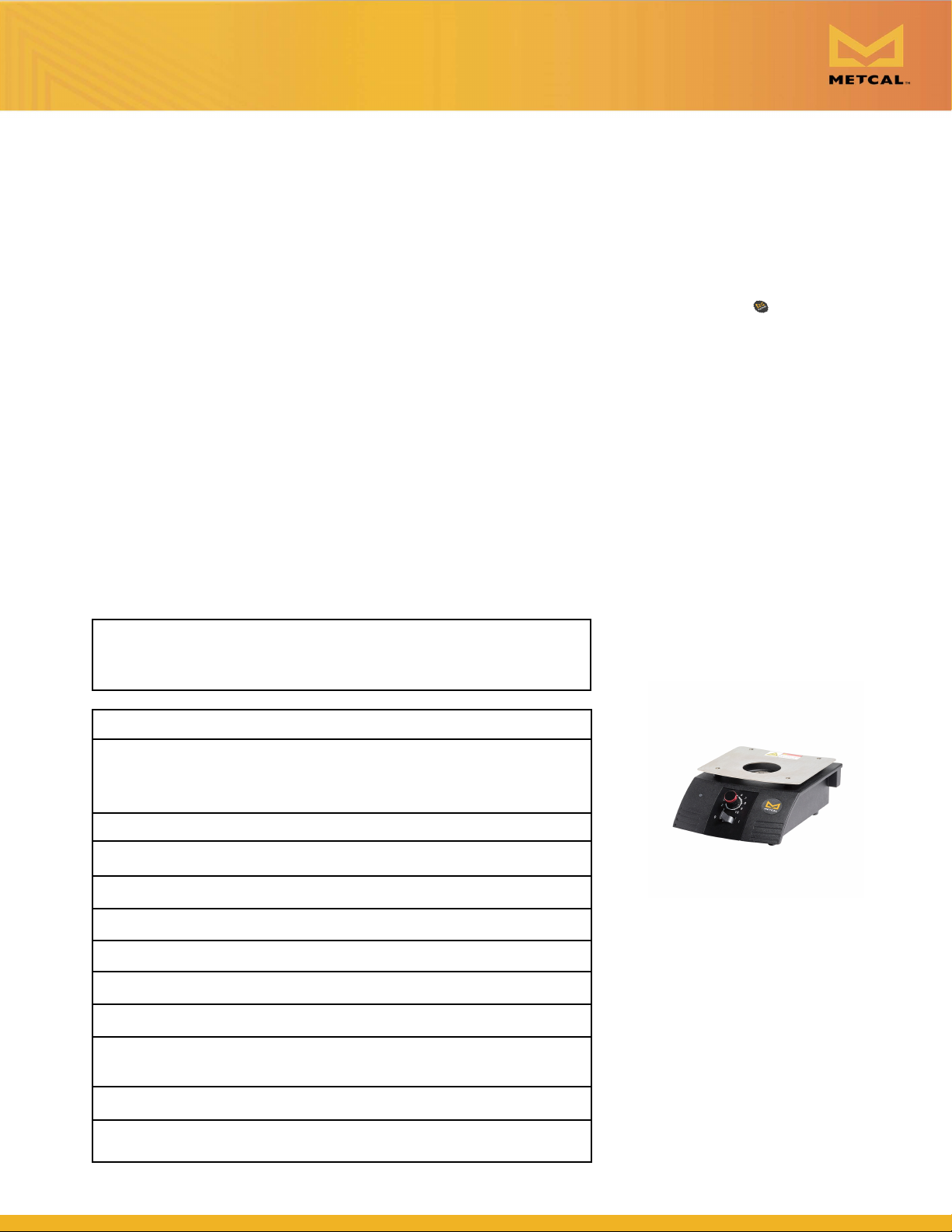

PCT-100 Pre-heater Specications
Input Voltage
PCT-100-11 115 VAC
PCT-100-21 230 VAC
Power 150 W
Pollution Degree Category II
Storage Temperature -10°C—60°C (14°F—140°F)
Environmental Temperature 0°C—40°C (32°F—104°F)
Air Flow 10.2 cfm
Control Temperature (only shown) <300°C (572°F)
Surface Resistivity ESD 106Ω - 1011Ω
Dimensions 205mm (L) x 155mm (W) x 65mm (H)
8.07" (L) x 6.10" (W) x 2.56" (H)
Weight 1.6 kg
Certicate/Approvals cTUVus, CE
Key Features & Benets
• Accelerates and enhances the lead-free SMT & through-hole rework process
• Temperature ramps up quickly, maximizing productivity
• Adjustable knob controls the required temperature to below 300°C
• Controlled cool-down eliminates thermal shock to PCB And components
• Thermocouple feedback temperature control regulates output temperature
• System safety feature automatically shuts off heating when fan is stopped
• ESD safe
BH-100 Board Holder Specications
Maximum PCB size: 12.0" (304.8mm) wide
Minimum PCB size: 2.5" (63.5mm) wide
BH-100 Board Holder
Use Metcal soldering tools with the
PCT-100. The Metcal HCT-900 Hand
Held Convection Tool is also ideal for
use with the pre-heater.
PCT-AR Arm Rest
PCT-100 Pre-heater Convection
Tool
PCT-100 Pre-heater Convection Tool
