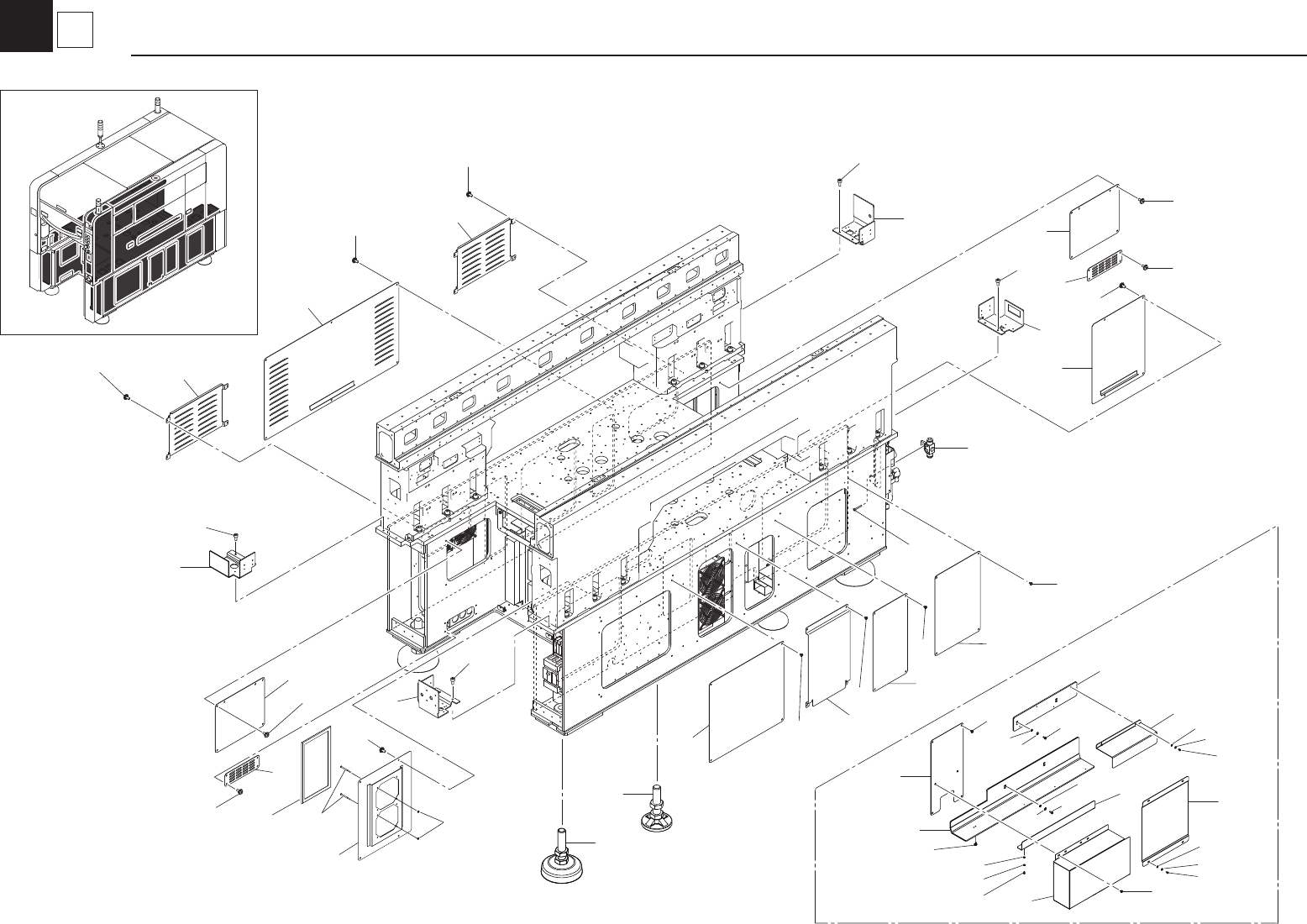

KMB-100-1607 Rev . :It had a change without the compatibility . Please be careful at the time of the parts ordering. Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。 No. Part No. Part Name Q’ty Remarks Rev. Rank Level 1 KLF-M8501…
KMB-100-1607
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 KLF-M8501-00 PUMP,VACUUM 2 /
Í
2 KLF-M8536-01 MUFFLER 4 /
Í
3 KLF-M8537-00 JOINT 4 /
Í
4 KLF-M11K3-00 ANTIVIB.RUBBER 8 /
Í
5 KLF-M11N1-00 BRKT.,PUMP 1 2 /
Í
6 KLF-M11N2-00 PLATE,PUMP 1 /
Í
7 KLF-M11N3-01 PLATE,PUMP 1 /
Í
8 KLF-M11N4-00 SLIDE RAIL 2 /
Í
9 KLF-M11N7-01 PLATE,CONNECTOR 1 /
Í
10 KJX-M1105-00 PLATE,HOLD R 1 /
Í
11 KLF-M1111-02 PLATE 11 1 /
Í
12 KLF-M1125-01 PLATE 25 1 /
Í
13 KLW-M8502-01 FILTER SET 1 /
Í
14 KLF-M8511-00 EXT.VALVE 1 /
Í
15 KLF-M8512-00 REGULATOR 1 /
Í
16 KLF-M8513-01 PRECISION REGULATOR 1 /
Í
17 KLF-M8582-00 VALVE 1 /
Í
18 91312-03030 BOLT,HEX.SOCKET HEAD 2 M3X30
19 91312-04005 BOLT HEX.SOCKET HEAD 4 M4X5
20 91312-04006 BOLT HEX.SOCKET HEAD 8 M4X6
21 91312-05006 BOLT HEX.SOCKET HEAD 6 M5X6
22 91312-05010 BOLT HEX.SOCKET HEAD 12 M5X10
23 91312-06010 BOLT HEX.SOCKET HEAD 6 M6X10
24 92012-04006 BOLT, BUTTON HEAD 16
25 90990-12J004 SCREW BIN.HEAD W/W 4
26 97602-04308 SCREW,PAN HEAD W/W 2
27 92902-04200 WASHER PLAIN 2
28 92902-05200 WASHER PLAIN 14
29 92902-06200 WASHER PLAIN 2
30 95302-06600 NUT HEXAGON 8
31 $UP10 JOINT 4
32 $UYD10-8 JOINT 2
33 $SL8-01 JOINT 1
34 $KM-10 MUFFLER 1
35 KLF-M11M7-03 COVER,PUMP 3 1 /
Í
36 90990-11J003 SCREW,PAN HEAD W/W 6 /
Í
37 KLF-M11P4-00 BRKT.,COVER 12 1 /
Í
38 90990-12J004 SCREW BIN.HEAD W/W 3 /
Í
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
39 KHW-M8582-40 VALVE 1 Spare /
Í
40 KLF-M8513-00 PRECISION REGULATOR 1 /
Í
41 KLF-M1113-00 PLATE 13 1 /
Í
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
