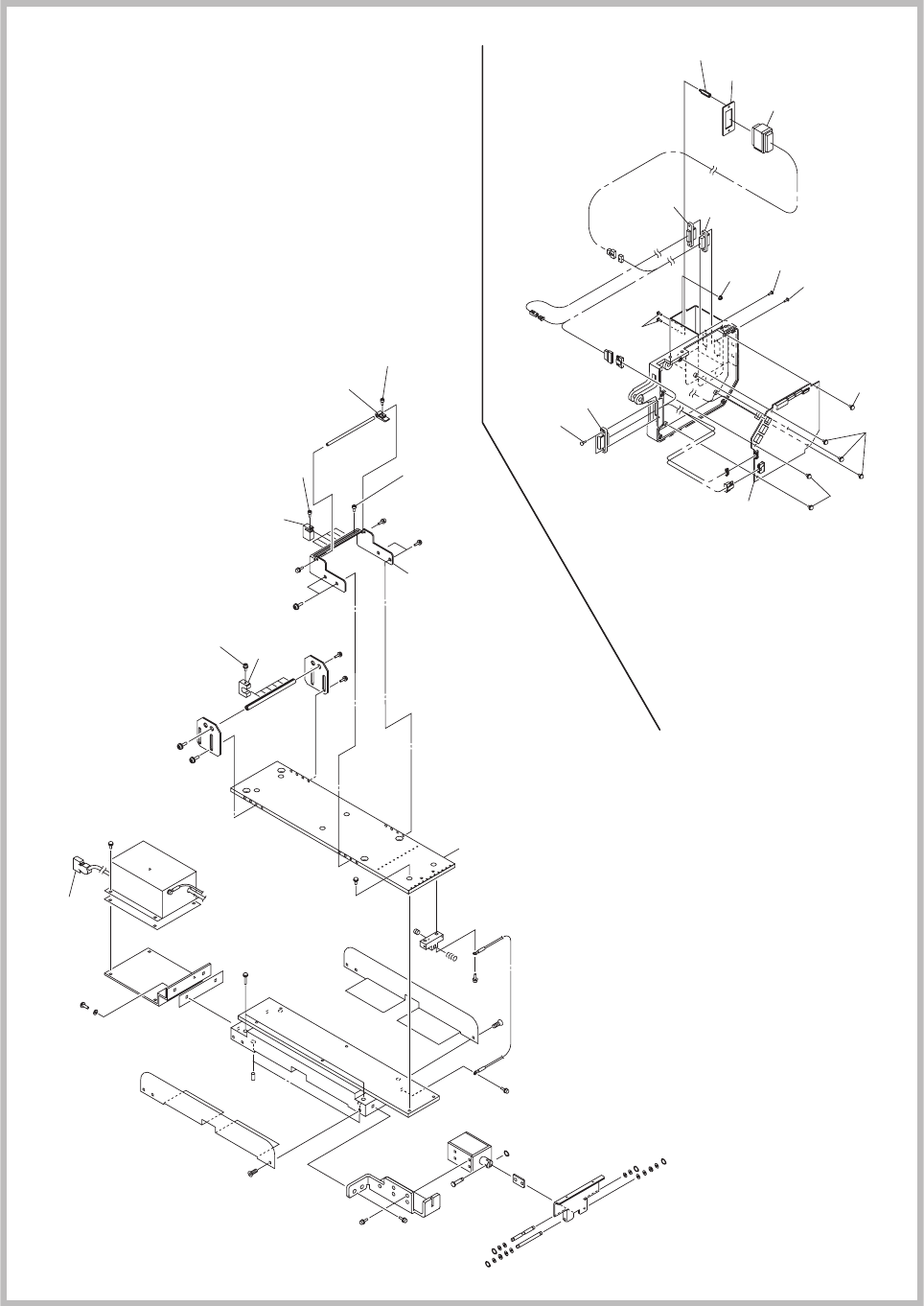

Fig. A 1007-001 Fig. A-1 2-24 2-1 12 2-1 12 2-12 2-14 2-08 2-1 13 VIEW "A" DET AIL "Key No.2" 35 13 61 61 61 63 12 1 1 1 1 14 63 60 59 15 16 58 2-1 12 2-16 2-13
Fig. A-1
振動スティックフィーダ
Vibratory Stick Feeder
1007-001
2-24
2-303
2-202
2-106
2-303
2-202
2-106
2-112
2-112
2-12
2-14
2-10
2-08
2-13
2-113
VIEW "A"
DETAIL "Key No.2"
35
13
61
61
61
63
12
11
11
14
63
60
59
15
16
58
52
57
55
64
65
66
53
54
50
55
23
24
10
20
21
17
19
28
27
26
38
36
29
39
51
51
51
18
18
56
62
61
22
45
47
46
41
41
41
41
2
9
A
43
30
57
67
34
42
44
37
37
40
Fig. A
振動スティックフィーダ
VIBRATORY STICK FEE
Fig. A
1007-001
Fig. A-1
2-24
2-112
2-112
2-12
2-14
2-08
2-113
VIEW "A"
DETAIL "Key No.2"
35
13
61
61
61
63
12
11
11
14
63
60
59
15
16
58
2-112
2-16
2-13
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
Fig. A
1007-001
Fig. A-1
2 0926C61D UNIT(V_STICK_FEEDER) 1 1092600C00-002
2 -08 0926C614 COVER 1
2 -12 0926C616 BLOCK 6
2 -13 0926C61A BLOCK 6
2 -14 0926C615 BLOCK 6
2 -16 211AA112 COVER 1
2 -24 0926C611 CORD(CABLE ASSY) 1
2 -
112
0926C60Z SBOLT,HEX-SCT 0305 12
2 -
113
0926C610 SBOLT,HEX-SCT 0310 6
9 211G5105 BLOCK(KIBAN) 1 1092600C00-009
10 0926C61C COVER(KIBAN) 1 1092600C00-010
11 4W203310 CORD 1 1092600C00-011
12 4W203220 CORD 1 1092600C00-012
13 4W203219 CORD 1 1092600C00-013
14 0W201029 ASSY_CORD 1 1092600C00-014
15 0926C60Y PLATE 1 1092600C00-015
16 23L10081 ACCESSORY_PCB 2 1092600C00-016
17 216F0879 PIN_GUIDE(ROLLE 1 1092600C00-017
18 221KB001 E_RING4 2 1092600C00-018
19 213C0206 ROLLER 1 1092600C00-019
20 211A8626 COVER(HAISEN) 1 1092600C00-020
21 216D0448 PIN_HINGE 1 1092600C00-021
22 226G0056 PLUNGER 1 1092600C00-022
23 0926B00G SLIDE(BASE) 1 1092600C00-023
24 211G3564 BLOCK 1 1092600C00-024
26 0926C617 FRONT_HANDLE 1 1092600C00-026
27 0926C618 REAR_HANDLE 1 1092600C00-027
28 0926C612 CONNECTOR_BOX 1 1092600C00-028
29 0926C60F BASE_PLATE 1 1092600C00-029
30 213C0209 ROLLER(A) 1 1092600C00-030
34 0926C60D TOGGLE_CLAMP 1 1092600C00-034
35 4U240497 UNIT_DRIVER 1 1092600C00-035
36 0926C60H SLIDE_PLATE 1 1092600C00-036
37 0926C619 SLIDE_RAIL 2 1092600C00-037
38 0926C60J SLIDE_BLOCK 1 1092600C00-038
39 0926C60G UNIT_BASE 1 1092600C00-039
40 0926C60S PIN_GUIDE 1 1092600C00-040
41 6P450434 NAMEPLATE_NOTIC 4 1092600C00-041
42 0926260V SEAL(LOCK) 1 1092600C00-042
43 0926260W SEAL(SLOT) 1 1092600C00-043
44 0926B008 PLATE_NOTICE 1 1092600C00-044
45 0804000E PLATE_INDEX 1 1092600C00-045
46 09262613 SEAL(NOTICE) 1 1092600C00-046
47 0804000D PLATE_INDEX 1 1092600C00-047
50 221AA097 ROHS_HEX-SCT 1 1092600C00-050
GS-FB100
