EN PCT K ey f eatures - Aut omatic in-line IC T , Flash and Functional T est handler - Single stage, dual stage and double side d contacting - High precision press mechanism - Independent top and bo ttom fixture alignmen…
EN PCT
Key features
- Automatic in-line ICT, Flash and Functional Test
handler
- Single stage, dual stage and double sided contacting
- High precision press mechanism
- Independent top and bottom fixture alignment XYR
with closed loop fiducial alignment
- Precise contacting down to 200µm test points
- Fine pitch applications
- Easy and fast fixture exchange
- Intuitive user interface “EasyTest”
Options
- 10 kN/15kN Press down force
- Automatic width adjustment
- Programmable stop positions for pitching of the
product in transport direction
- Fixture identification by RFID, allowing programmable
head positions

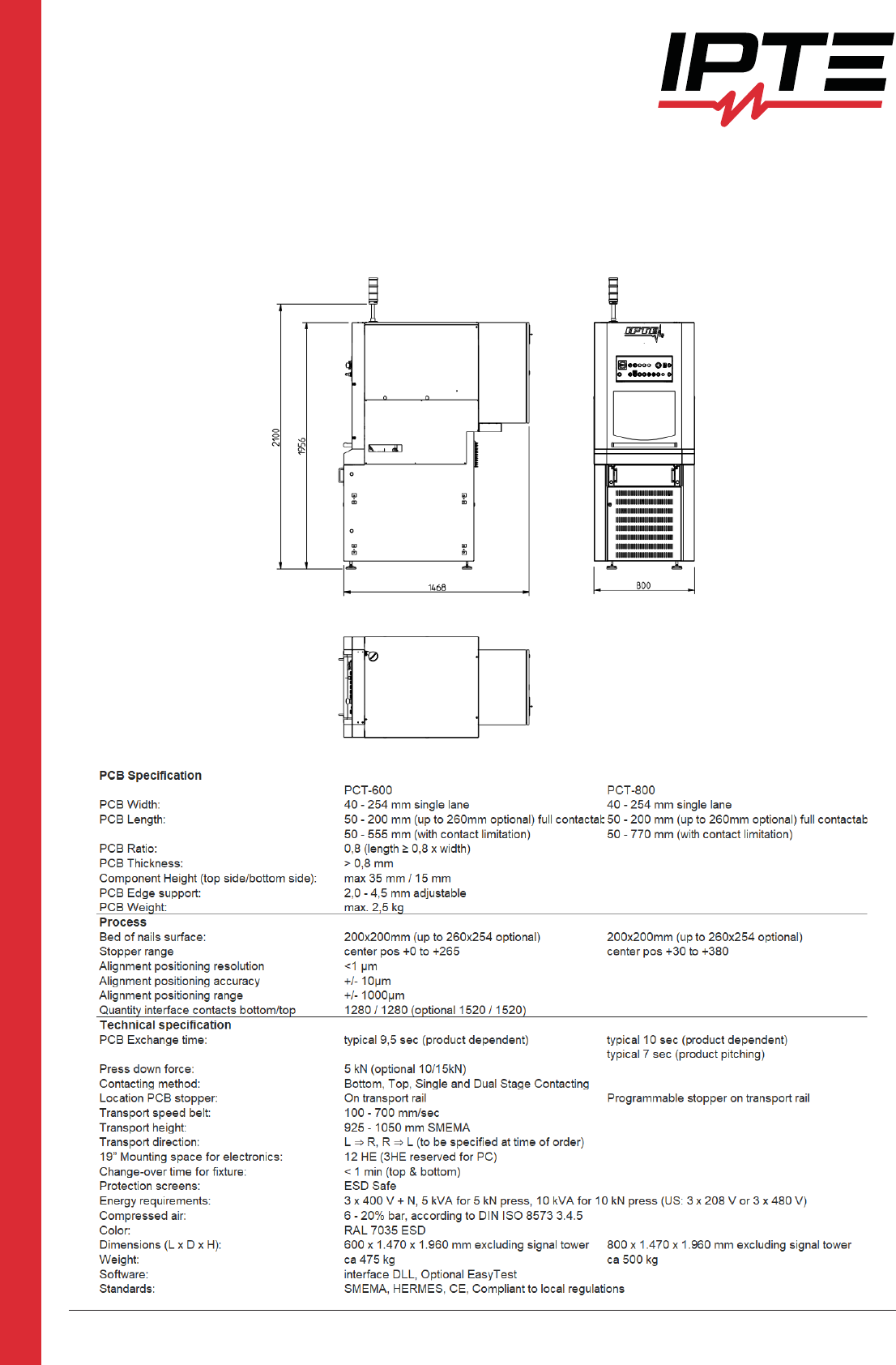

PCT
Precision Contacting Test handler

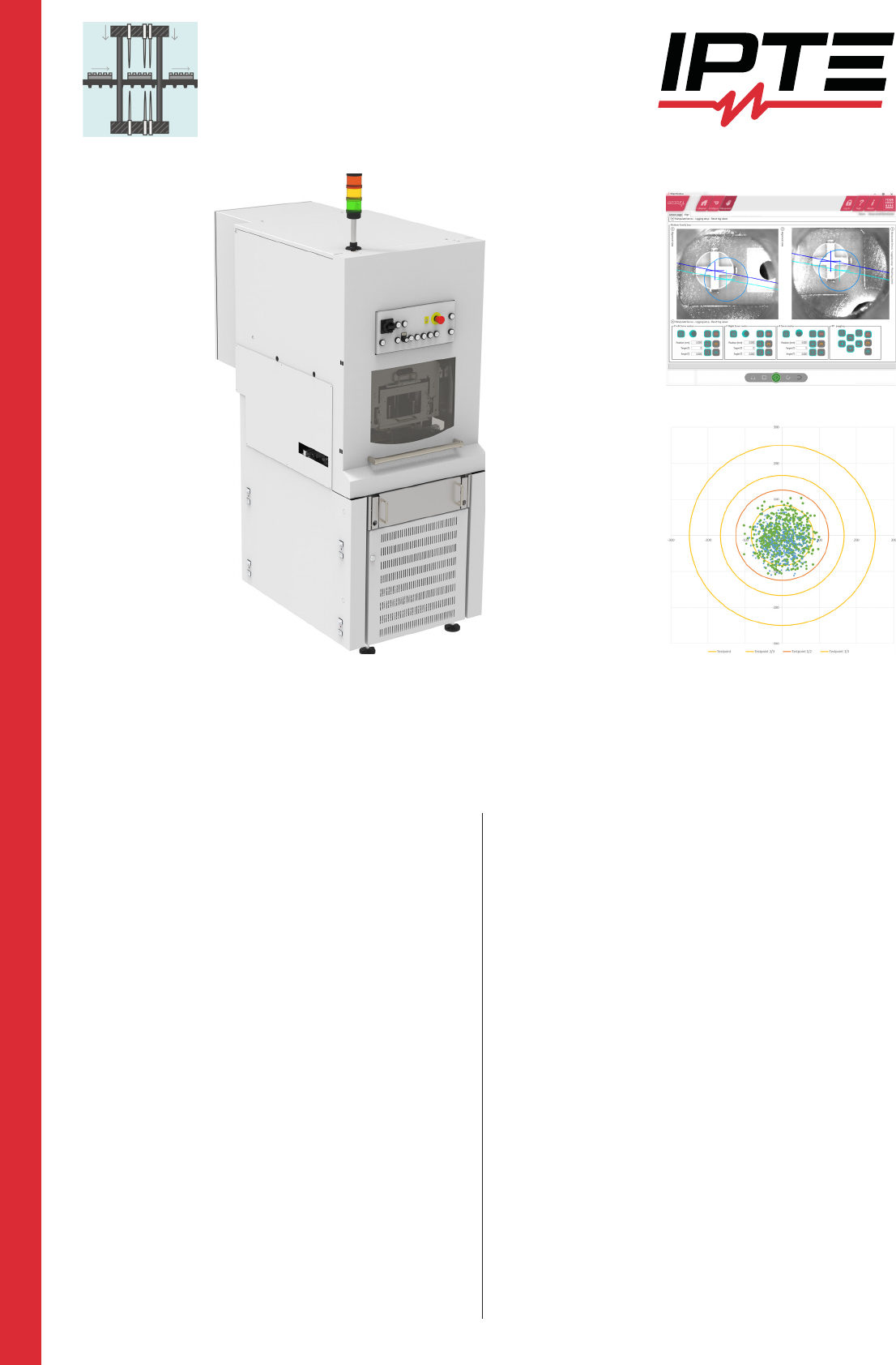

The PCT Precision Contacting Test handler is an
inline 19” rack-type handler for performing in-circuit
tests and functional tests on PCBs and Hybrids
that are routed through the handler on transport
belts.
Its functionality lies in the fact that it can adjust the
top and bottom fixture towards the board layout by
alignment on fiducials.
It is a compact test handler that is intended to
precise contact small test pads down to 200µm
diameter.
It has a high pin count interfacing towards the
movable top and bottom fixtures making it suitable
for various types of testers.
