Page +$1:+$ 357 DECAN S2 Motor IF Board (13/18) NO. P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 AM03-01 1249A CAB LE ASSY -Z78_D RV_COMMAND 1 2 AM03-013439 A CABLE ASSY -SM51 1 FLA T 2 1 AM03-010…
Page
+$1:+$
356
DECAN
S2

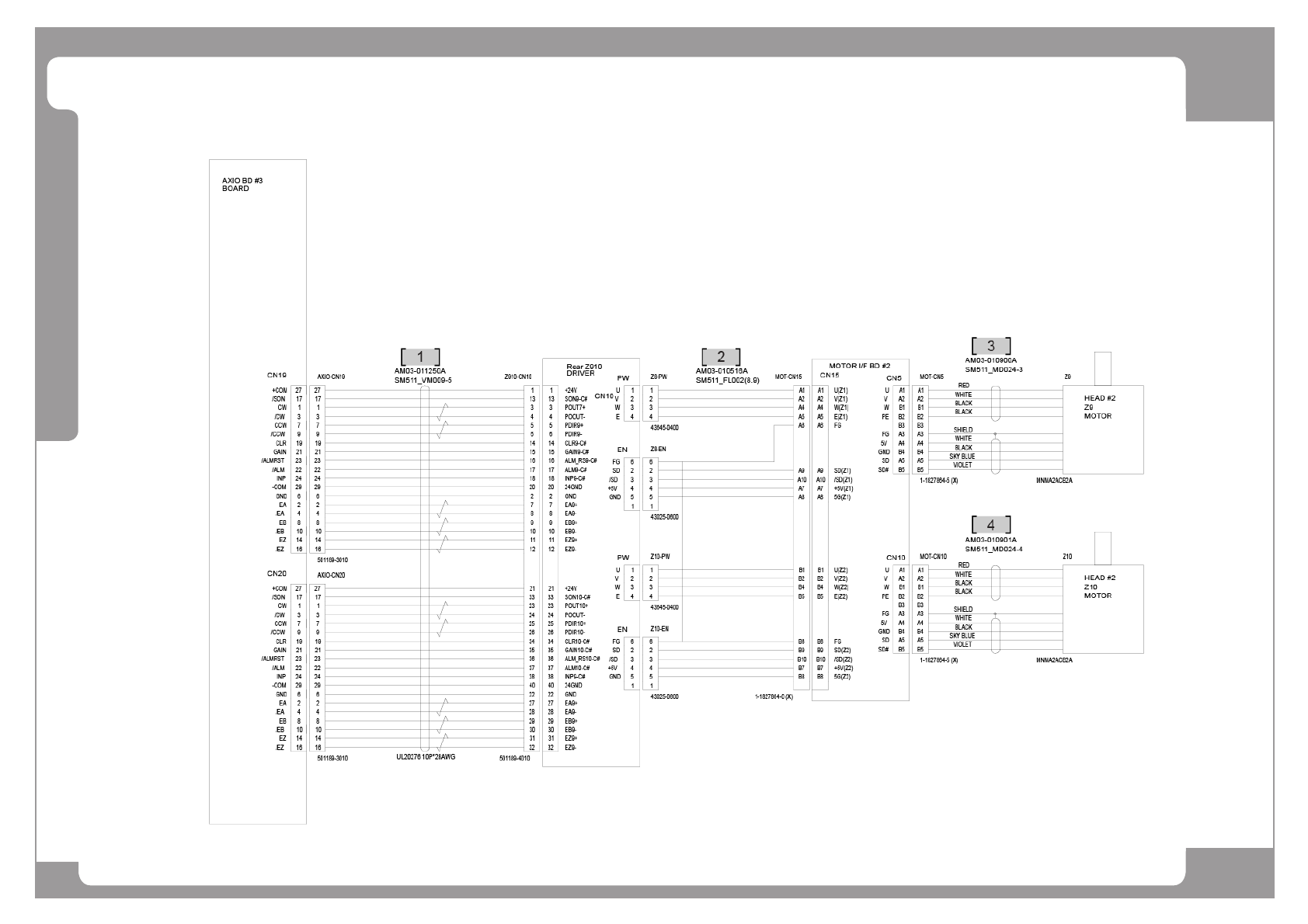

Motor IF Board (13/18)
Page
+$1:+$
357
DECAN
S2
Motor IF Board (13/18)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-011249A CABLE ASSY-Z78_DRV_COMMAND 1
2 AM03-013439A CABLE ASSY-SM511 FLAT 2 1 AM03-010516C
3 AM03-010898A CABLE ASSY-Z7_MOTOR 1
4 AM03-010899A CABLE ASSY-Z8_MOTOR 1
Page
+$1:+$
358
DECAN
S2
Motor IF Board (14/18)
