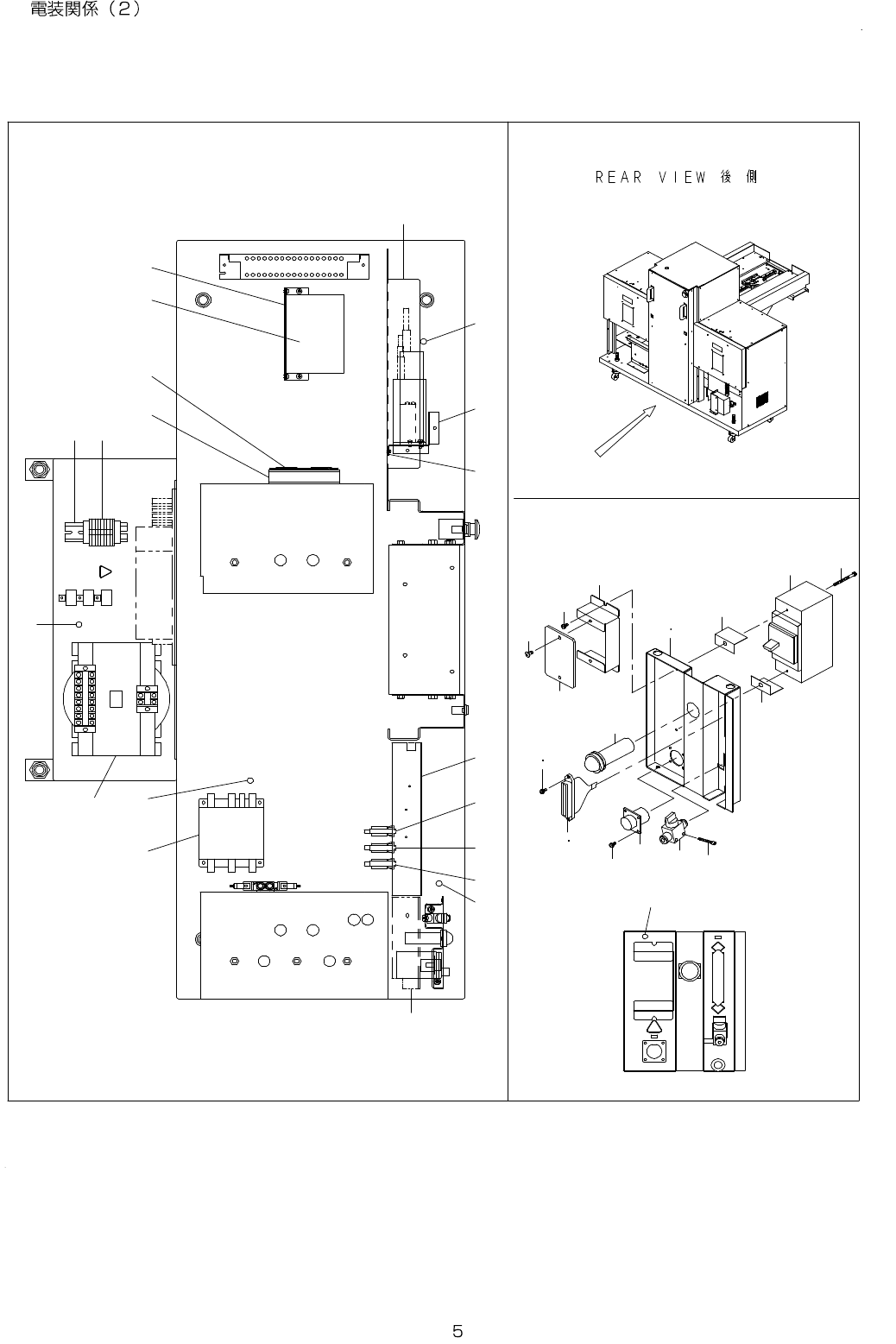

- - 3. EL ECTR IC APP ARATUS C OM PON ENT S (2) 2 3 4 5 6 7 8 9 1 0 1 1 1 2 1 3 1 5 1 6 1 7 1 4 1 2 4 1 8 2 3 2 8 2 1 2 2 1 9 2 7 2 5 2 6 1 8 2 9 2 0 1 1 1 1 1 1 3 3 3 2 3 4 3 6 3 5 3 0 3 1
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
E9641-040-000 RELAY MY-2 DC-24V 4
2 400-49535 CG SW S.V. CABLE ASM 1
3 400-49558 EMERGENCY SW(REAR) ASM 1
4 400-45117 STK M SUPPLY SW ASM 1
5 400-45119 STK S SUPPLY SW ASM 1
6
#03
400-95838 MAIN PCB ASM(5D) 1
7
#02
401-37758 MAIN PCB A ASM(5D) 1
8 HA-0052400-0A CIRCUIT PROTECTOR 1
9 400-49509 FAN MOTOR ASM 1
10 400-40687 Z SERVO DRV ASM 1
11 400-45711 STEPPING MOTOR DRIVER 1
12 HX-0055000-00 POWER SUPPLY UNIT 1
13 HA-0052400-0C CIRCUIT PROTECTOR 1
14 HB-0014000-00 RELAY 1
15 HB-0014200-00 RELAY 3
16 400-49516 SURGE ABSORBER ASM 1
17
#01
HB-0014300-00 SAFETY RELAY UNIT 1
18
#01
HB-0013900-00 RELAY 3
19
#01
400-50015 CARRIER RAIL 1
20
#01
HK-0498500-10 TERMINAL BASE 2
21
#01
HK-0498900-0D CONNECTOR PARTS 2
22
#01
HK-0498900-00 CONNECTOR PARTS 1
23 HK-0498500-10 TERMINAL BASE 10
24
#01
HK-0498500-10 TERMINAL BASE 8
25 HK-0498900-0D CONNECTOR PARTS 2
26 HK-0498900-00 CONNECTOR PARTS 2
27 HX-0035400-0G BOARD PARTS 4
28 SL-4030891-SC SCREW M3X8 4
29 SL-4030891-SC SCREW M3X8 4
30 400-41117 SCN PCB ASM 1
31 HA-0052400-00 CIRCUIT PROTECTOR 1
32 400-50015 CARRIER RAIL 1
33
#02
400-72504 ROM 5DNR ASM 1
- -
3. ELECTRIC APPARATUS COMPONENTS (2)
2
3
4
5
6 7
8
9
1 0
1 1
1 2
1 3
1 5
1 6
1 7
1 4
1
2 4
1 8
2 3
2 8
2 1 2 2
1 9
2 7
2 5 2 6
1 8
2 9
2 0
1 1
1 1
1 1
3 3
3 2
3 4 3 6
3 5
3 0
3 1
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-49016 BREAKER COVER 1
2 400-48785 R DRIVER BR 1
3 400-45704 RESISTANCE 1
4 400-49509 FAN MOTOR ASM 1
5
#01
HM-0003300-30 FAN GUARD 1
6 400-50012 CARRIER RAIL 1
7 HK-0498500-10 TERMINAL BOARD 27
8 400-45701 TRANSFORMER 1
9 400-45714 NOISE FILTER 1
10 400-49276 DRIVER COVER 1
11 E9567-319-000 EARTH MARK 6
12 400-49274 DRIVER BR 1
13 400-49275 DRIVER BR 1
14 HA-0052400-00 CIRCUIT PROTECTOR 1
15 400-48784 PCB BR 5D 1
16 HA-0052400-0A CIRCUIT PROTECTOR 1
17 HA-0052400-0C CIRCUIT PROTECTOR 1
18 400-49165 BREAKER COVER 2
19 PV-0100060-00 HAND VALVE 1
20
#01
E2411-723-000 BREAKER COVER B 1
21 400-48783 MAIN SW BR 5D 1
22
#02
400-94907 MAIN_SW_BR_5D 1
23 HA-0058500-00 CIRCUIT PROTECTOR 1
24 400-49504 POWER LAMP CABLE ASM 1
25 400-45200 I/F CABLE ASM 1
26
#02
400-96122 5D I/F CABLE ASM 1
27 400-49489 AC POWER INPUT CABLE ASM 1
28
#01
E2410-723-000 BREAKER COVER A 1
29 E2106-716-000 POWER SUPPLY SEAL 1
30 SM-6032502-TN SCREW 2
31 SL-4034091-SC SCREW M3X40 2
32 SL-4030891-SC SCREW M3X8 2
33 SM-0040801-SC SCREW 2
34 SL-4030881-SC SCREW M3 L=8 2
35 SL-4030881-SC SCREW M3 L=8 4
36
#02
SM-4860501-SB SCREW M2.6 L=5 2
