DEK V ectorGuard™ frame solutions ASM’ s patented, award-winning DEK V ectorGuard TM System is the industry standard for high-performance stencil frame technology to facilitate fast changeover , tension control and longe…

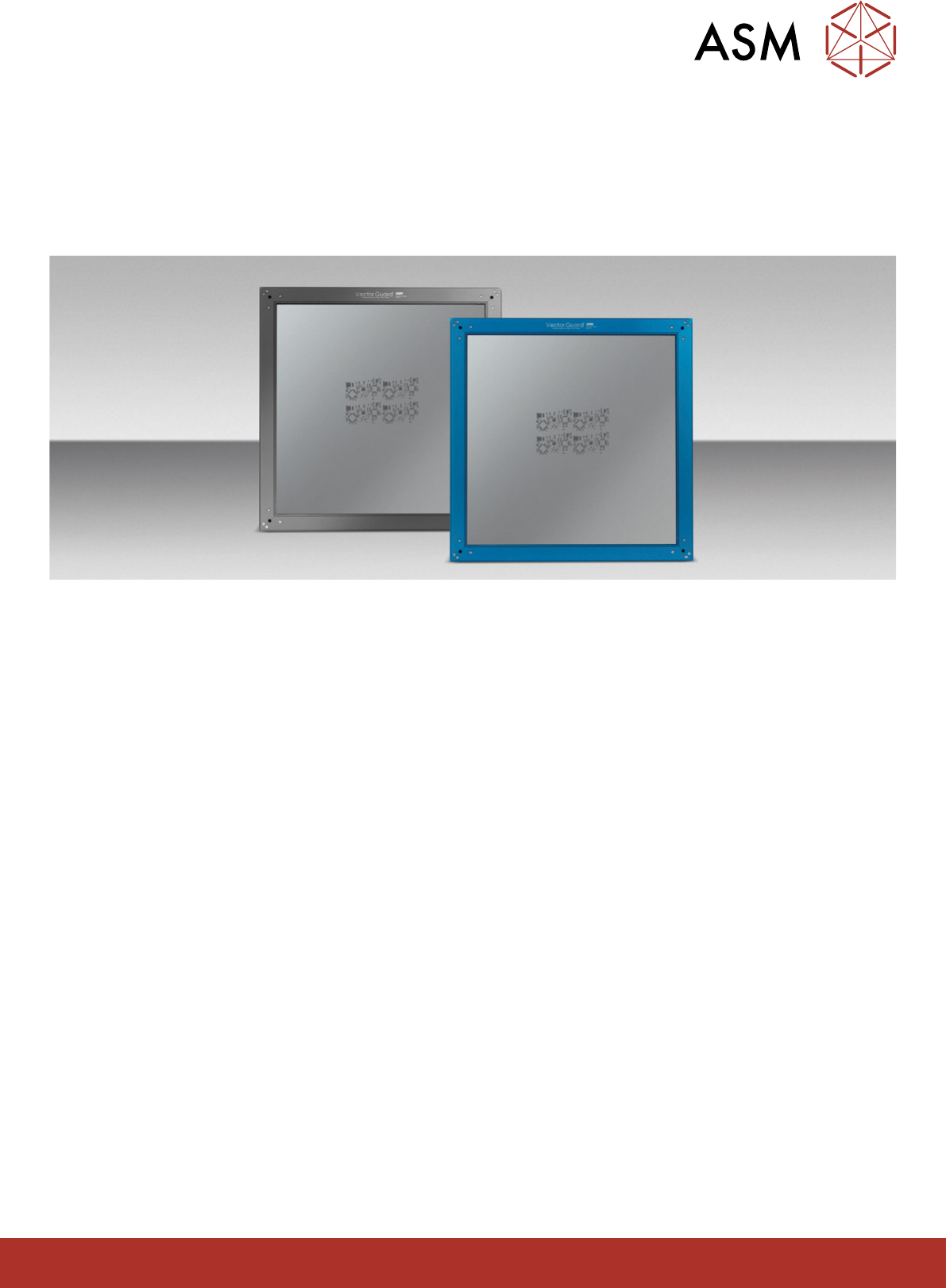

DEK VectorGuard™ frame solutions
ASM’s patented, award-winning DEK VectorGuard
TM
System is the industry
standard for high-performance stencil frame technology to facilitate fast
changeover, tension control and longer lifetime.
ASM invented the unique DEK VectorGuard™ single-frame
stencil system and replaced older industry mechanisms that
were cumbersome, malfunction-prone and unsafe for operators
with a simple, air pressure-controlled frame design. Today,
DEK VectorGuard™ is the industry benchmark for high quality
stencil technologies, ideal for fast changeover and product
adaptability.
In addition to its changeover advantages, DEK VectorGuard
TM
delivers consistent tension over the life of the stencil. Traditional
mesh-mounted stencils have initial high tension but, with use and
cleaning, the elasticity of the stencil mesh can weaken, resulting
in areas of “sag” that can adversely aect stencil aperture to pad
alignment and printing yields.
Features and benets:
■ Unique mechanical tensioning system that secures the foil in
the frame
■ Evenly distributed tension across the entire stencil
■ Greater, more consistent tension over the life of the stencil as
compared to mesh-mounted stencils
■ No epoxy bonds that can degrade or break down over time
■ Easy-to-use and operator-safe
■ Reduces stencil storage space requirements by as much
as 75%
■ Global availability and support
The DEK VectorGuard
TM
frame system is available in both a
classic version and a high tension version to address varying
manufacturing needs.
DEK VectorGuard
TM
Classic frame
The proven, original DEK VectorGuard
TM
Classic frame system is
ideal for standard SMT processes that do not generally employ
ultra-ne-pitch, highly miniaturized dimensions. Cost-eective
and versatile, DEK VectorGuard
TM
Classic delivers the benets
of quick changeover, simplied storage, operator safety and low
cost-of-ownership.
DEK VectorGuard
TM
High Tension frame
DEK VectorGuard
TM
High Tension frame, which is compatible
with all DEK VectorGuard
TM
foils, is designed specically for
processes that integrate miniaturized dimensions and require
extreme solder paste deposit denition. The DEK VectorGuard
TM
High Tension frame provides 45% greater tension than the
DEK VectorGuard
TM
Classic frame, facilitating superior material
transfer eciency for small dimension printing.
30
|
Process Support Products
|
ASM Stencil frame solutions
DEK VectorGuard™ FRAME
Part number Description Available stencil types
SAP DEK
Stainless
steel
Nickel laser
cut
DEK
PumpPrint
TM
E-Formed Tension Adaptable
to 29 x 29“
03128711 800023 VG260 High Tension
23 x 23 x 1.2“ (584 x 584 x 30 mm)
· · ·
≈ 47N
·
03130410 800029 VG265 wide High Tension
29 x 29 x 1.2“ (736 x 736 x 30 mm)
·
≈ 47N
03130429 800039 VG265 High Tension
29 x 23 x 1.2“ (736 x 548 x 30 mm)
· · ·
≈ 47N
·
03128796 430585 VG260
23 x 23 x 1.2“ (584 x 584 x 30 mm)
· · · ·
≈ 32N
·
03130214 430586 VG265
23 x 29 x 1.2“ (584 x 736 x 30 mm)
·
≈ 32N
·
03130215 430587 VG265 wide
1
29 x 29 x 1.2“ (736 x 736 x 30 mm)
·
·
≈ 32N
·
03132464 186770 VG 650 x 550
650 x 550 mm
· · ·
≈ 32N
DEK VectorGuard™ ACCESSORIES
Part number Description Remarks
SAP DEK
03130337 430905 Wash-frame for VG260 stencils Bottom profile 40 x 40 mm, VG stencil to slide in from the top
03134676 430906 Wash-frame for VG265 stencils Bottom profile 40 x 40 mm, VG stencil to slide in from the top
03130339 430907 Wash-frame for VG265 wide stencils Bottom profile 40 x 40 mm, VG stencil to slide in from the top
03127432 430887 Repair kit without tools Kit includes all materials to re-tube a frame
03131166 186680 Pneumatic fitting Tube fitting to connect to the tube (red head)
03128687 430646 Sidebar set to adapt 23" frame to 29" Adaptor bars to adapt a 23 x 23" or 23 x 29" to a 29 x 29" size
03130217 430647 Foot pedal kit Only need as an additional kit
03138776 186826 BOM 248 VG ROLLER SET OF 4 VG roller set to load VG frame into DEK 248 printer
03132620 430022 AIR PRESSURE FITTING Replacement air fitting for VG frames
03133878 430451 VG ESD Cassette 23x23" Black ESD storage cassette for VG (23"x23") stencil, black
03133877 430452 VG ESD Cassette 23x29" Black ESD storage cassette for VG (23"x29") stencil, black
03132622 430609 ESD Plastic Cassette Hook ESD Hook for ESD storage cassette
03130224 431394 Pressurebooster Pressure booster for VG high tension frame loading/unloading
03162857 800033 VG Service Kit Level 1 Service Please contact your local PSP sales representative
03162858 800034 VG Service Kit Level 2 Service Please contact your local PSP sales representative
03162859 800036 VG Service Kit Level 1 Upgrade Please contact your local PSP sales representative
00152975 800050 Annual Maintenance VG 23x23 (30 mm) Please contact your local PSP sales representative
00152976 800051 Annual Maintenance VG 23x29 Please contact your local PSP sales representative
00152977 800052 Annual Maintenance VG 29x29 Please contact your local PSP sales representative
00152979 800053 Calibration & Certification VG 23x23 (30 mm) Please contact your local PSP sales representative
00152980 800054 Calibration & Certification VG 23x29 Please contact your local PSP sales representative
00152981 800055 Calibration & Certification VG 29x29 Please contact your local PSP sales representative
00152966 800059 Annual Maintenance VG 23x23 (26 mm) Please contact your local PSP sales representative
00152978 800060 Calibration & Certification VG 23x23 (26 mm) Please contact your local PSP sales representative
03137294 800062 Annual Maintenance VG 600x550 / VG 650x550 Please contact your local PSP sales representative
Note: 1. Limited stencil thickness 5, 6, 7 and 8 mils
See also ASM Stencils and screens storage on page 55 for DEK VectorGuard
TM
cabinets.
31

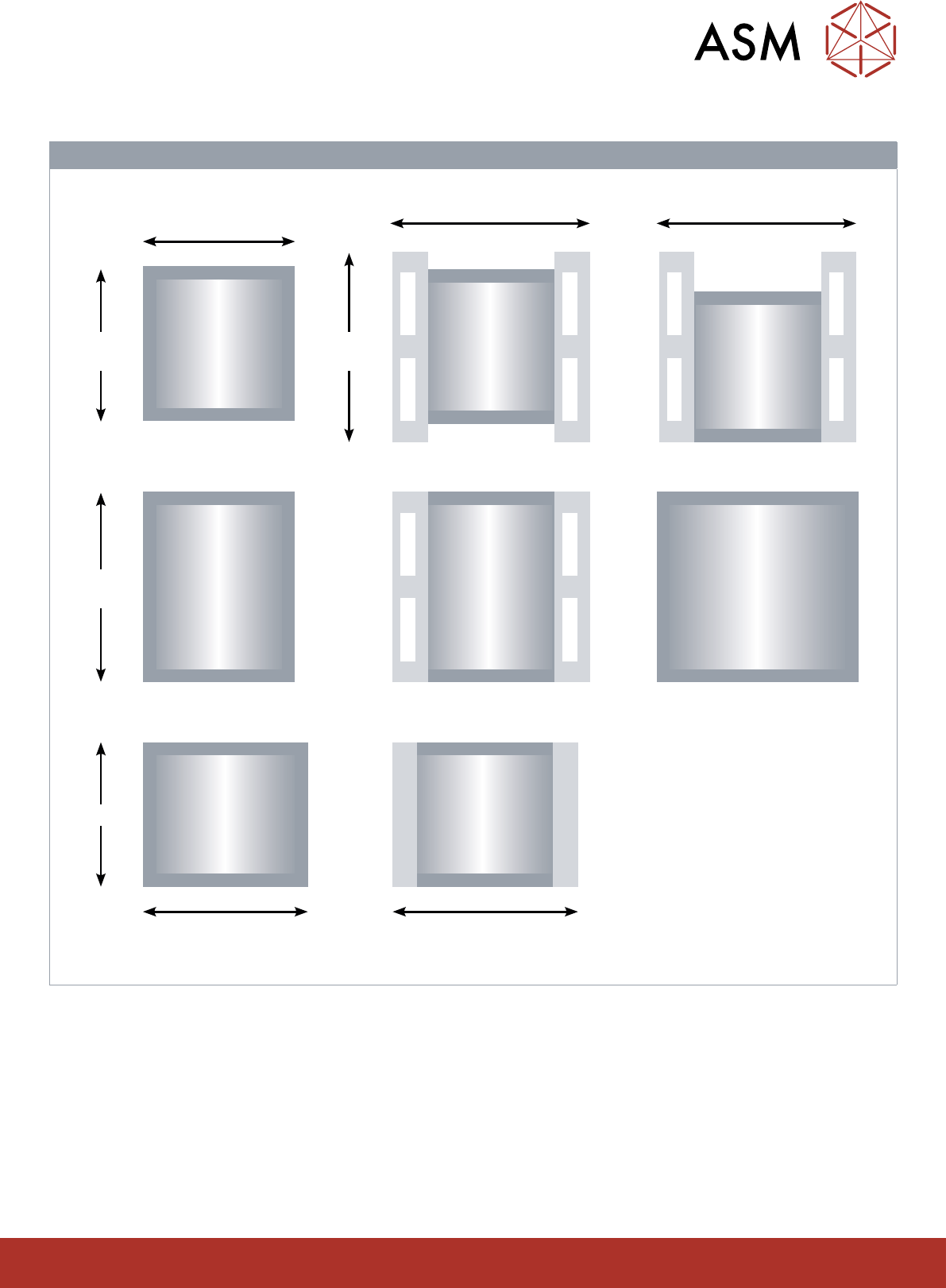

DEK VectorGuard™ FRAME SOLUTIONS, SIZES
23” (584 mm)
29” (736 mm) 29” (736 mm)
600 mm 650 mm
29”
(736 mm)
23”
(584 mm)
29”
(736 mm)
550 mm
VG 260
P/N 430585
VG 265
P/N 430586
VG Asia
600 x 550 mm
VG 260
Centre adapted
P/N 430585
with
P/N 430646
VG 265
Adapted
P/N 430586
with
P/N 430646
VG Asia
Adapted
650 x 550 mm
VG 260
Front adapted
P/N 430585
with
P/N 430646
VG 265 wide
P/N 430587
32
|
