General
Design Basic Contact Probe
Family F050
Pitch [mm/mil] 1.27 / 50
Electrical specifications
Typical contact resistance [mOhm] 20.00
Mechanical specifications
Preload [cN] 90.00
Spring force [cN] 200.00
Pointing accuracy +/- [mm] 0.05
Dimensions
Tip style diameter [mm] 0.50
Materials & surfaces
Plunger material Steel
Plunger plating Longtime Gold
Barrel material Bronze
Barrel plating Gold
Spring material Spring steel
Spring plating Gold
Accessories
Basic Contact Probes
Order code 1000339
Family drawing

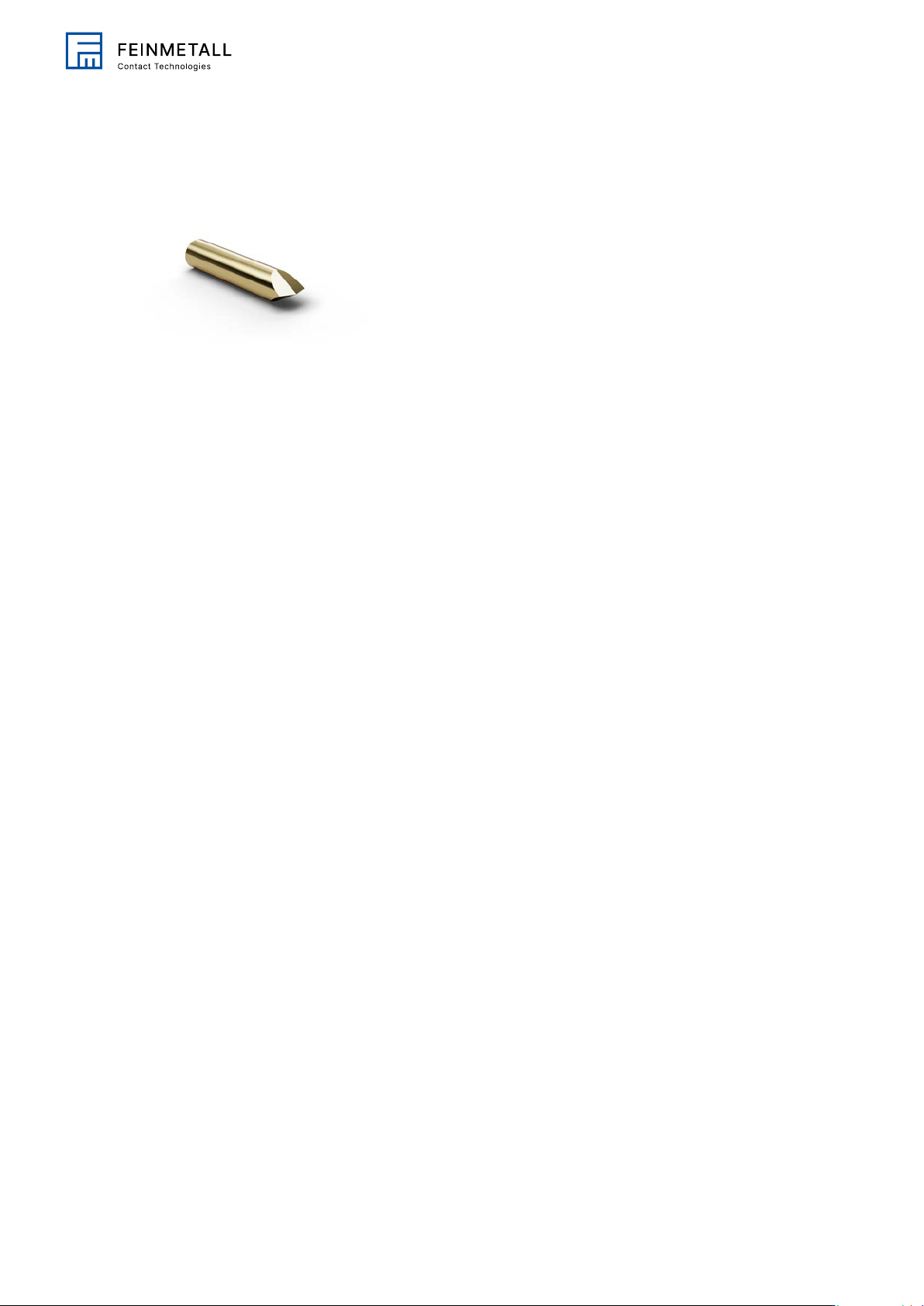

Tip style 1
