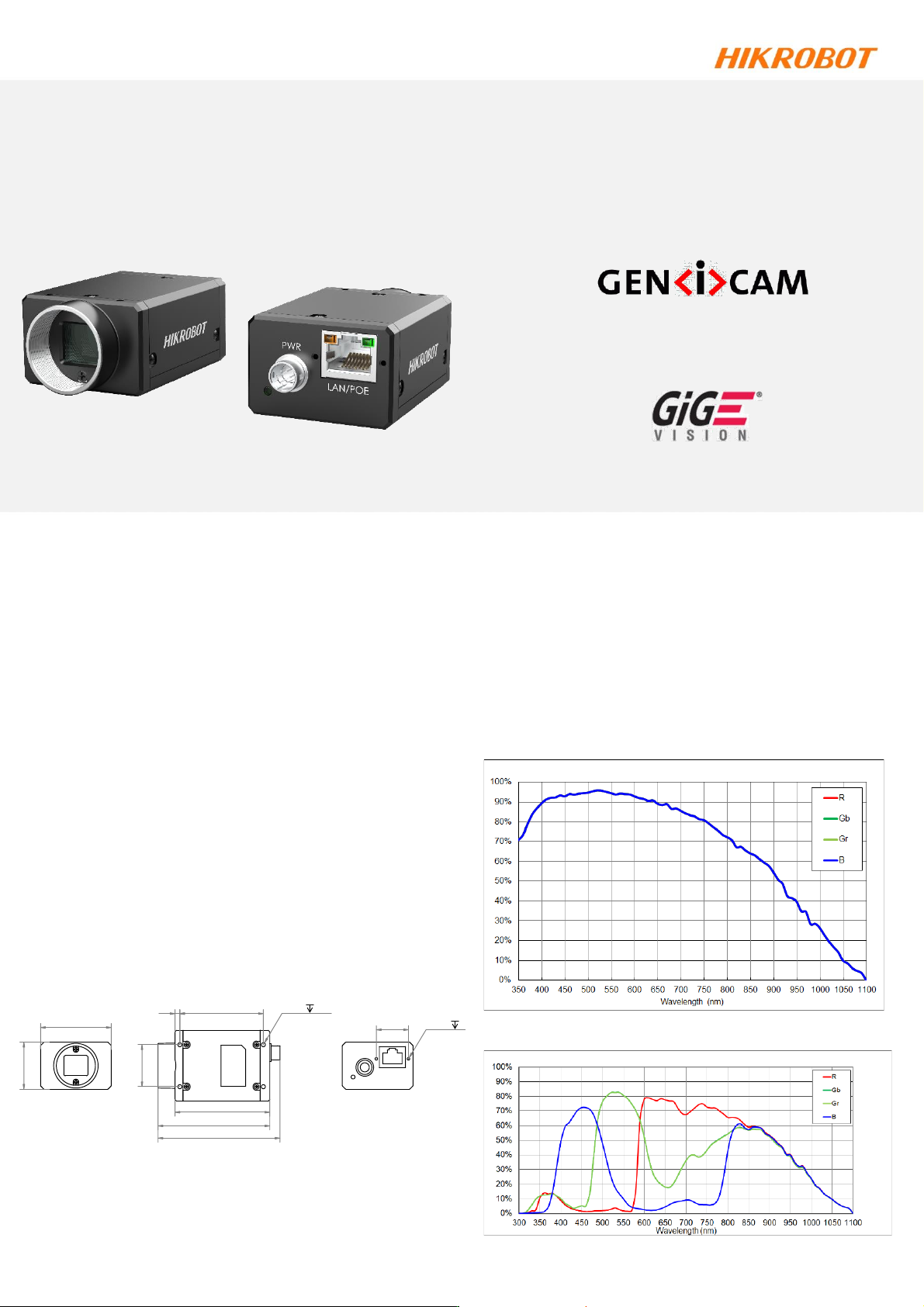

MV-CH100-60GM/GC
10 MP 1" CMOS GigE Area Scan Camera
Introduction
MV-CH100-60GM/GC camera adopts CMOS global
sensor to provide high-quality images. It uses GigE
interface to transmit non-compressed images in real
time, and its max. frame rate can reach 11.6 fps in full
resolution.
Key Feature
Supports auto or manual adjustment of gain,
exposure time, white balance, LUT, Gamma
correction, etc.
Adopts GigE interface and max. transmission
distance of 100 meters without relay.
Compatible with GigE Vision V2.0 Protocol,
GenlCam Standard, and third-party software
based on the protocol and standard.
Dimension
59
523 4-M3 3.5
29
44
26
20
2-M2 4
68.39
74.69
Unit: mm
Available Model
Mono camera: MV-CH100-60GM
Color camera: MV-CH100-60GC
Applicable Industry
Electronic semiconductor, factory automation,
logistics code reading, medicine packaging, etc.
Sensor Quantum Efficiency
MV-CH100-60GM
MV-CH100-60GC
Specification
Model
MV-CH100-60GM
MV-CH100-60GC
Performance
Sensor type
CMOS, global shutter
Sensor model
Stacked BSI
Pixel size
3.45 µm × 3.45 µm
Sensor size
1"
Resolution
4096 × 2460
Max. frame rate
11.6 fps @ 4096 × 2460 Mono 8
11.6 fps @ 4096 × 2460 Bayer GR 8
Dynamic range
58.2 dB
SNR
43 dB
Gain
0 dB to 24 dB
Exposure time
80 μs to 10 sec
Exposure mode
Off/Once/Continuous exposure mode
Mono/color
Mono
Color
Pixel format
Mono 8/10/10Packed/12/12Packed
Mono 8/10/12,
Bayer GR 8/10/10Packed/12/12Packed,
YUV422Packed, YUV422_YUYV_Packed,
RGB 8, BGR 8
Binning
Supports 1 × 1, 2 × 2, 4 × 4
Decimation
Supports 1 × 1, 2 × 2, 4 × 4
Reverse image
Supports horizontal and vertical reverse image output
Electrical feature
Data interface
Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O
6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-
isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply
9 VDC to 24 VDC, supports PoE
Power consumption
Typ. 2.9 W @ 12 VDC
Typ. 3.0 W @ 12 VDC
Mechanical
Lens mount
C-mount
Dimension
29 mm × 44 mm × 59 mm (1.1" × 1.7" × 2.3")
Weight
Approx. 92 g (0.2 lb.)
Ingress protection
IP40 (under proper lens installation and wiring)
Temperature
Working temperature: –10 °C to 50 °C (14 °F to 122 °F)
Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity
20% RH to 95% RH (no condensation)
General
Client software
MVS or third-party software meeting with GigE Vision Protocol
Operating system
32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
Compatibility
GigE Vision V2.0, GenlCam
Certification
CE, RoHS, KC
