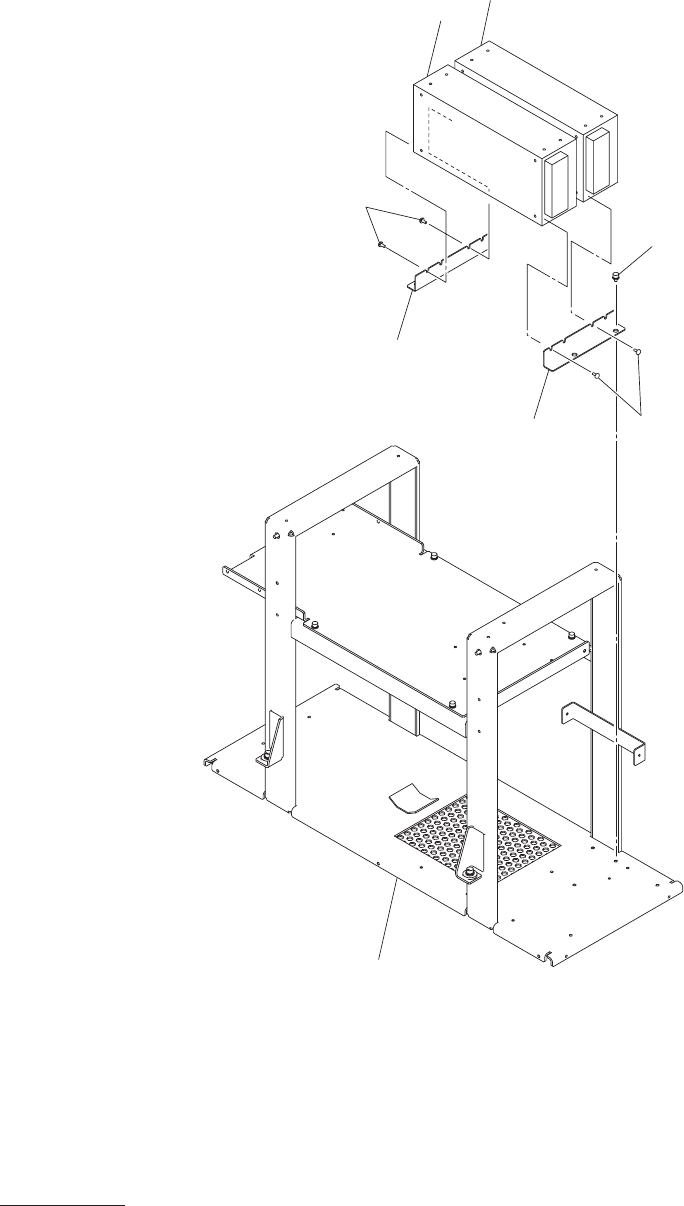

MODEL GXH-1 0409-002 212 電装ボックス R ELECTRICAL BOX R Fig. BR-4 DC 電源２ DC Power Supply 2 See Fig.BR-1 Key No.55 368 362 363 367 . 373 . 378 368 354 354
MODEL GXH-1
1012-004
211
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
BR-3
252 6301326344 BRACKET 1 803BR-210-052 211F9154
260 6301235707 P.C.B,MOUNT 1 -U05 803BR-210-060 4B1
11448
261 6301235752 P.C.B,MOUNT 1 -U12 803BR-210-061 4B1
11452
262 6301242521 P.C.B,MOUNT 1 -U27 803BR-210-062 4B1
11466
266 6301328096 TERMINAL 1 803BR-210-176 4J320218
271
6300007619 BOLT,HEX-SCT 1 M4X8 221A0016
272
6300007732 BOLT,HEX-SCT 2 M5X8 221A0028
273
4111130700 SCR PAN 3X16 8 M3X16 PAN 221E0491
274 4111132209 SCR PAN 4X16 6 M4X16 PAN 221E0503
276 4111412905 WASHER SPR 4 1 SW4 221H0284
277
4111416705 WASHER SPR 5 2 SW5 221H0287
281
4111414008 WASHER V 4X9X0.8 1 FW4 221H0315
282
4111414107 WASHER V 5X10X1 2 FW5 221H0318
283
4111131400 SCR PAN 4X6 2 M4X6 PAN 221E0509
284 4110081706 WASHER SPR 4 2 SW4 F 221H0283
285
4111192104 WASHER V 4X9X0.8 2 FW4 F 221H0314
MODEL GXH-1
0409-002
212
電装ボックス
R ELECTRICAL BOX R
Fig. BR-4 DC
電源２
DC Power Supply 2
See Fig.BR-1
Key No.55
368
362
363
367
.
373
.
378
368
354
354
MODEL GXH-1
1012-004
213
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
BR-4
354 6301326313 BRACKET 2 803BR-210-054 211F9151
362 6301231426 UNIT,POWER 1 -G02 803BR-210-162 4U200252
363 6301254524 UNIT,POWER 1 -G04 803BR-210-163 4U200257
367 6300007732 BOLT,HEX-SCT 2 M5X8 221A0028
368
4110435004 SCR PAN 4X8 8 M4X8 PAN 221E0510
373 4111416705 WASHER SPR 5 2 SW5 221H0287
378
4111414107 WASHER V 5X10X1 2 FW5 221H0318
