290 YASKAWA SIGMA-7 | CATALOG
Cables & Periphery
Servomotor Model Name Length Sigma-7 Flexible Cable Appearance
SGM7A-15A to 25A
1.5 kW to 2.5 kW
For Servo motor
without Holding
Breaks
3 m JZSP-CVMCA12-03-E-G#
5 m JZSP-CVMCA12-05-E-G#
10 m JZSP-CVMCA12-10-E-G#
15 m JZSP-CVMCA12-15-E-G#
20 m JZSP-CVMCA12-20-E-G#
For Servo motor with
Holding Breaks
3 m JZSP-CVMCA12-03-E-G#
5 m JZSP-CVMCA12-05-E-G#
10 m JZSP-CVMCA12-10-E-G#
15 m JZSP-CVMCA12-15-E-G#
20 m JZSP-CVMCA12-20-E-G#
3 m JZSP-CVB12Y-03-E-G#
5 m JZSP-CVB12Y-05-E-G#
10 m JZSP-CVB12Y-10-E-G#
15 m JZSP-CVB12Y-15-E-G#
20 m JZSP-CVB12Y-20-E-G#
Cables for SGM7J and SGM7A rotary motors
*1.
*2.


*3.


*1
*2
*3
L
SERVOPACK
end
Motor end
*1.
*2.


*3.


*1
*2
*3
L
Brake end Motor end
Note: The digit „#“ of the order number represents the design revision.
*1.
*2.


*3.


*1
*2
*3
L
SERVOPACK
end
Motor end
291
Rotary Motors ContentLinear MotorsCable & Periphery Direct Drive MotorsSERVOPACKOption ModulesAppendix
Servomotor Model Name Length Sigma-7 Flexible Cable Appearance
SGM7A-30A
3.0 kW
For Servo motor
without Holding
Breaks
3 m JZSP-CVMCA13-03-E-G#
5 m JZSP-CVMCA13-05-E-G#
10 m JZSP-CVMCA13-10-E-G#
15 m JZSP-CVMCA13-15-E-G#
20 m JZSP-CVMCA13-20-E-G#
For Servo motor with
Holding Breaks
3 m JZSP-CVMCA13-03-E-G#
5 m JZSP-CVMCA13-05-E-G#
10 m JZSP-CVMCA13-10-E-G#
15 m JZSP-CVMCA13-15-E-G#
20 m JZSP-CVMCA13-20-E-G#
3 m JZSP-CVB12Y-03-E-G#
5 m JZSP-CVB12Y-05-E-G#
10 m JZSP-CVB12Y-10-E-G#
15 m JZSP-CVB12Y-15-E-G#
20 m JZSP-CVB12Y-20-E-G#
Cables for SGM7J and SGM7A rotary motors
*1.
*2.


*3.


*1
*2
*3
L
Brake end Motor end
*1.
*2.


*3.


*1
*2
*3
L
SERVOPACK
end
Motor end
*1.
*2.


*3.


*1
*2
*3
L
SERVOPACK
end
Motor end
Note: The digit „#“ of the order number represents the design revision.
292 YASKAWA SIGMA-7 | CATALOG
Cables & Periphery

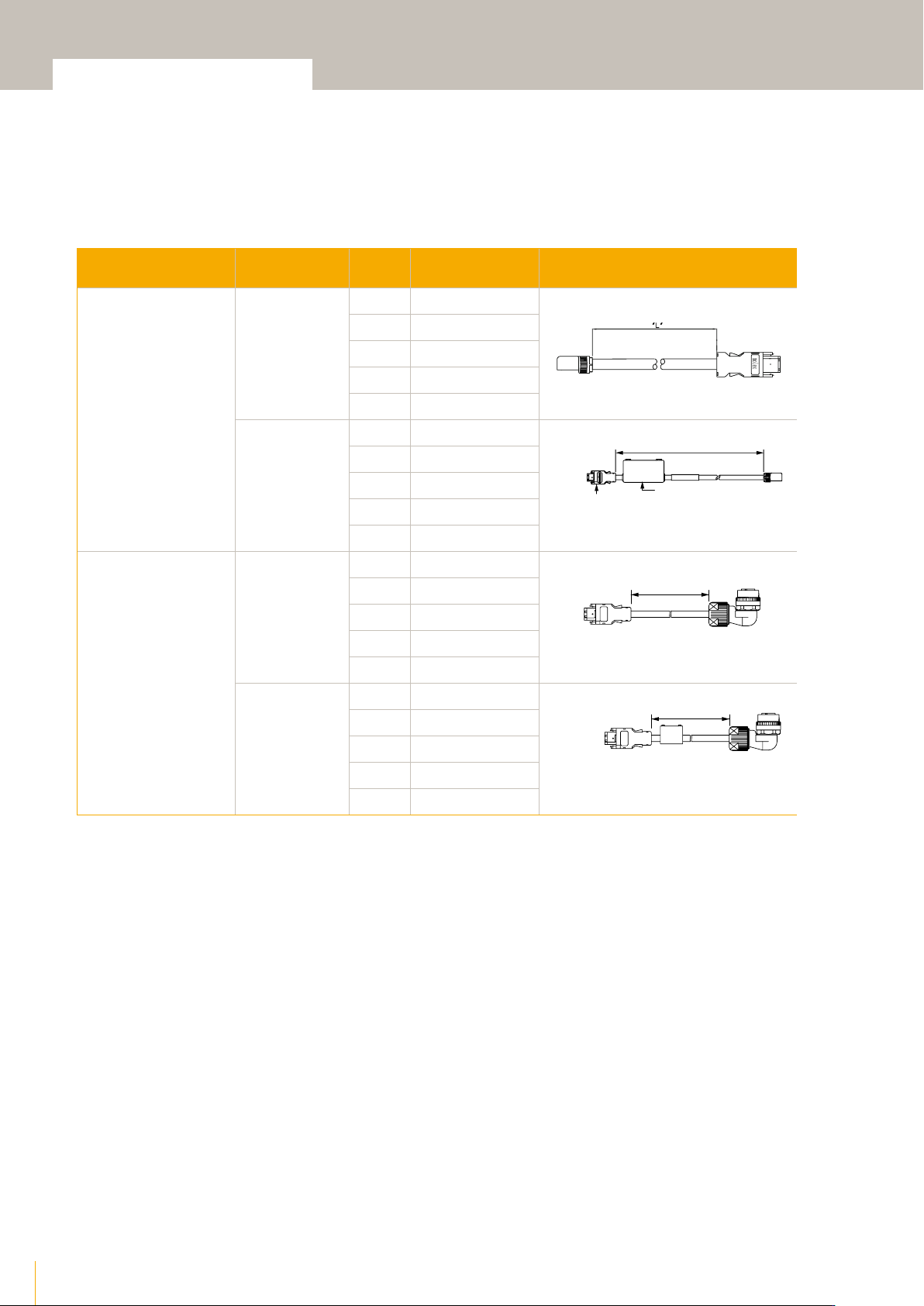

Servomotor Model Name Length Sigma-7 Flexible Cable Appearance
SGM7J-A5 to -08
50 W to 750 W
SGM7A-A5 to -10
50 W to 1.0 kW
For incremental
encoder Cable
installed toward load
3 m JZSP-CSP21-03-E-G#
5 m JZSP-CSP21-05-E-G#
10 m JZSP-CSP21-10-E-G#
15 m JZSP-CSP21-15-E-G#
20 m JZSP-CSP21-20-E-G#
For absolute encoder:
With Battery Case *
1
Cable installed toward
load
3 m JZSP-CSP25-03-E-G#
5 m JZSP-CSP25-05-E-G#
10 m JZSP-CSP25-10-E-G#
15 m JZSP-CSP25-15-E-G#
20 m JZSP-CSP25-20-E-G#
SGM7A-15 to -30
1.5 kW to 3.0 kW
For incremental
encoder
3 m JZSP-CVP12-03-E-G#
5 m JZSP-CVP12-05-E-G#
10 m JZSP-CVP12-10-E-G#
15 m JZSP-CVP12-15-E-G#
20 m JZSP-CVP12-20-E-G#
For absolute encoder:
With Battery Case *
1
3 m JZSP-CVP27-03-E-G#
5 m JZSP-CVP27-05-E-G#
10 m JZSP-CVP27-10-E-G#
15 m JZSP-CVP27-15-E-G#
20 m JZSP-CVP27-20-E-G#
Encoder Cables for SGM7J and SGM7A rotary motors
up to 20m length
*1. If a battery is connected to the host controller, the Battery Case is not required. If so, use a cable for incremental encoders.
Encoder end SERVOPACK end
•
•
•
Encoder (Servomotor) End
•
Plug Connector
(Crimped)(Molex Japan Co., Ltd.)
Battery Case
(Battery attached)
L
Connector
(Molex Japan Co., Ltd.)
•
•
•
Encoder (Servomotor) End
•
Connector (Crimped)
(Molex Japan Co., Ltd.)
CM10-AP10S-¡-D
(DDK Ltd.)
SERVOPACK EndEncoder End
L
molex
Connector
(Crimped)(Molex Japan Co., Ltd.)
CM10-AP10S-¡-D
(DDK Ltd.)
SERVOPACK EndEncoder End
Battery Case
(Battery Attached)
L
molex
Note: The digit „#“ of the order number represents the design revision.
