Main Switch Page 1 / 3 18.11.2021

100%1 / 3

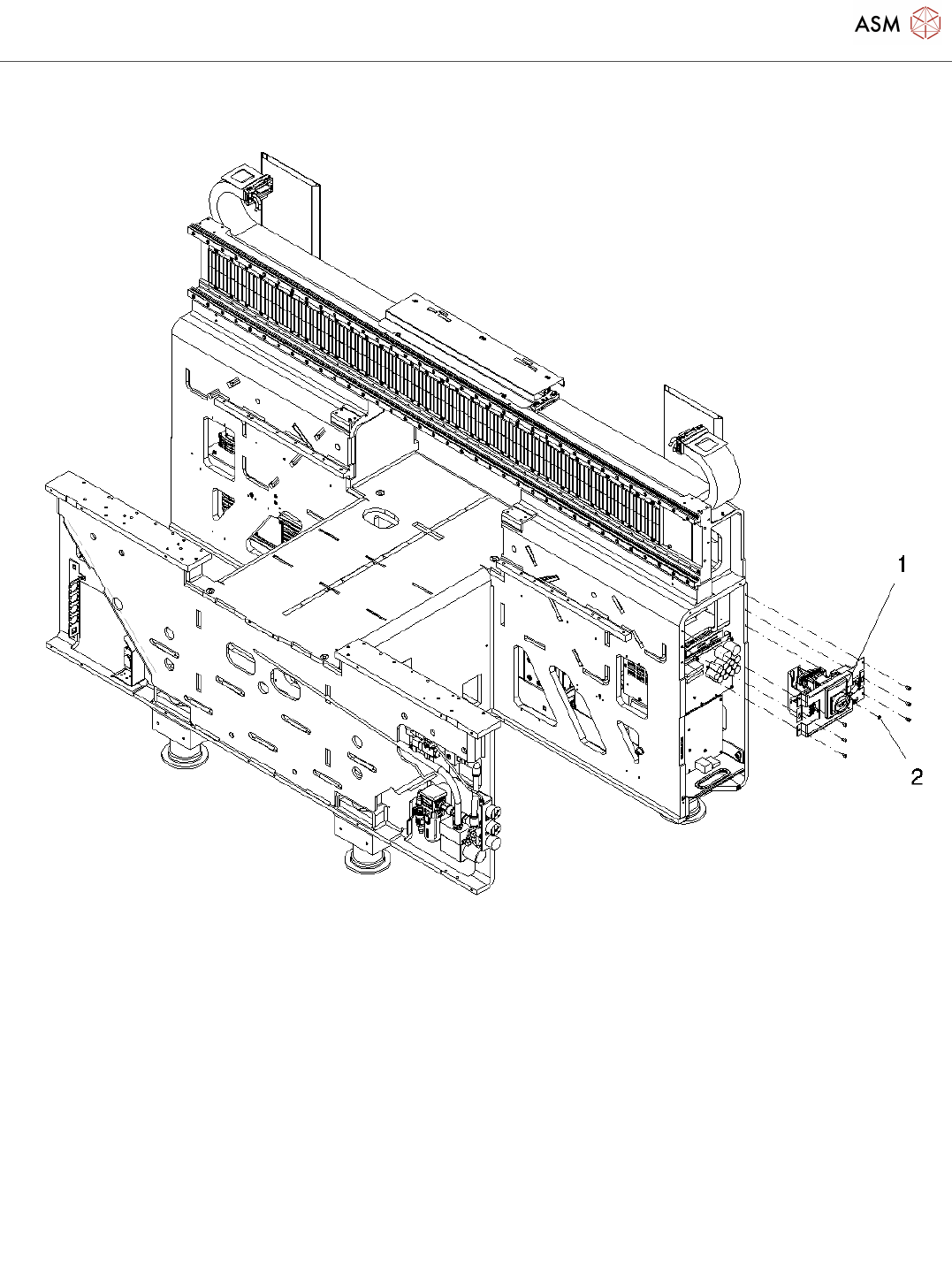

Main Switch
Page 1 / 3 18.11.2021

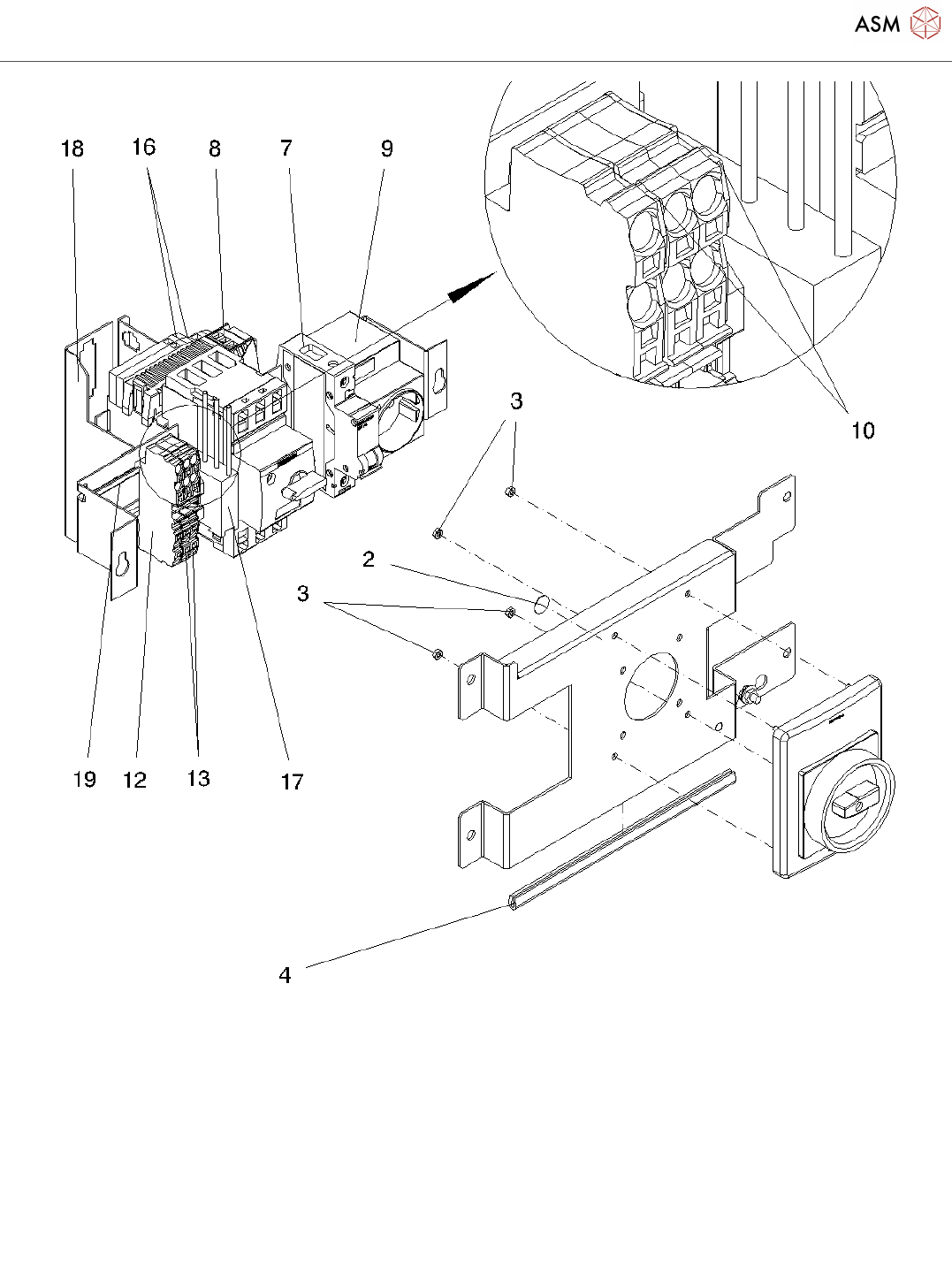

Main Switch
Page 2 / 3 18.11.2021
Main Switch
Page 3 / 3 18.11.2021
Pos. Item no. Description Part marking
1 03110639-02 MAIN SWITCH DRAWER CPL.
2 00341997-01 LABEL GROUNDING POINT GNYE
D12.5
3 03008162-01 ISO 4032 - M3-A2-70 STANDARD PARTS
4 03125732-01 EDGE PROTECT. BOTTOM EDGE
MAIN SWITCH TX
00318998S02 CANT HEATER 1 METER SPARE PART
03125995-02 MAIN SWITCH DRAWER EL. CPL.
7 03098363-01 CIRCUIT BREAKER 5SY4 1-POLE 10A
C
SPARE PART
8 03112748-01 POWER SUPPLY 24V/1,3A PULS
ML30.241
SPARE PART
9 00375320-01 SOCKET RAIL MOUNTING SD-
D/SC/LA/GY
SPARE PART
10 03070138-01 END/INTERMEDIATE PL. 1MM OG
2004-1492
03070135-01 TERMINAL BLOCK GY 4-COND.
4MM? 2004-1401
12 03070136-01 TERMINAL BLOCK BU 4-COND.
4MM? 2004-1404
13 03070137-01 GROUND TERM. BLOCK 4-CON.
4MM? 2004-1407
03103308-01 FERRULE 1.50MM² 10MM BLACK
00303570-01 MATE-N-LOK SOCKET 5-PIN
16 03065954-01 OUTPUT COUPLING LINK 24V AC/DC
1CO
Spare Part
17 03097216-01 EMC SUPPRESSOR MOD. RC 3X400V
575VAC 4KW
SPARE PART
18 03128076-01 HOLDER CPL.
19 03122894-01 TOP HAT RAIL B35XH7.5XL75
00385596-02 MOUNTING RAIL
