Overview of technical data
Maximum values
Placement performance
Benchmark value 96,000 comp./h
Component range 0201 (metric) to 27 mm x 27 mm
Placement accuracy ± 15 µm (3)
Min. lead pitch 50 µm
Min. lead width 25 µm
Min. ball pitch 50 µm
Min. ball diameter 25 µm
Feeding capacity (component trolley) 80 SIPLACE SmartFeeder 8 mm Xi
Board format (length x width) 460 mm x 375 mm
Camera 6 illumination levels
Machine base: Telegray
(RAL 7047)
Covers: Pearl dark gray
(RAL 9023 )
Covers: Telegray
(RAL 7047)

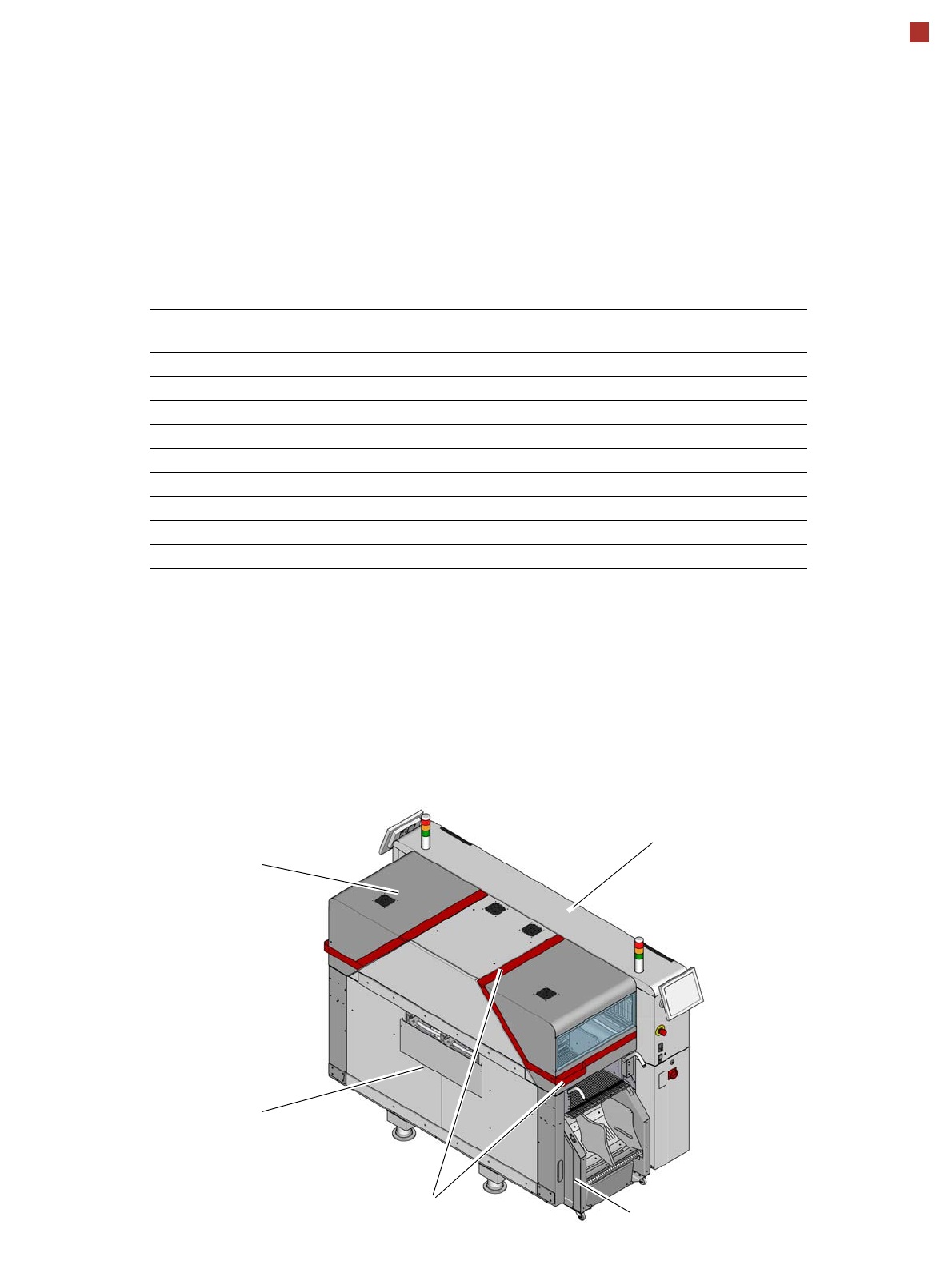

Machine colors SIPLACE TX m
Component trolley: Pearl dark gray
(RAL 9023 )
Handles/strips: Ruby red
(RAL 3003)
