YV100X(XT)-S_YV180X-S_KV8-M715H-50_MAINTE_PARTS_SET_20150511_.pdf.pdf

YV100X(XT)-S, YV180X-S : KV8-M715H-50 MAINTE. PARTS SET Yパッキンの方向に注意 Caution Y-packing direction No. 1 2 3 4 5 6 7 8 Qty 24 8 16 2 6 4 8 16 Part No. 90200-01J125 90200-10J030 90990-17J007 90990-17J008 90990-17J010 90990-1…

100%1 / 1

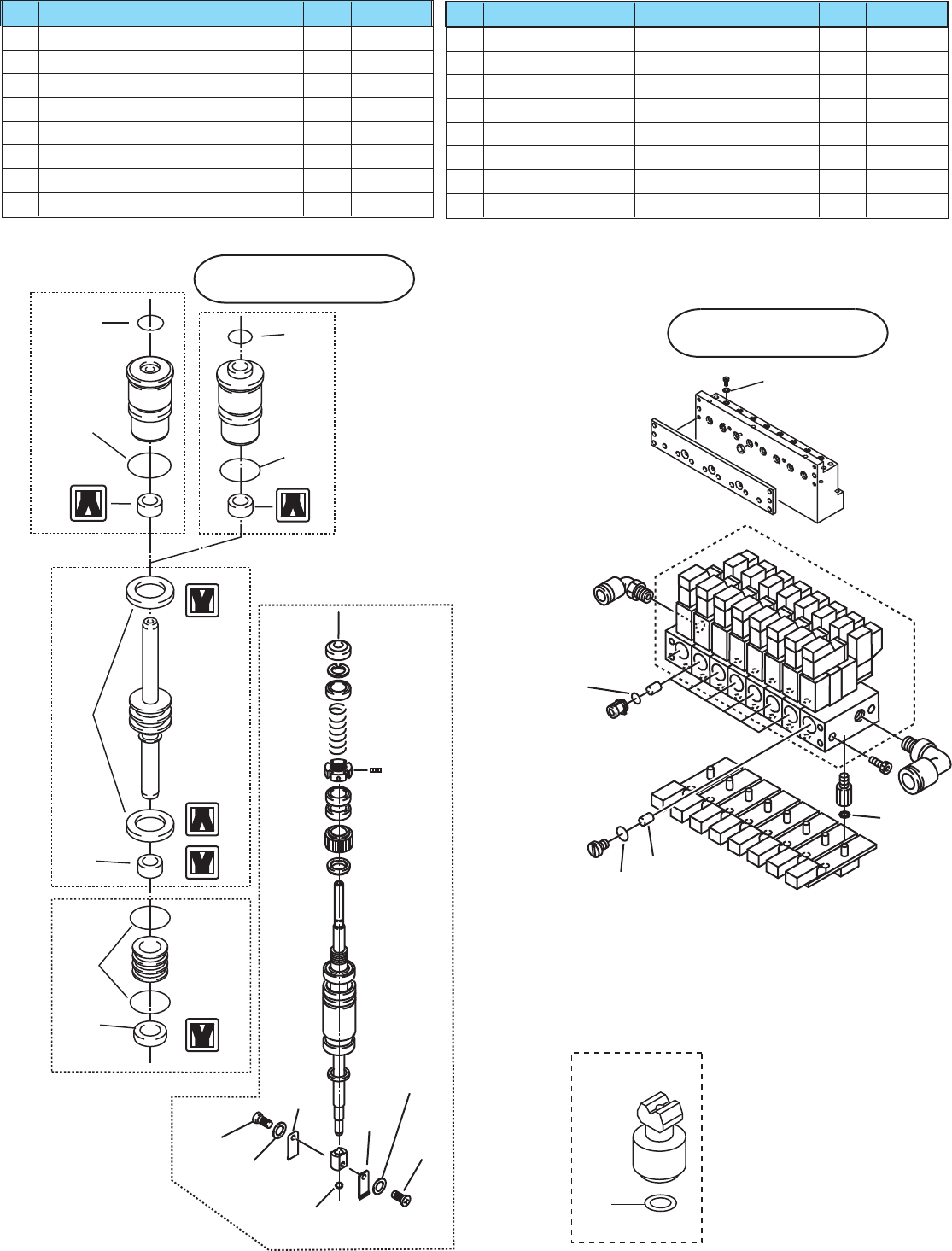

YV100X(XT)-S, YV180X-S : KV8-M715H-50 MAINTE. PARTS SET
Yパッキンの方向に注意
Caution Y-packing direction
No.
1
2
3
4
5
6
7
8
Qty
24
8
16
2
6
4
8
16
Part No.
90200-01J125
90200-10J030
90990-17J007
90990-17J008
90990-17J010
90990-17J081
90990-17J003
90990-22J002
Part Name
O-RING
O-RING
O-RING
O-RING
O-RING
O-RING
O-RING
PACKING
No.
9
10
11
12
13
14
15
Qty
16
8
8
16
8
16
16
NotePart No.
90990-22J003
90990-22J005
90990-22J006
90990-28J002
K46-M8527-C0
KG7-M7137-A0
90990-08J024
Part Name
PACKING
PACKING
PACKING
WASHER PLAIN
FILTER
LEAF SPRING
SCREW,PAN HEAD
10
13
4
5
1
3
9
1
9
8
11
14
14
15
15
12
12
2
Yパッキンの方向に注意
Caution Y-packing direction
1
9
3
Note
7
6
Type74A
CS1102011J/E-001
YAMAHA MOTOR CO.,LTD.IM Operations
MYA-10A
‘2015 Added
