6 The application determines the equipment V ariety of coating applicators We hav e the right equipment for every individual process. Our broad portfolio of paint applicators allows a variety of applications. Both propri…
5

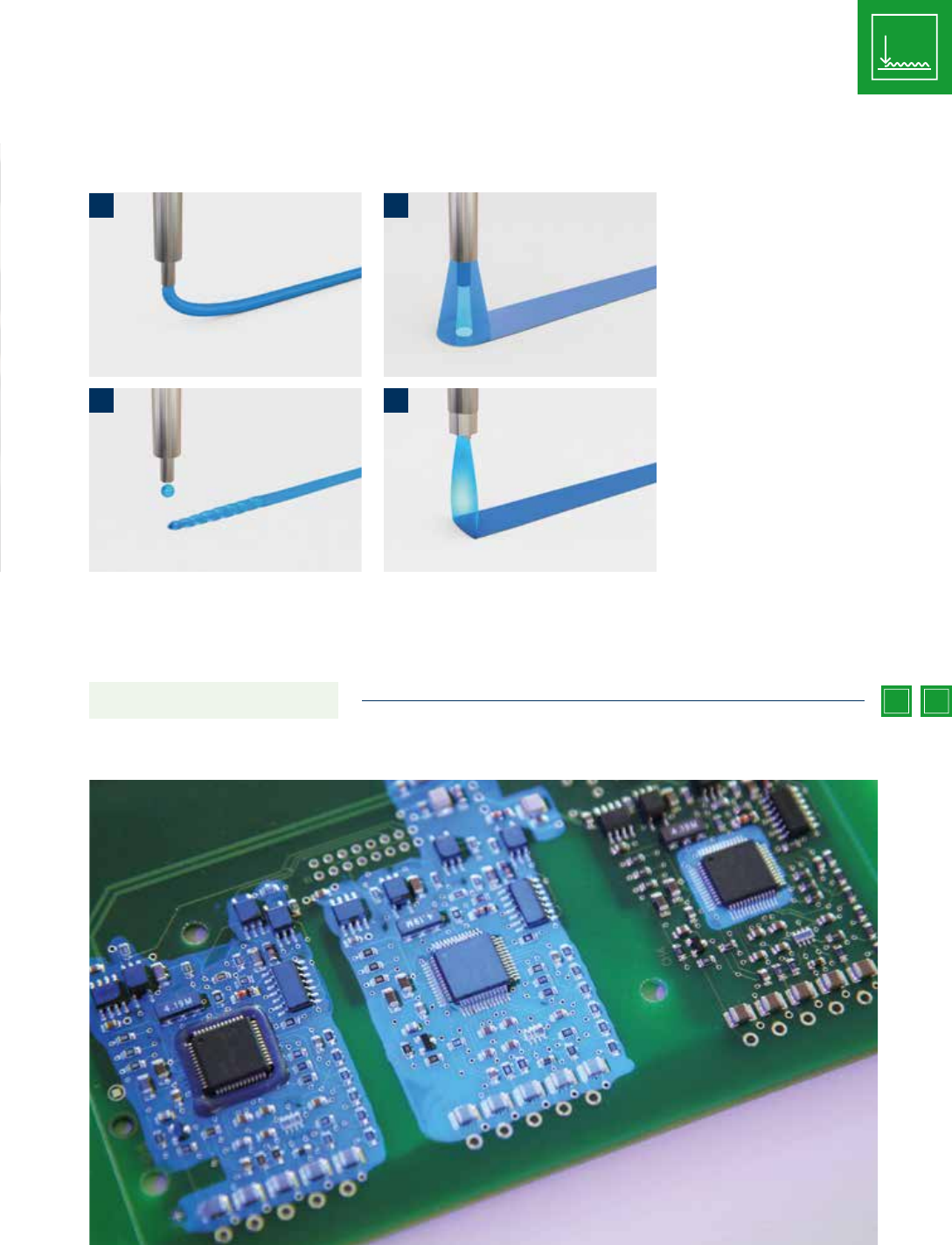

1. Dispensing
Uniform and precise application of a
highly thixotropic material
2. Spraying
Coating of large areas with a low
splatter and mist spraying procedure
3. Jetting
Pinpoint lacquer application of up
to 240 miniature dots per second
through rapid opening and closing
of the valve
4. Curtain Coating
Spraying and fog-free coating of
large surfaces at very high process
speed (only available for ProtectoXP)
1.
3.
2.
4.
Multifunctional system
for perfect application
Protecto systems make precise and homogeneous coating very easy and intuitive to realize. The picture shows the following application proce-
dures under UV light: laying a barrier by dispensing and then jetting with multi-line (left), jetting of large areas without distributor air (middle) and
jetting without distributor air with frame tool for high edge accuracy (right).
XP XC
Optimum coating prole
6
The application determines the equipment
Variety of coating applicators
We have the right equipment for every individual process.
Our broad portfolio of paint applicators allows a variety of
applications. Both proprietary developments come into play
as well as applicators from suppliers who have already es-
tablished themselves in the market. Various options such as
material needles, patented two-material nozzles and material
warmers, are available for the respective applicator. Thus,
the plant equipment can be selected using a wide range of
different accessories that provides the best combination of
cost-effectiveness and process performance.
All technical data is dependent on the application material and does not claim universal applicability. Specic parameters shall only be regarded as binding on
the basis of a material test.
Application process
Track width
Max. component
height
Application speed
Viscosity
Min. dosage
Repeatability
Ø Nozzle
Jetting, Dispens-
ing, Spraying
0,5 – 12 mm
100 mm
10 – 500 mm/s
1 – 10.000 mPas
> 3 nl
> 97 %
2,4 mm
Dispensing,
Spraying
2 –12 mm
100 mm
10 – 500 mm/s
1 – 150.000 mPas
0,002 ml
> 99 %
variable
Curtain Coating
3 – 20 mm
60 mm
200 – 800 mm/s
≤ 100 mPas
–
> 99 %
12 mm
Volumetric dosing
0,25 – 5 mm
variable
10 – 70 mm/s
1 – 500.000 mPas
0,001 ml
> 99 %
variable
Volumetric dosing
1 – 8 mm
variable
10 – 70 mm/s
1 – 500.000 mPas
0,01 ml
> 99 %
variable

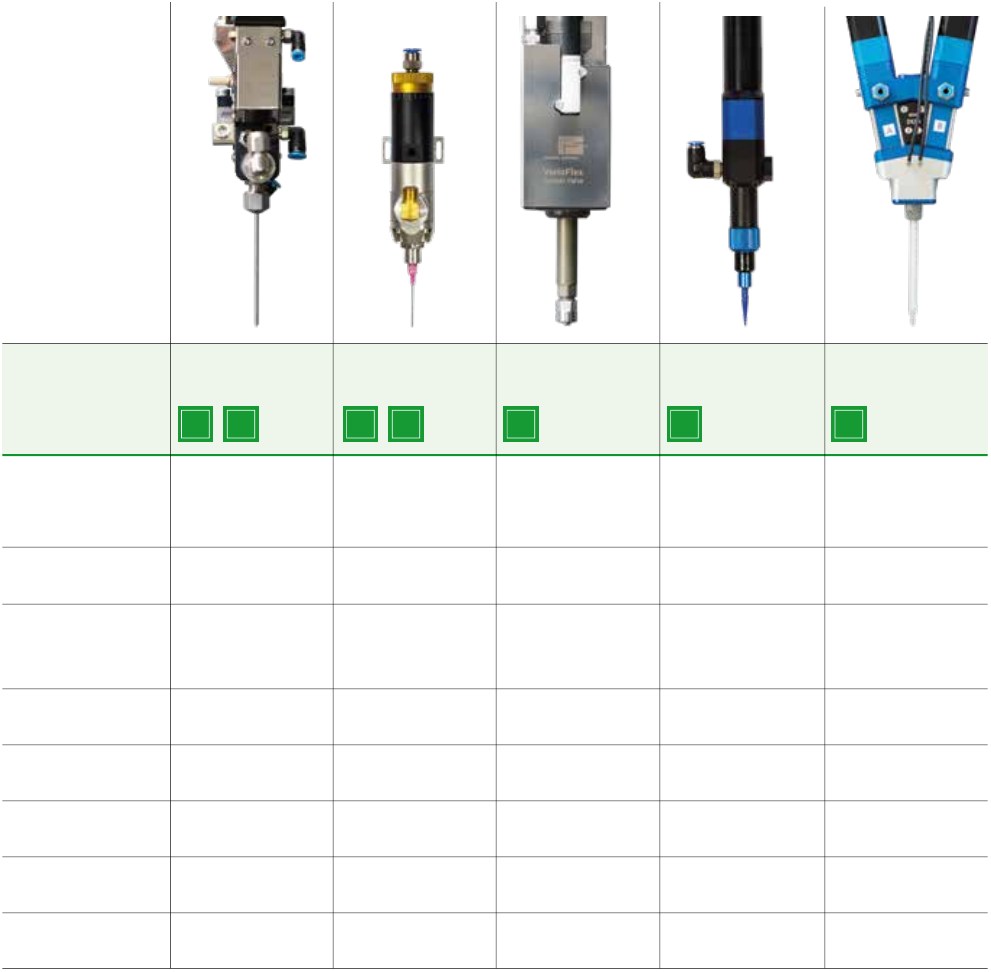

Rehm VarioJet
System
Piston return
valve
Rehm VarioFlex
Curtain Valve
Auger doser 2K System
XP XC XP XP XPXP XC
7
Greatest possible process reliability
with innovative options
When it comes to coating, one thing is essential: precision.
Protecto systems are designed to ensure that the required
volume of coating is always evenly applied, whether
through a pressure valve, a cartridge or a pump from the
original container. Automatic needle measurement checks
the target position of the applicators in freely denable
cycles and if necessary corrects the coating program au-
tomatically. The dispensing of the lacquer is controlled by
the software, which loads the appropriate coating program
with the suitable lacquer and nozzle type. An optional heat-
ed nozzle keeps the protective coating always at a constant
temperature and thus a consistent viscosity regardless of
environmental conditions. A specially developed lacquer
lance with a level indicator prevents bubble formation when
changing the lacquer.
For absolute process reliability Protecto systems are
optionally equipped with a ducial camera. This means the
coating program can be corrected and coated in the correct
positionby registering the marks even if a board is laid into
the flight bar inaccurately. A barcode checks whether the
set coating program is right for the assembly in place. If
there is a deviation the process is automatically blocked.
A high-precision weighing cell is optionally available for the
Protecto systems, which compares the weight of the paint
applied by any given applicator with a previously dened
setpoint value and provides the user with corresponding
feedback in the setup mode as well as cyclically during
series production. As a result, errors in the fluid circuit can
be easily and efciently detected, and eliminated without
delay. The acquisition of weight data, as well as congu-
ration and adjustment, are software controlled and can be
individually adapted.

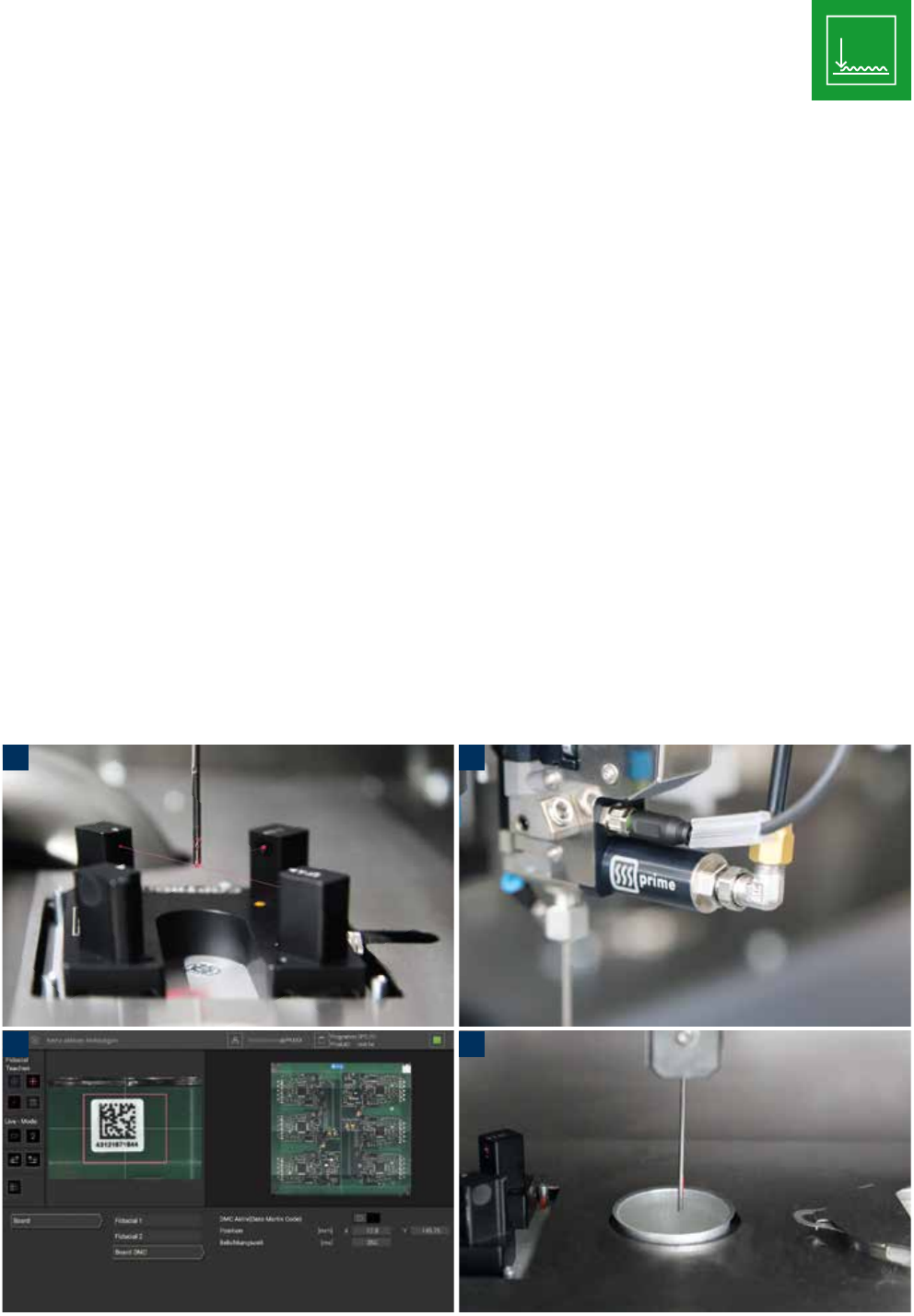

1. Needle measuring cross with auto-correction, 2. Jetter-heating, 3. Fiducial camera (Screen overview), 4. Weighing cell
1.
3.
2.
4.
