TA HMA-Filter Filter Filter (Option) Ta nk A Cleaning Ta nk B Pre-Rinsing Rinsing cycle Cleaning cycle Cleaning System Ta nk C DI / DM Rinsing Fresh / recycled rinse water Usable rinse water Contaminated rinse water Clos…
Main options
□ Automatic detergent concentration measurement / control
□ Automatic re-dosage unit for 25 l detergent and 5 l additive container
□ Carriers for Duplex washing cart
□ Descaling unit to reduce the lime content in the rinsing water
□ Drip & storage reservoir
□ Exhaust unit
□ HMA filter (Heavy Metal Adsober) unit for the cleaning cicuit
□ MB / DI cartridge for deionized (DI) and demineralized (DM) water
□ Paint of choice (frame rack and coverings)
□ Permanent automatic rotor run control
□ PolyPower
®
XL configuration with XL-Power pump unit
□ Remote Control (remote monitoring, mailing, etc.)
□ RMA Remote Maintenance Assistance (factory controlled maintenance support)
□ Sediment filter (tank A)
□ Status light fivefold to display the current process state
□ Traceability "Basic" with SPC data scanner, data backup in CSV file, backup via SD card (via slot in the PLC)
□ Traceability "Comfort" with PLC data scanner and retractable touch monitor and industrial PC with Intel processor
□ XXL-Power pump unit (for tank A), XL-Power (for tank B)
Page 4 of 6
Part number: 0905AQ7XV731
Fully automatic high end 3-tank, 3-circuit PowerSpray
®
XL
ultra-fine cleaning system for DCB and PCB cleaning
03/21
AQUBE
®
XV7
Made in Germany
CLEANING TECHNOLOGY
kolb Cleaning Technology GmbH ▪ Karl-Arnold-Str.12 ▪ D - 47877 Willich ▪ Phone: +49 (0) 2154 9479 - 38 ▪ Fax: +49 (0) 2154 9479 - 47 ▪ e-mail: info@kolb-ct.com ▪ www.kolb-ct.com
All rights for changes reserved that lead to technical improvement. © kolb GmbH 2021

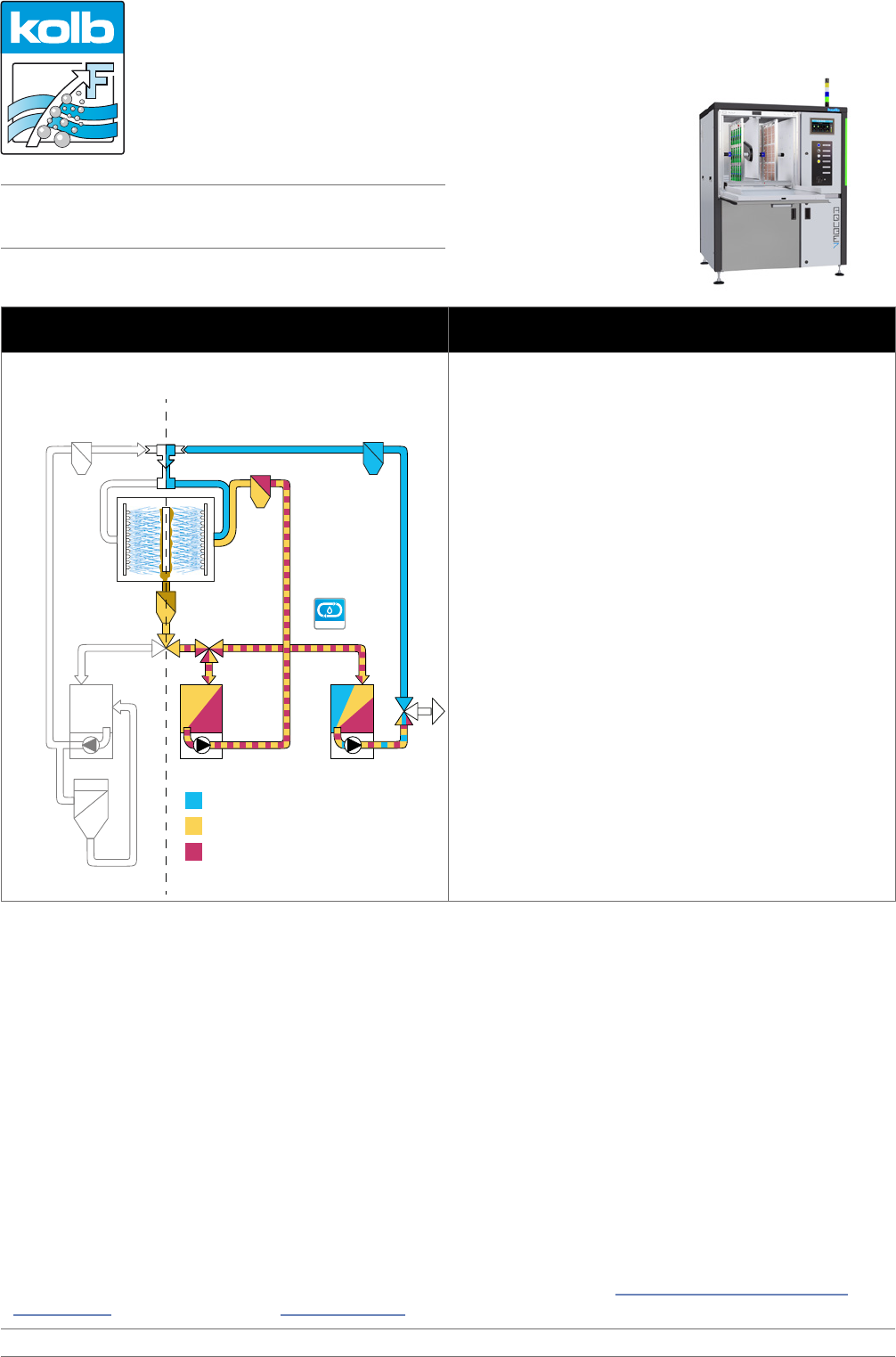

TA
HMA-Filter
Filter
Filter
(Option)
Tank A
Cleaning
Tank B
Pre-Rinsing
Rinsing cycleCleaning cycle
Cleaning System
Tank C
DI / DM
Rinsing
Fresh / recycled rinse water
Usable rinse water
Contaminated rinse water
ClosedLoop
ClosedLoop
TB
TC
Filter
Filter
Filter
Page 5 of 6
03/21
Part number: 0905AQ7XV731
Fully automatic high end 3-tank, 3-circuit PowerSpray
®
XL
ultra-fine cleaning system for DCB and PCB cleaning
AQUBE
®
XV7
Internal rinse water processing (standard) Options* for water management
WPSD IU SYMBIO-module
Processes mandatory disposable sewage water to be
discharged into a public sewage network.
WPCL IUT3 SYMBIO-module
Recycles DI / DM water for recirculation and multiple reuse in
the cleaning systems clear rinsing cycle.
* Operating companies of industrial cleaning systems are responsible for proper disposal of wastewater / rinse water
and (wasted) cleaning detergent. Further information on wastewater management at www.kolb-ct.com/systems/water-
management/, consulting requests to info@kolb-ct.com
Made in Germany
CLEANING TECHNOLOGY
kolb Cleaning Technology GmbH ▪ Karl-Arnold-Str.12 ▪ D - 47877 Willich ▪ Phone: +49 (0) 2154 9479 - 38 ▪ Fax: +49 (0) 2154 9479 - 47 ▪ e-mail: info@kolb-ct.com ▪ www.kolb-ct.com
All rights for changes reserved that lead to technical improvement. © kolb GmbH 2021

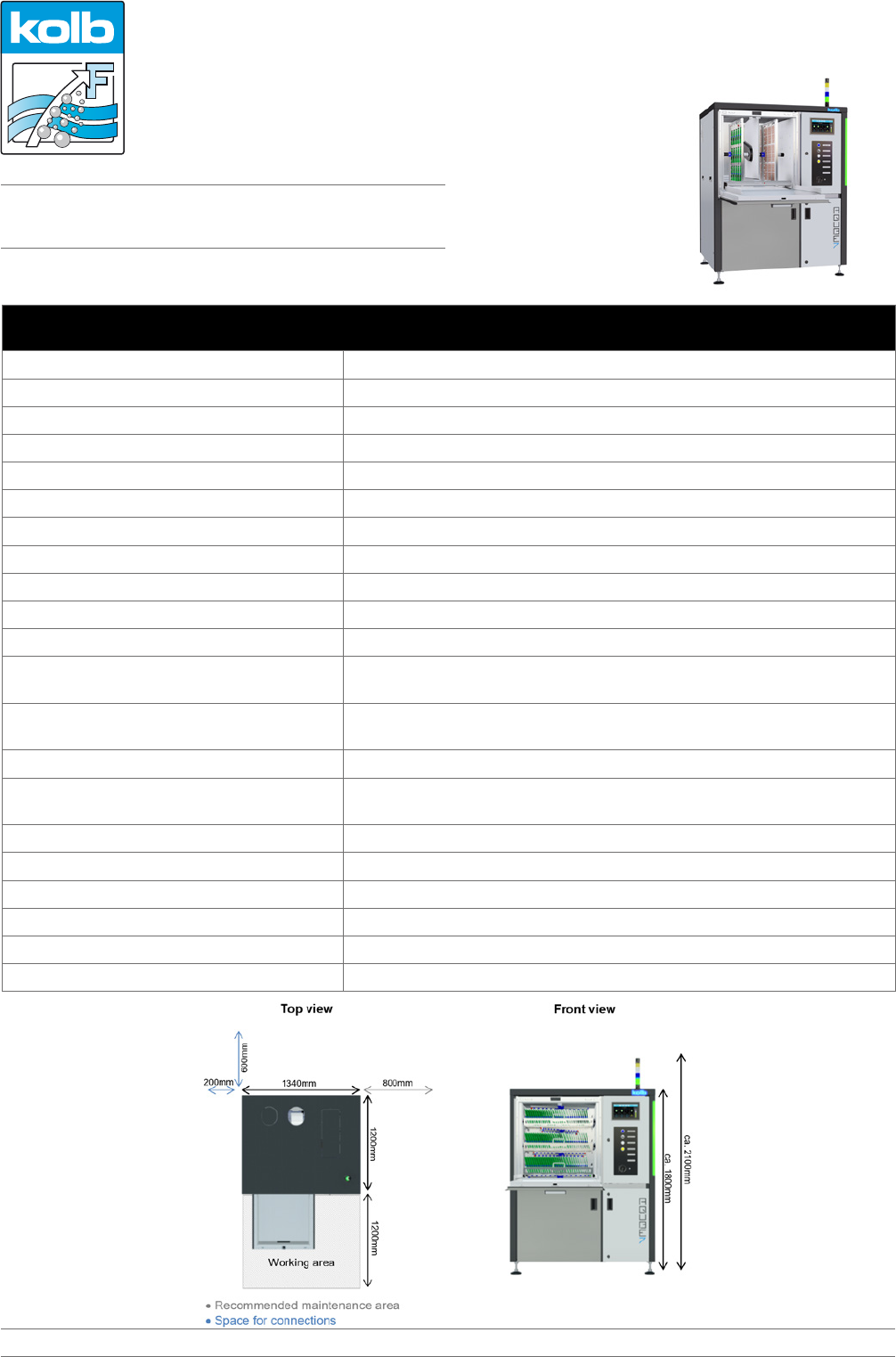

Technical data
Technology base kolb PowerSpray
®
Capacity 24 DCB panels 5“ x 7“ or 36 eurocards
Process chamber dimensions W 700 ▪ D 720 ▪ H 710 mm (W 27.55" ▪ D 28.34" ▪ H 27.95")
Usable chamber dimensions 2 slots: B 50 ▪ T 620 ▪ H 620 mm (W 1.97" ▪ D 24.41" ▪ H 24.41")
Volume tank A (cleaning) 55 l
Volume tank B (rinsing) 45 l
Volume tank C (DI-rinsing) 85 l
Power supply 400 V AC, 16 A, CEE plug / 3 Ph / 50 or 60 Hz
Power consumption 4 kW
Control system PLC (EATON)
Temperature load up to 55 °C (131 °F)
Filter system
up to four stages - 1. Full flow coarse filter < 2mm (0.08"), 2. Sediment filter
inside the tank, 3. 20“ fine filter (1 - 100 µm - process dependent), 4. HMA filter
Supply connection 1 (tap water)
connection for 1/2" hose, with 30µm water filter (inlet water
quality: < 350 μS conductance value (< 10° dH) or option descaling unit)
Supply connection 2 (DI / DM water) connection for 1/2" hose, (DI-net provided or bridging to tap water)
Supply connection 3 (compressed air)
6 - 8 bar (87 - 116 psi) - 100 l / min for options HT-version or MediumWipe
®
,
connection for 8 mm (0.31") compressed air hose
Rinse water drain connection (with integrated pump out system) connection for 1" hose
Exhaust connection Ø 160 mm (6.3"), exhaust capacity 200 - 300 m
3
/ h (7,063 - 10,595 ft
3
/ h)
Operating condition room temperature 20 - 35 °C (68 - 95 °F)
Operating noise 74 dB (A)
Foot print 1,200 x 1,340 mm (47.24" x 52.75")
Empty weight 530 kg / 1,169 lbs
