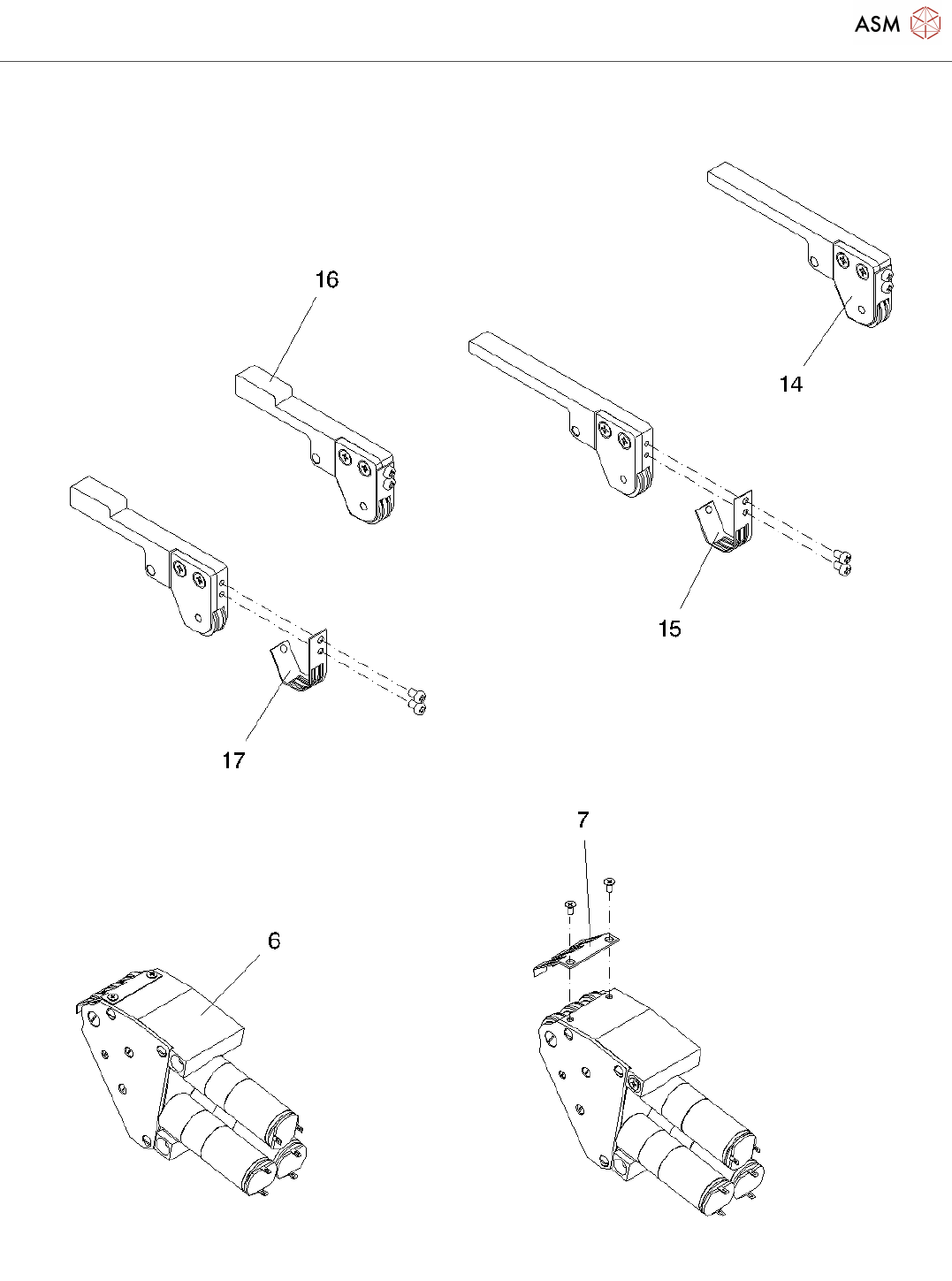

Tape feeder module 3x8mm S for 01005 Page 5 / 9 19.11.2021
Tape feeder module 3x8mm S for 01005
Page 4 / 9 19.11.2021
Tape feeder module 3x8mm S for 01005
Page 5 / 9 19.11.2021
Tape feeder module 3x8mm S for 01005
Page 6 / 9 19.11.2021
Pos. Item no. Description Part marking
1 00176100-01 TAPE FEEDER 3X8MM S-TAPE 01005
COMPONENTS
03054961-01 TAPE FEEDER 3X8MM S-TAPE 01005
COMPONENTS
2 03058049S01 DRIVE ASSY, 01005
00344044-03 BASE UNIT, COMPLETE
03057943-01 TAPE CHANNEL, TOP, COMPLETE
FOR 01005

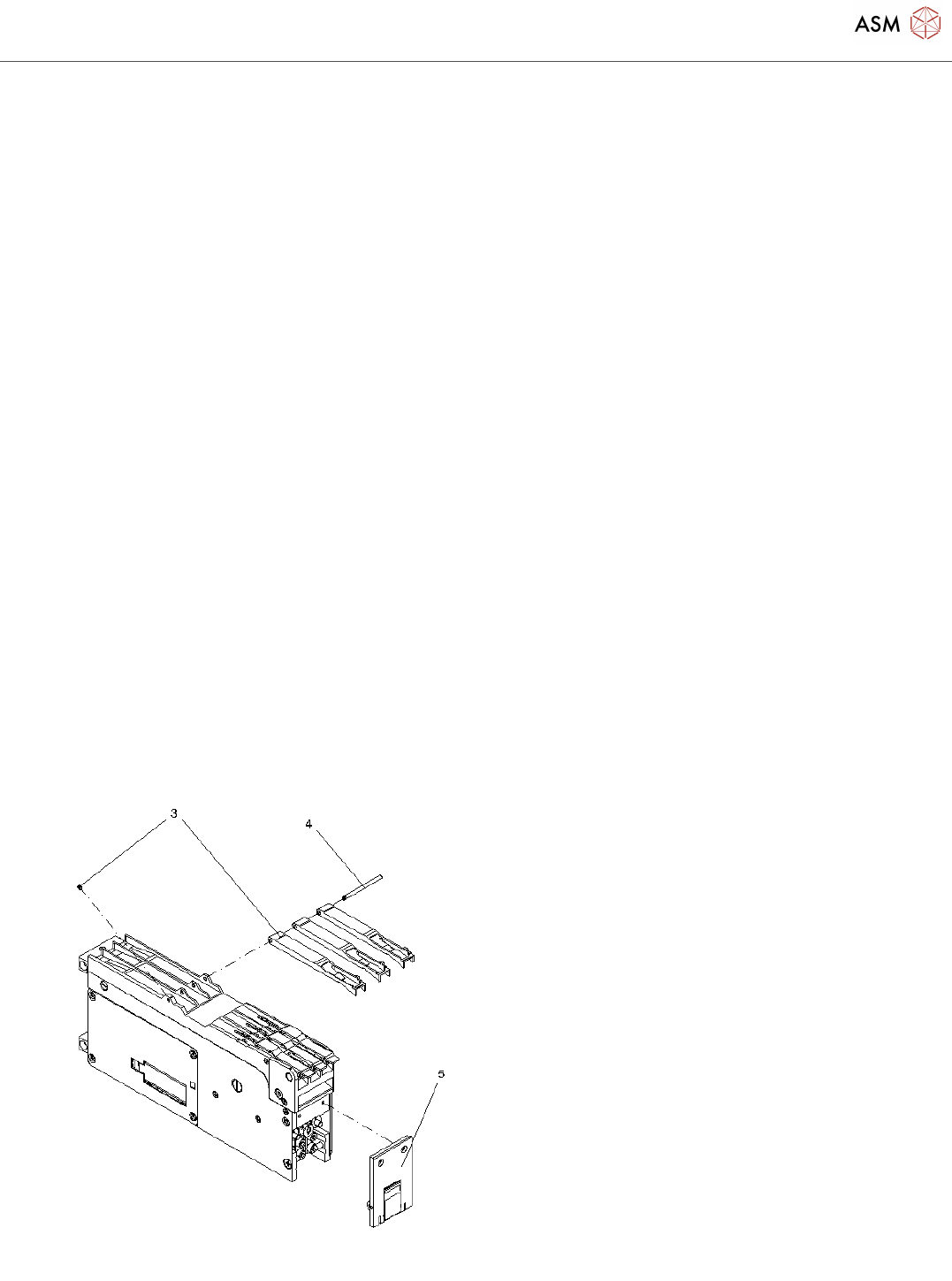

3 03057953S02 PICK-UP WINDOW 01005 SPARE PART
03056790-01 TAPE CHANNEL, TOP, FOR 01005
00354224S01 FLAPS ASSY 0201 SPARE PART
4 00344108S01 WINDOW AXIS SPARE PART
00349254S02 FITTING SCREW SPARE PART
5 00345830S02 PROTECTION COVER, FRONT, ASSY SPARE PART
00344048S02 TRANSPORT WHEEL BEARING UNIT SPARE PART
03053159-02 BEARING SCREW SPARE PART
00344019-02 BEARING SUPPORT WALL SPARE PART
00349259-02 SHEET METAL COVER FOR DRIVE SPARE PART
00349260-02 SHEET METAL COVER FOR DRIVE,
RIGHT
SPARE PART
00349254S02 FITTING SCREW SPARE PART
00348971-02 WORM WHEEL SEAL, LEFT, ASSY SPARE PART
00348972-02 WORM WHEEL SEAL, MIDDLE, ASSY SPARE PART
00348973-01 WORM WHEEL SEAL, RIGHT, ASSY SPARE PART
00348974-02 WORM SEAL LEFT, MIDDLE SPARE PART
00348975-02 WORM SEAL, MIDDLE, ASSY SPARE PART
00348976-01 WORM SEAL, RIGHT, ASSY SPARE PART
00348732-01 HOLDDOWN SCREW SPARE PART
00348621-01 JOURNAL SPARE PART
00349526-01 PT COUNTERSUNK SCREW 3X8 STANDARD PARTS
00366767-01 SEALING F. LIFTING MAGNET
6 00343831S03 COVER STRIP STUFFING GEAR SPARE PART
00343846-01 FOIL DISPOSAL MOTOR MOUNT,
COMPLETE
00354737S02 STUFFING WHEEL WITH
FREEWHEEL, RIGHT
SPARE PART
00354738S02 STUFFING WHEEL WITH SPARE PART
