Designed for exibility, Low cost of ownership and
High rst pass yield
Main benets:
Feeding exibility
Up to 129 tape feeders per module
Supports tape, tray, stick and tubes
Easy swtiching between feeding types
Ease of Use
Feeder anywhere
Intuitive operator guidance
Automatic feeder pitch adjustment
Industry 4.0 ready
IPC-Hermes-9852
IPC-CFX
SECS/GEM
CAMX
Component handling exibility
Full range of nozzles and grippers
Placement forces from 1.5 N up to 80 N
Lowest cost of ownership
Annual maintenaince < 35 hours
Less spare parts due to common hardware
Up to 5 times less air and energy consumption
Small footprint

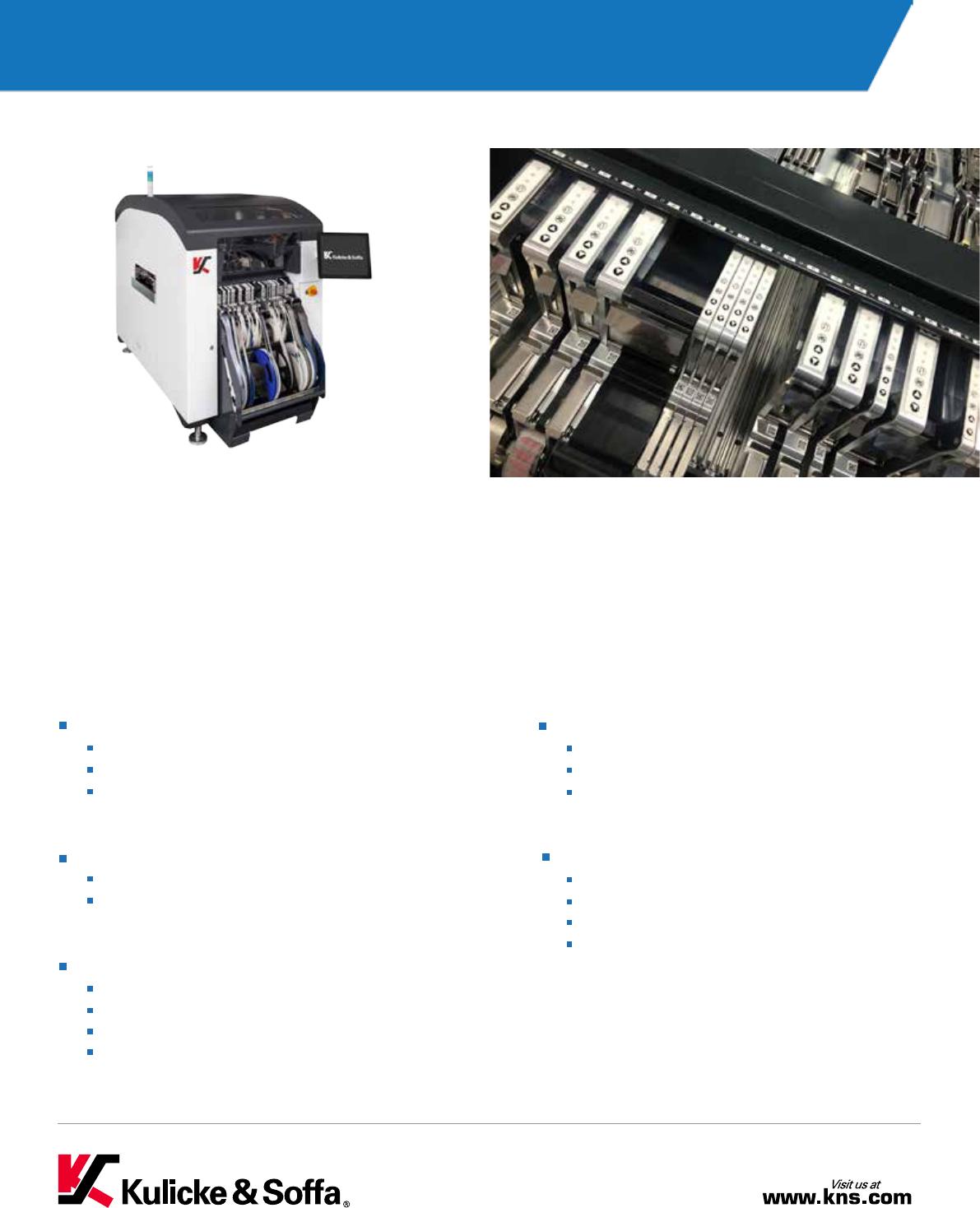

iFlex
INDUSTRY’S MOST FLEXIBLE ONE-MACHINE CONCEPT
SPECIFICATIONS
Maximum output per hour
Maximum output
IPC9850/IPC9850A
Placement accuracy @ Cpk>1
Min. component size
Max. component size
Max. component height
Programmable placement force
(in steps of 0.1 N)
Min. board size:
Max. board size:
- Single lane
- Dual lane
Max. tape feeding lanes (8 mm)
- SF feeders
Feeding options
Pick tools
Footprint (L x W)
(incl. SF trolleys)
iFlex T4
70k cph
51k cph
35 mm for Passives
0.4x 0.2 mm (01005)
17.5 x 17.5 mm
15 mm
1.5 - 8 N
50 x 50 mm
845 x 558 mm
845 x 254 mm
124
Tape, stick
Nozzles
1,170 x 2,372 mm
iFlex T2
35k cph
24.3k cph
35 mm for Passives
25 mm for QFP/BGA
0.4 x 0.2 mm (01005)
45 x 45 mm
21 mm
1.5 - 8 N
50 x 50 mm
845 x 558 mm
845 x 254 mm
124
Tape, stick, tray, tubes
Nozzles, grippers
1,170 x 2,372 mm
iFlex H1 / HTC
9k cph
7.5k cph
35 mm for Passives
20 mm for QFP/BGA
0.6 x 0.3 mm (0201)
120 x 52 mm
25 mm / 50 mm
4 - 40 N / 4 - 80 N
50 x 50 mm
845 x 558 mm
845 x 254 mm
129
Tape, stick, tray, tubes
Nozzles, grippers
1,170 x 2,372 mm
Please contact your sales representative for a quotation.
