10. Location of Sensors and Loads

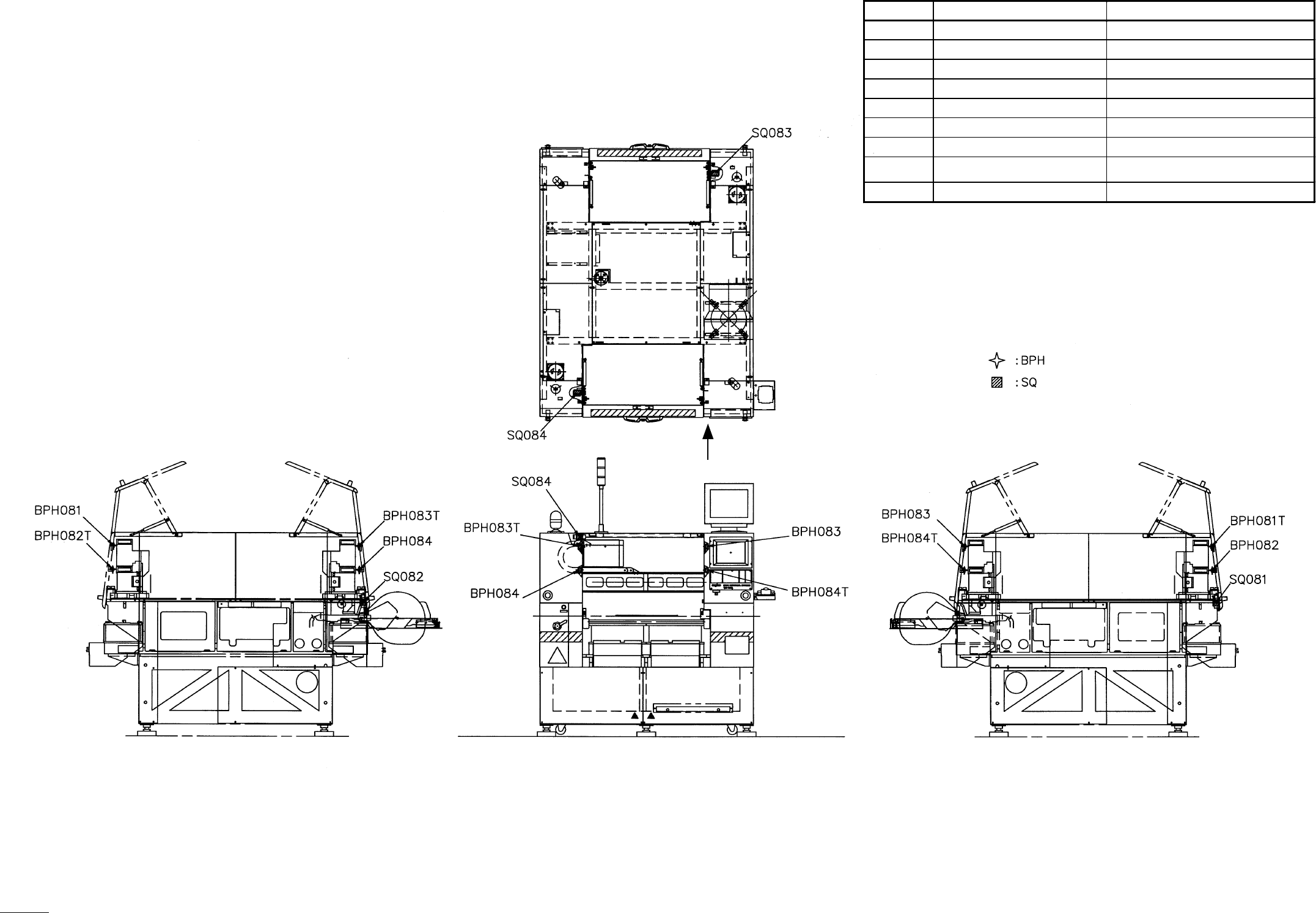

Layout of Sensors and Loads in Cover Section
10. Location of Sensors and Loads
Layout of Sensors and Loads in Cover Section
0304-004 ACH01EMTP10-1 10-1
(Light Projecting Side)
(Light Receiving Side)
(Light Receiving Side)
(Light Receiving Side)
(Light Receiving Side)
(Light Receiving Side)
(Light Receiving Side)
(Light Projecting Side)
(Light Projecting Side)
(Light Projecting Side)
(Light Projecting Side)
(Light Projecting Side)
Beam B Side
(View A)
Note:
Symbol Name Status
BPH081 Maintenance Opening Detection A Detection at E/NR (Light Emitted and Not Received)
BPH082 Maintenance Opening Detection A Detection at E/NR (Light Emitted and Not Received)
BPH083 Maintenance Opening Detection B Detection at E/NR (Light Emitted and Not Received)
BPH084 Maintenance Opening Detection B Detection at E/NR (Light Emitted and Not Received)
SQ081 Supply Cover Electromagnetic Lock A ON when locked
SQ082 Supply Cover Electromagnetic Lock B ON when locked
SQ083 Maintenance Cover A
Unlocked at Set-Up Operation (Other than Com-
ponent Shortage)
SQ084 Maintenance Cover B ON when closed
Beam B Side
A
Beam A Side
