Micr o-dispensing for high-pr ecision applications Optimum SmoothFlow Pr ecision Nozzles Nordson EFD’s Optimum ® SmoothFlow ™ stainless steel precision nozzles are ideal for uid dispensing applications in the compact ca…
Micro-dispensing for high-precision applications
Optimum SmoothFlow Precision Nozzles
Nordson EFD’s Optimum
®
SmoothFlow
™
stainless
steel precision nozzles are ideal for uid dispensing
applications in the compact camera module (CCM),
LED, semiconductor, automotive electronics, and
high-precision industrial markets.
Machined for tight tolerances, the reusable
precision nozzles offer orice sizes from 100 to
500 μm for micro-deposit dispensing. For even ner
deposit sizes, the Optimum Ceramic MicroDot
™
tip
features a 50 μm orice diameter.
In addition, EFD precision nozzles can be
customized for your application with options such
as side nozzles, long-tapered nozzles, and shower
nozzles.
A special nozzle-stabilizing xture is available for
automated dispensing using a syringe and air-
powered dispenser. This xture holds the nozzle
in place, keeping it in a stable position so the
dispensing height is constant for barrel changeout.
Features
• Precision-machined 303 stainless steel
• Tapered nozzle design
• Range of orice diameters and nozzles from
100 to 500 μm
Benefits
• Tapered SmoothFlow nozzle design eliminates
clogging and allows optimal ow for consistent
uid deposits
• Reusable nozzles reduce changeover time on
production line as well as consumables
• Nozzles deliver precise deposit control in
complex applications, such as LED potting,
underlls, ne-line bonding, edge sealing, and
more

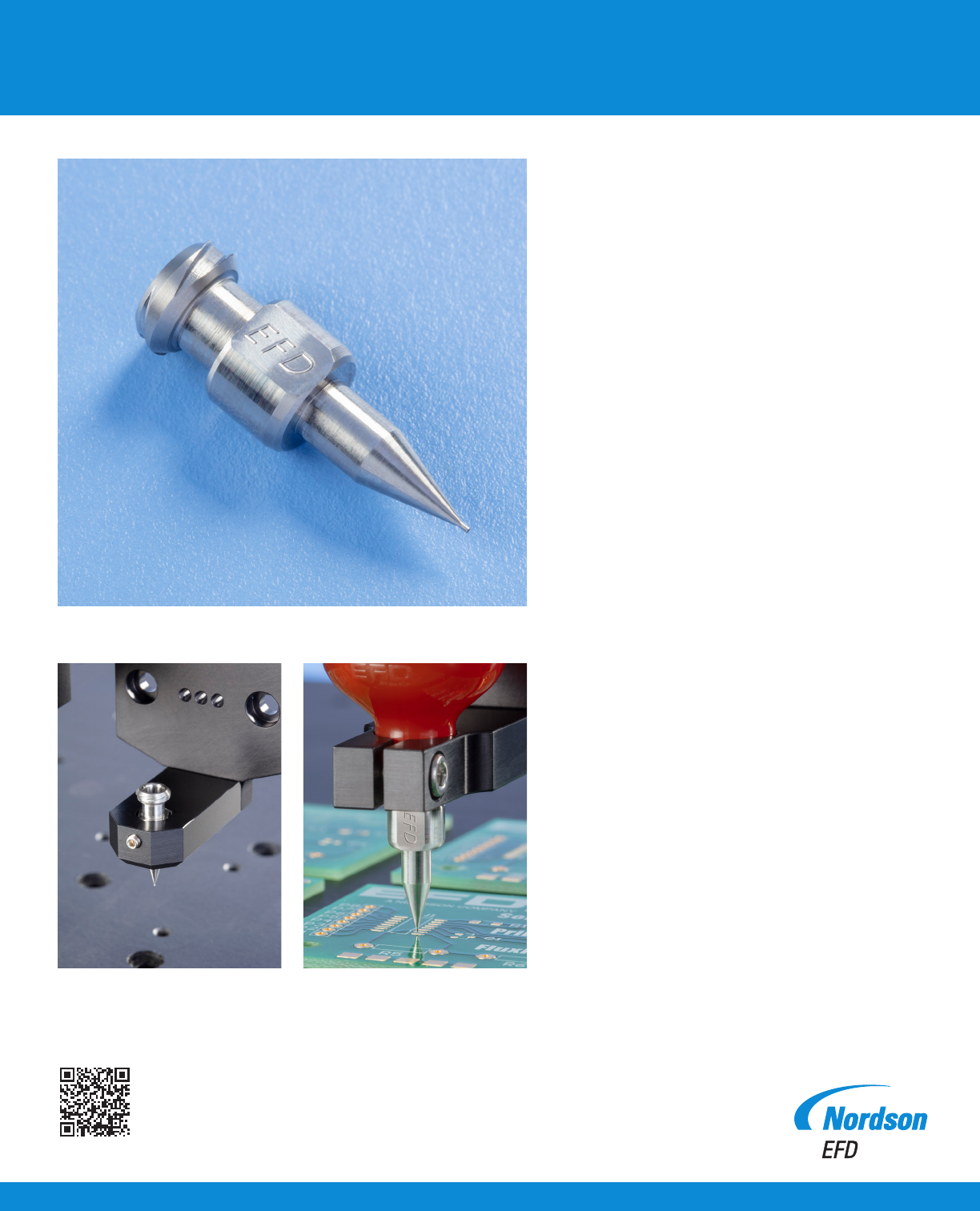

Optimum SmoothFlow stainless steel precision nozzles offer orifice sizes from 100 to 500 μm.
Nozzle-stabilizing fixture holds nozzle in
a secured position.
Micro-dispensing PCB application.
more info
Part #
Gauge Description
ID
mm / in
Qty: 1 pc Qty: 10 / box
7365112 7365121 21 500 μm stainless steel precision nozzle 0.50 / 0.020
7365108 7365117 24 300 μm stainless steel precision nozzle 0.30 / 0.012
7365106 — 27 200 μm stainless steel precision nozzle 0.20 / 0.008
7365104 7365113 32 100 μm stainless steel precision nozzle 0.10 / 0.004
7364386 — 37
50 μm ceramic tip with stainless steel hub,
for use with luer lock connections
0.05 / 0.002
7365324 — — Optimum nozzle stabilizing xture —
7365269 — — Precision nozzle retaining nut for use with trad valves —
7365270 — — Precision nozzle retaining nut for use with auger valves —
7366501 — —
Robot accessory, brackets for PICO
Pµlse
valves,
syringe barrels, traditional valves
—
For Nordson EFD sales and service in over
40 countries, contact Nordson EFD or go to
www.nordsonefd.com.
Global
800-556-3484; +1-401-431-7000
info@nordsonefd.com
Europe
00800 7001 7001
infoefd.europe@nordsonefd.com
Asia
China: +86 (21) 3866 9006; china@nordsonefd.com
India: +91 80 4021 3600; india@nordsonefd.com
Japan: +81 3 5762 2760; japan@nordsonefd.com
Korea: +82-31-736-8321; korea@nordsonefd.com
SEAsia: +65 6796 9522; sin-mal@nordsonefd.com
©2024 Nordson Corporation v060424

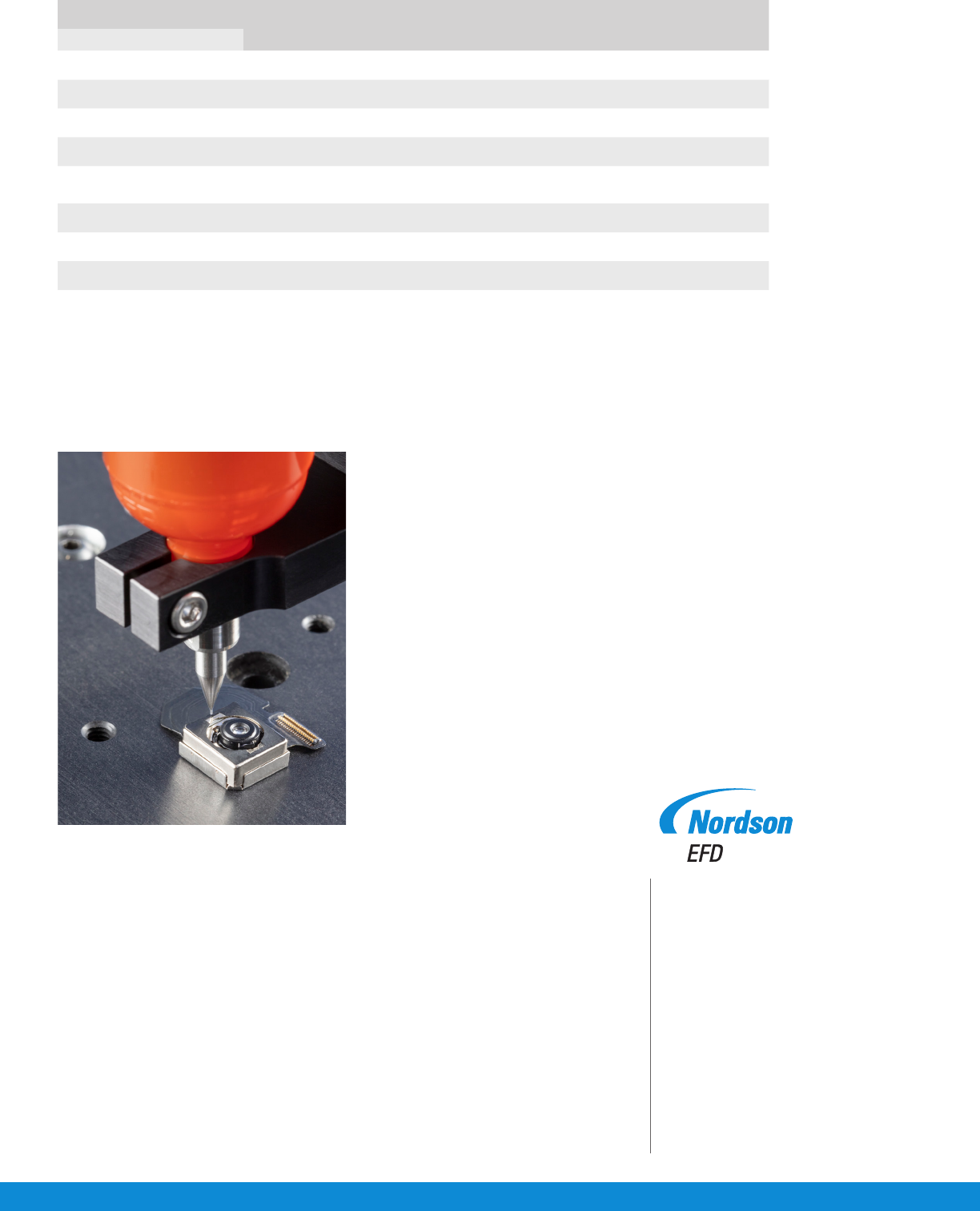

Micro-deposit dispensing onto a compact camera module.
Needs syringe barrel brackets from kit P/N 7366501.
Compatible with 702, 741MD, 752HF, 754V aseptic valves, and xQR41V.
Compatible with xed head auger valves only
Precision nozzles can be used without a retaining nut on 725D/DA, 741V, and 752V valves, or on a syringe.
2
3
1
1
2
3
