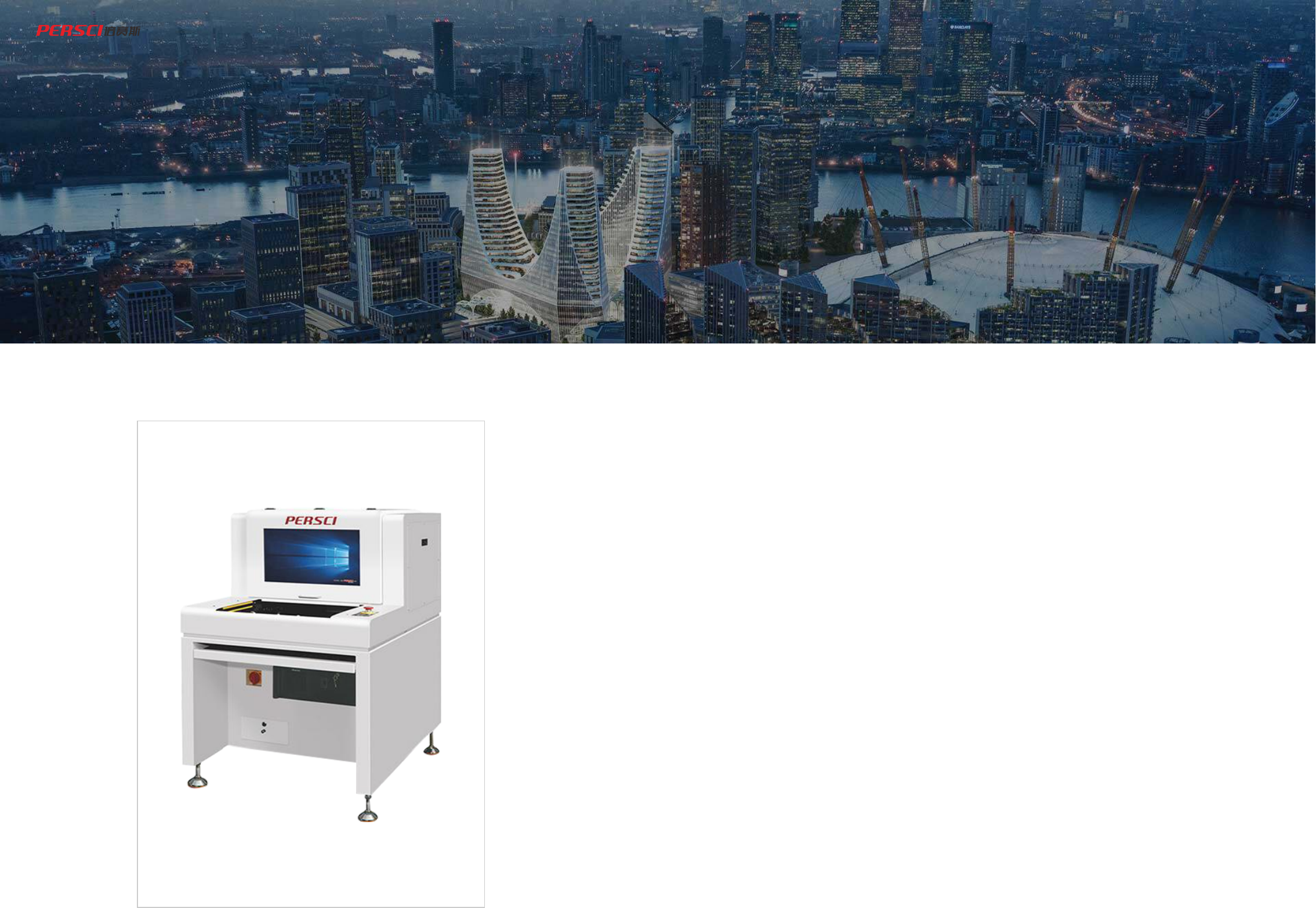

M3-H High Component Offline AOI
Classification:SMT Inspection Solutions
Scope of application: suitable for offline inspection after reflow soldering and wave
soldering
Detection content: offset, less tin, short circuit, missing parts, skewed, monument,
side stand, flip parts, wrong parts, broken, polarity, false soldering, empty soldering,
overflowing glue, tin holes, pins are not out of the appearance of the bad
CN
MH3 high component offline AOI: H is the abbreviation of High, meaning high, here refers to
high component AOI, 3 refers to the third generation software, also refers to the third generation AOI
Parameter PRODUCT PARAMETERS
model
M3-H M3-H600
Application scope Suitable for offline inspection after reflow soldering and wave soldering
Software part
operating system Windows7, Windows10
Software version V3.0
software algorithm
OCV algorithm, OCR algorithm, TOC algorithm, Histogram algorithm, Match
algorithm, Short algorithm, Other algorithm, PIN algorithm, Length algorithm, Hole
algorithm, CREST algorithm, Pole algorithm, Offset algorithm, Compare algorithm,
Padplace algorithm and other algorithms, system Automatically set parameters
according to different detection points
programming mode
Manual writing, automatic frame, CAD data import, component library import;
(chargeable options: offline programming, remote programming)
Hardware parts Machine size 870*1060*1320mm（L＊W＊H） 1000*1425*1320mm（L＊W＊H）
5 million pixel camera
Standard: 15μm/Pixel FOV: 36mmx30mm Detection speed <200ms/FOV
Optional: 20μm/Pixel FOV: 48mmx40mm Detection speed <200ms/FOV
Optional: 10μm/Pixel FOV: 24mmx20mm Detection speed <200ms/FOV
light source High-brightness RRGB coaxial ring-shaped tower LED light source (color light)
Conveyor system
The double-sided clamp automatically opens and closes, and automatically
compensates for PCB bending deformation.
Conveyor height above
ground
850 to 920mm
Conveyor flow direction PCB/FPC moves in Y direction
platform marble platform
X/Y platform driver Screw and AC servo motor drive, PCB fixed, Camera moves in X direction
power supply AC220V 50/60Hz less than 0.5KVA
air pressure unnecessary
Operating environment
temperature and
humidity
10-35℃ 35-80% RH (no condensation)
Functional part
Test content
Defects in appearance such as offset, less tin, short circuit, missing parts, skew,
tombstone, side-standing, flipped parts, wrong parts, damage, polarity, empty
soldering, empty soldering, glue overflow, tin holes, pins not coming out, etc.
PCB/FPC size range 50*50mm (min) ~ 430*330mm (max) 50*50mm (min) ~ 500*600mm (max)
PCB/FPC thickness range 0.3 to 5mm
PCB/FPC clamping
system edge clearance
TOP: 3.5mm Bottom: 3.5mm
Greater PCBA/FPCA
weight
3KG (overweight can be customized)
PCB/FPC curvature <5mm or 2% of PCB diagonal length
PCB/FPC upper and
lower clear height
PCB/FPC top side: customized height PCB/FPC bottom side: customized height
smallest component 10μm; 01005chip & 0.3 pitch IC
Barcode function Automatic barcode recognition (1D or 2D code)
Special features
Supports automatic program retrieval, multi-board multi-program detection function,
front and back program detection function; can check 0-359° rotating parts (unit is
1°).
