Page SAMSUNG TECHWIN 77 SM471 F ixed ANC Ass’y NO. Lev . P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 AM03-001510A ANC_A SSY J9056100 1A 1 2 J71561004 A ANC_SUPPOR T J71561004A 1 3 J7156043B SHUTT…
Page
SAMSUNG TECHWIN
76
SM471

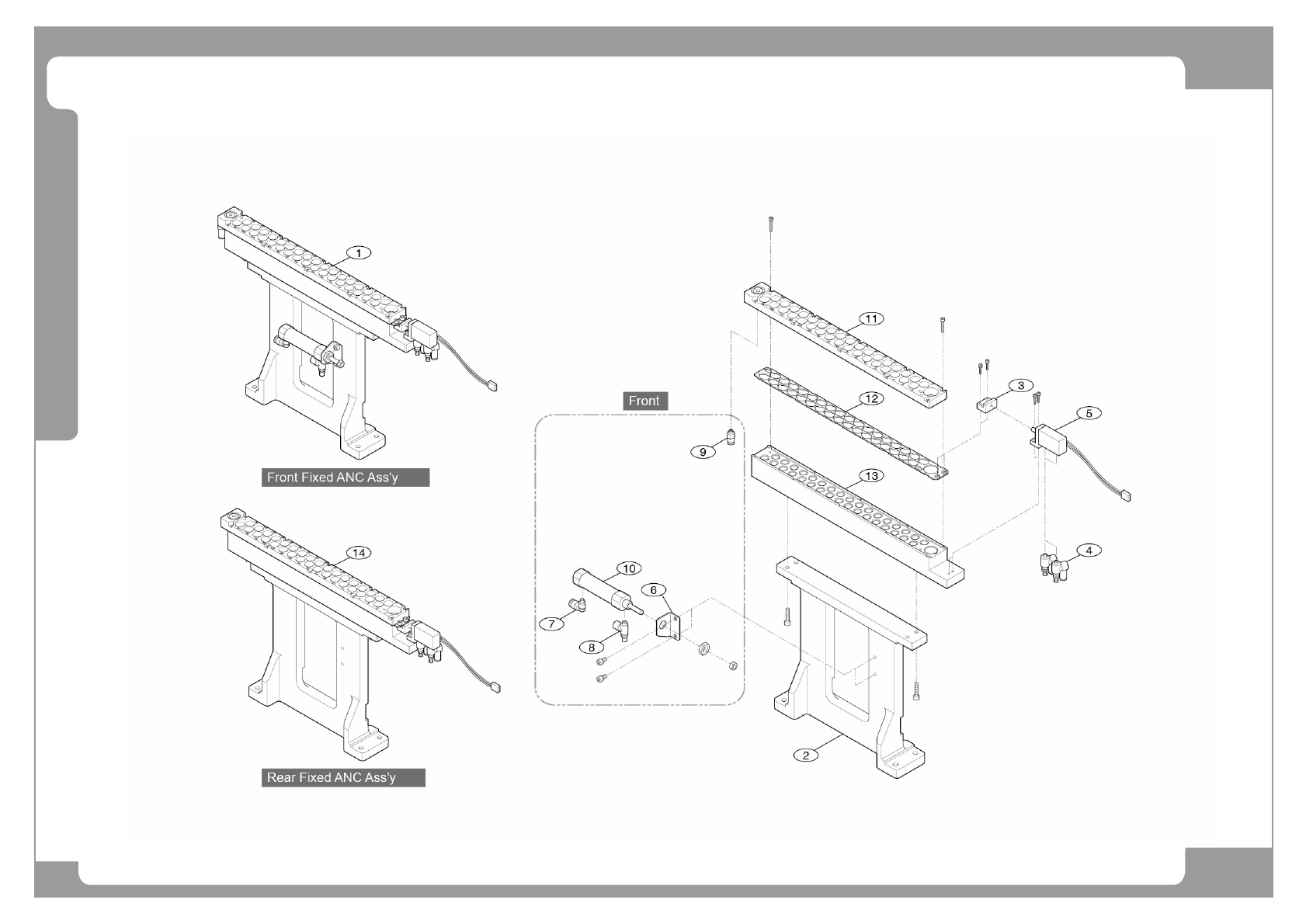

Fixed ANC Ass’y
Page
SAMSUNG TECHWIN
77
SM471
Fixed ANC Ass’y
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-001510A ANC_ASSY J90561001A 1
2 J71561004A ANC_SUPPORT J71561004A 1
3 J7156043B SHUTTER BRACKET[J7156043B] 1
4 J6703028A SPEED CONTROLLER [SS4-M5MA] 2
5 J6701029A AIR CYLINDER [BDAS6*5-1A-ZC153A2] 1
6 J70561001A CYLINDER_BRACKET J70561001A 1
7 J1301188 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 1
8 J6703031A SPEED CONTROLLER[AS1211F-M5-04] 1
9 J6711147A STRAIGHT FITTING KQ2H04-M5 1
10 J67011016B AIR_CYLINDER 1
11 FC30-000241A ANC_PLATE_1 1
12 FC30-000242A ANC_NOZZLE_SHUTTER 1
13 FC03-000014A ANC_MAIN_BODY 1
14 AM03-001511A ANC_ASSY_REAR J90561002A 1
Page
SAMSUNG TECHWIN
78
SM471
Cover Ass’y (1/3)
6
33
24
30
21
23
25
4
31
29
18
15
D
17
22
1
2
28
3
10
12
27
7
14
19
20
13
16
9
32
11
8
26
A
5
B
C
E
A
A
A
34
