Product Data Sheet TS5623 Series Handheld Diaphragm Valves KEY FEATURES AND BENEFITS TS5623 Series Hand Held Diaph ragm Valve s are designed to dispense low to medium viscosity material where a controll ed timed shot is …
Product Data Sheet
TS5623 Series
Handheld Diaphragm Valves
KEY FEATURES AND BENEFITS
TS5623 Series Hand Held Diaphragm Valves are designed to
dispense low to medium viscosity material where a controlled
timed shot is not required. The fluid housing and diaphragm are
available in FDA-compliant Ultra High Molecular Weight
Polyethylene (UHMWPE) for most applications. A Teflon®
version for chemical compatibility and a Delrin® version for UV-
curables are also available. The valves are easy to use and
maintenance is simplified with user replaceable spare parts.
The seal-less valve design features excellent moisture sensitive
resistance and the incorporated diaphragm creates a barrier
between the wetted parts and the rear cylinder.
The hand held valve does not require a controller for activation,
as the valve is actuated by the use of a mechanical hand lever.
These valves are designed for the operator to manually
dispense low to medium viscosity fluids, such as
Cyanoacrylates, Anaerobics and solvents.
Long cycle life
Compact size and weight
Excellent moisture sensitive resistance
Choice of body for chemical compatibility
Convenient hanger
TYPICAL APPLICATIONS
Dispensing Anaerobic thread locker onto screw threads
Dispensing Cyanoacrylate in bonding applications
Applying adhesive for speaker bonding
USA & Canada +1 714 230 2398 Europe +44 2380 489 100 Asia +86 21 64952662 www.techconsystems.com
The valve is shipped with the following items:
Luer lock fluid line
Dispensing tip selection pack

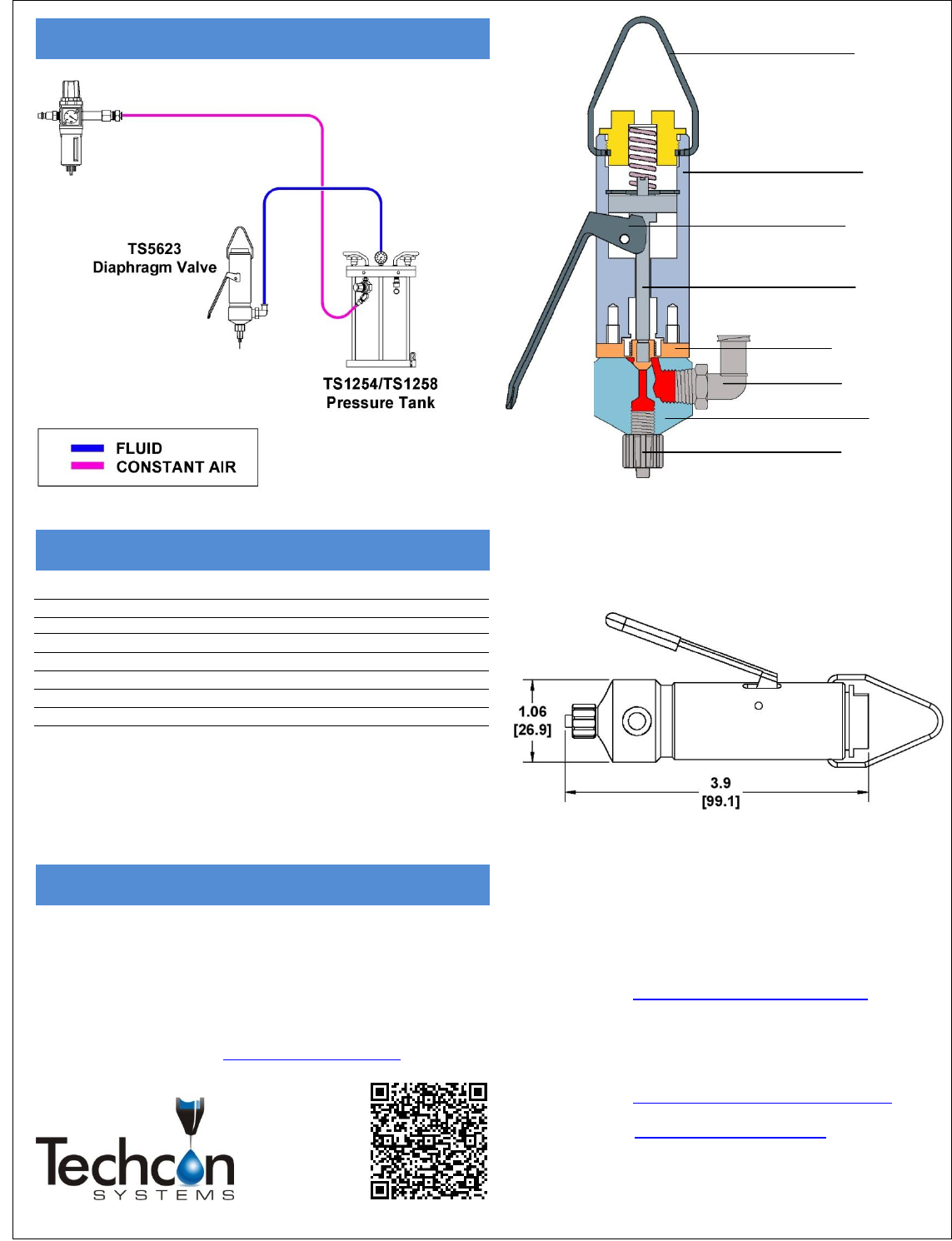

TYPICAL SETUP
WHAT’S IN THE BOX?
LOCAL DISPENSING SOLUTIONS WORLDWIDE
Dimensions are in inches [mm]
Fluid reservoirs: The valve can be fed from the TS1254 or
TS1258 Pressure Tank, or from any size syringe barrel or
cartridge.
Dispensing Tips: Specially designed “TF” Teflon® lined tips
are recommended when dispensing Cyanoacrylate (CA). The
lining prevents premature cure. For the complete dispensing
tip offering please visit www.techconsystems.com .
SPECIFICATIONS & PART NUMBERS
ACCESSORIES
TYPICAL SETUP
For Sales and Support:
Techcon Systems Corporate Headquarters,
12151 Monarch Street, Garden Grove,
California, 92841, USA.
Tel: 1-714-230-2398, Fax: 1-714-230-2393
E-mail: oemorders@okinternational.com
Techcon Systems European Corporate Office,
Eagle Close, Chandler’s Ford Industrial Estate,
Eastleigh, Hampshire, SO53 4NF, UK.
Tel: +44 2380 489 100, Fax: +44 2380 489 109
E-mail: europe-orders@okinternational.com
Or visit www.techconsystems.com
Teflon® is a registered trademark of E.I. DuPont. Version 2.00
Part Number:
TS5623 Series
Size (Imperial):
3.9'' Length x 1.06''
Size (Metric):
99.1mm x 26.9mm
Weight:
See below
Fluid Inlet Port:
⅛'' NPT female
Fluid Outlet Port
Luer lock male
Max Fluid Pressure:
70 psi (4.8bar)
Viscosity Range:
1 - 50 000cps
Wetted Parts TS5623HU 0.227 lb (103g) UHMWPE
And Weight TS5623HT 0.257 lb (117g) Teflon®
TS5623HD 0.245 lb (111g) UHMWPE, Delrin®
(UHMWPE = Ultra High Molecular Weight Polyethylene)
Rear
Cylinder
Piston
Diaphragm
Fluid Inlet
Body
Luer Lock
Handle
Activation
Lever
