Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 2N1 0914BAA7 KEYBOARD 1 3091401AAB-001 2N2 0914B9A5 TRACKBALL 1 3091401AAB-002 2N3 0914BAAA USB_CABLE 2 3091401AAB-003 2N4 23N20103 TUBE_WIRING 6 3091401AAB-004 2N5 23N307…

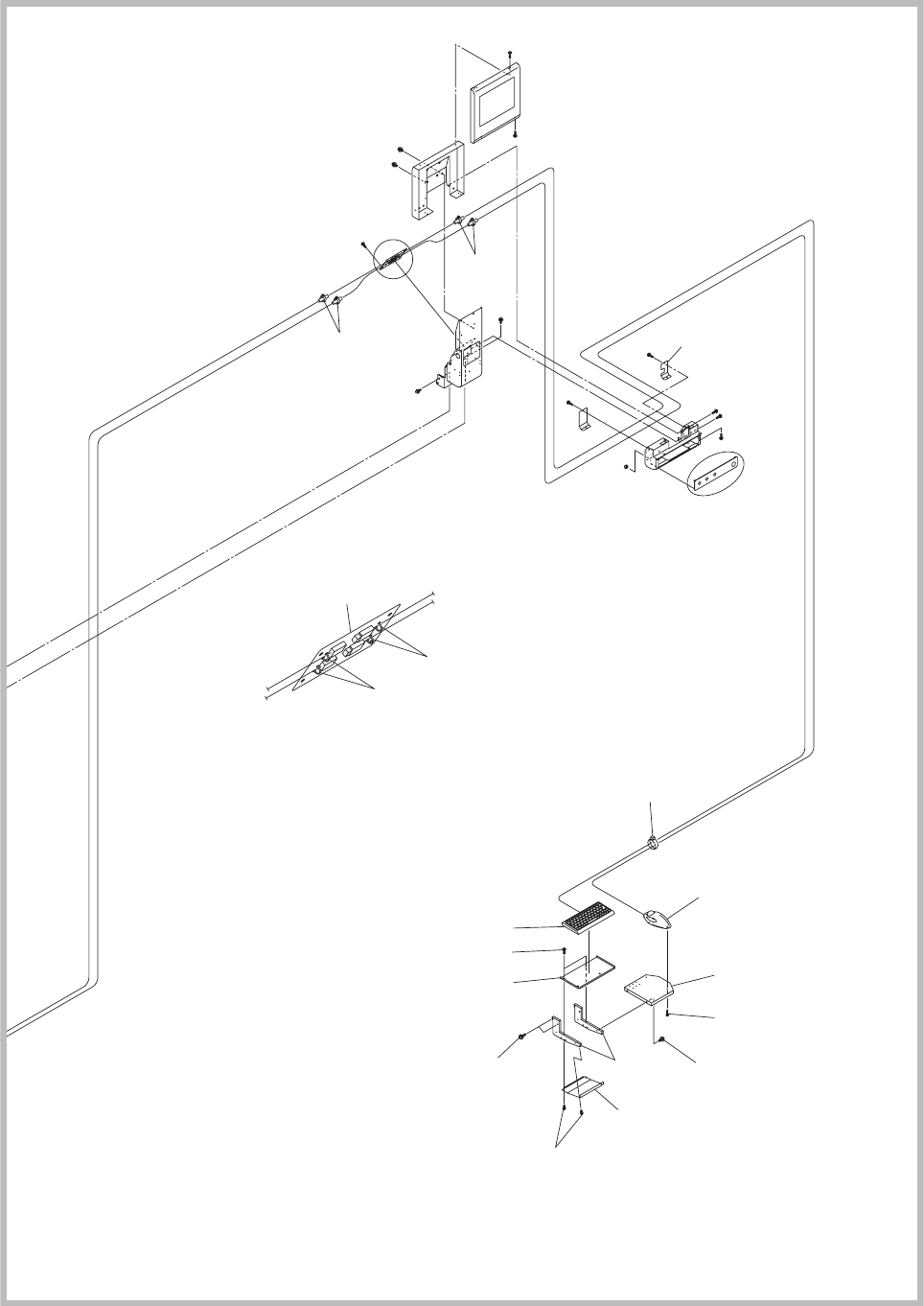

Fig. F1
1003-001
Fig. F1-3
2P1
A
2P2
2Q3
2Q1
2Q2
2Q4
B
DETAIL ”B”
2O7
2N2
2N1
2R2
2O7
2Q9
2R1
2Q6
2Q7
2Q8
2Q5
2Q7
2Q8
2N5
2N4
2N5
2N4
2R0
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
2N1 0914BAA7 KEYBOARD 1 3091401AAB-001
2N2 0914B9A5 TRACKBALL 1 3091401AAB-002
2N3 0914BAAA USB_CABLE 2 3091401AAB-003
2N4 23N20103 TUBE_WIRING 6 3091401AAB-004
2N5 23N30737 ACCESS_WIRING(M 6 3091401AAB-005
2O5 1000AM00 BOLT_HEX-SCT 1 2091401AA2-005
2O6 23N30632 WIRING 1 2091401AA2-006
2O7 23N30737 ACCESS_WIRING(M 10 2091401AA2-007
2O8 23N30738 ACCESS_WIRING(M 5 2091401AA2-008
2P1 0949A0AF COVER 1 2091401AA2-011
2P2 0914B9AF PLATE 1 2091401AA2-012
2Q1 0914B9AX BRACKET 2 30914019AY-001
2Q2 0914B9AV TRAY 1 30914019AY-002
2Q3 0914B9AU COVER 1 30914019AY-003
2Q4 0914B9AW TRAY 1 30914019AY-004
2Q5 221AA020 ROHS_HEX-SCT 4 30914019AY-005
2Q6 221AA017 ROHS_HEX-SCT 2 30914019AY-006
2Q7 221HA104 WASHER 6 30914019AY-007
2Q8 221HA004 WASHER 6 30914019AY-008
2Q9 221DA207 MACHINE_SCREW 4 30914019AY-009
2R0 221DA114 MACHINE_SCREW 4 30914019AY-010
2R1 221DA133 MACHINE_SCREW 2 30914019AY-011
2R2 23N30738 ACCESS_WIRING(M 1 30914019AY-012
GS-AK100
Fig. F1
1003-001
Fig. F1-3
